Good Quality Woodworking Machine From China TJ1212

Specifications

Multi-functional Wood CNC Machine TJ1212

ing area:1200*1200mm

2.thick whole steel structure

3.vacuum table

4.4.5KW air/water cooled spindle

5.DSP controller

1.Configurations: cnc router

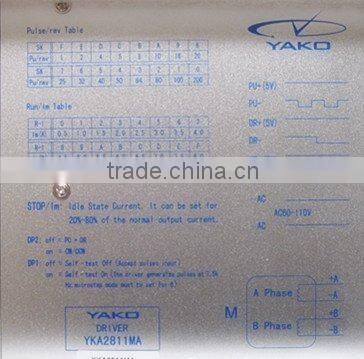

Thick Whole Steel T type structure with T type gantry, 4.5KW (imported bearing) China water cooling spindle, Type3 Software and UCANCAM Software, u flash disk DSP control system, stepper motor118, YAKO driver2811, imported Taiwan Hinwin square orbit (φ20) for three axis, gear-wheel for X and Y axis, ballscrew for Z axis, vacuum table, water cooled vacuum pump and dust extraction system with 6 zones separately control, dust extraction hood, oiling system, 10 cutters (φ6, φ12.7), 2 collets

 Optional:   Dust collector

            NC-Studio control system (original type or copy type)

            Italy HSD air cooling spindle or China made air cooling spindle

            Germany oil-free vacuum pump

            Auto tool change

2.Features:

1)  Whole machine is welded with seamless steel structure, the rigidity and stability is good, not easy to be deformed. The gantry adopts steel structure.

2)  4.5KW China water cooling spindle has high precision , long life time , steady working , easy to start up .

3)  Three axis all adopt imported Taiwan HINWIN square orbit, double slippers, imported ballcsrew and bearings, which make the machine work steadily, has heavy loading, good working stability, high precision, and long life-span of the whole machine.

4)  DSP control system with USB interface, working without connecting with computer during working and easy to control.

5)  Adopt CAD/DAM designing software, like: Type3/Artcam/Castmate/Ucancam software.

6)  Adopt high speed stepper motor and drivers, two motors for Y axis, the maximum speed is 35m/min.

7)  Oiling system is easy to operate by one key press.

8)  the separate control system makes the machine can be operated easily.

9)  Adopt top rank international vacuum absorb table surface, it is made from electric wood board with high absorb, which can absorb different materials, this material with big density (1.3-1.45g/cm), heat resisting, it can resist high temperature (115°C).

10)  This model machine has high speed, high efficiency, the maximum speed can reach to above 35meters/min, it can reach to 25 meters/min when processing wave board, it can match 4-5 common type machines.

3.Technical Parameter:

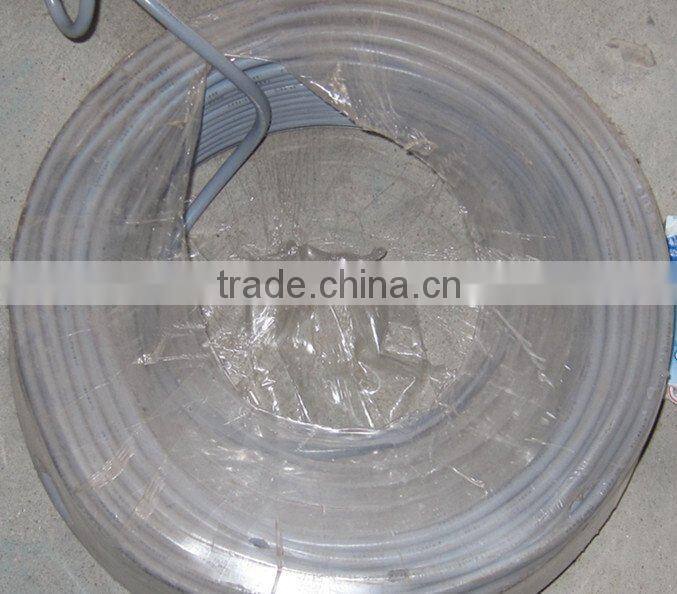

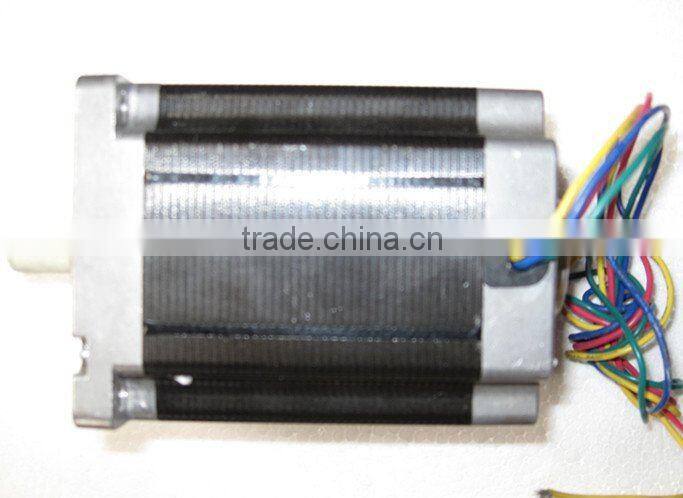

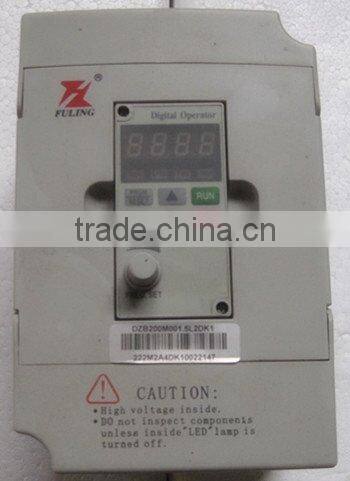

4.Spare parts:

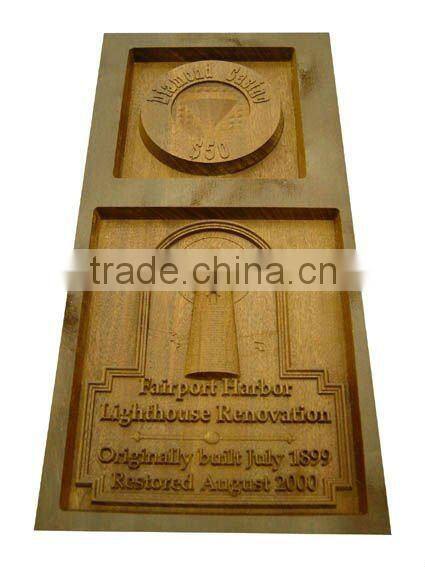

5.Samples:

6.Package: Fumigation-free wooden case
