3 axis cnc controller

FOB Price

US$ 620 - 750 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Milling Machine
Place of Origin	Shandong, China	Brand Name	NCstudio
Model Number	PM63C	Certification	CE

Product Description

Specifications

3 axis cnc controller
connect with computer

3 axis cnc controller

Introduction

Applicable to CNC routers, engraving and milling machines, glass cutting machines, waterjet

cutting machines and dispensers, etc; capable of external connection with 3 stepping or servo

motors to realize high-speed and high-precision motion control; more stable with better

anti-interference performance due to control signal adopting differential signal input output;

holding such features as lightening protection, anti-strong electromagnetic interference, stability and reliability; with power failure protection function.

With the corresponding software, such functions are available as linear interpolation, circular

interpolation, intelligent look ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.

Characterristics

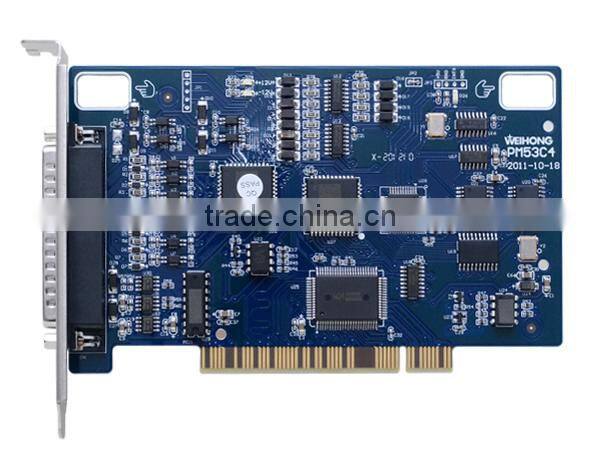

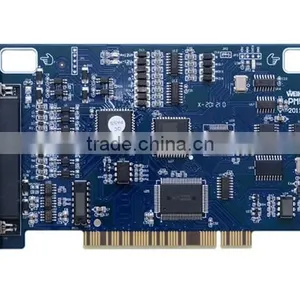

Control Card Characteristics

Model Characteristic	PM53B/53C	PM63A
Pulse Frequency	160KHz	160KHz
Max. Processing Speed	96m/s	96m/s
Control Mode Type	Position Control	Position Control
Position Signal Type	Differential Signal	Differential Signal
Control Signal Type	Pulse + Direction	Pulse + Direction
Encoder Zero Signal	/	Available
Servo Driver Enabled Signal	/	Available
Servo Driver Alarm Signal	/	Available
Number of Axes Controlled	3 Axes, 2 Synchronized Axes, 3 Synchronized Axes	3 Axes, 2 Synchronized Axes, 3 Synchronized Axes
Rotary Axis	Y as Rotary Axis	Y as Rotary Axis
PCI Slot Power Supply	Available	Available
Equipped Terminal Board	6B-EX1D7	6A-EX6B2 (Double Y Axes Waterjet Cutting) EX2A1 (Single Y Axis Waterjet Cutting) 6A-EX7A6 (Router) EX1A1 (Double Z Axes Router) EX9 (Dispenser)
Time Lock Function	Available	Available

Terminal Board Characteristics

Model Characteristic	PM53B/53C	PM63A
Model Characteristic	6B-EX1D7	EX2A3	6A-EX6B2	EX1A1	EX7A6	EX9
Pulse + Direction Interface	√	√	√	√	√	√
Start/Stop Input Point	√	√	√	√	√	√
E-stop Input Point	√	√	√	√	√	√
Mechanical Origin	√	√	√	√	√	√
Analog Output (0~10V)	√	√	√	√	√	√
Double Y Axes Drive	×	×	√	×	×	×
Double Z Axes Function	×	×	×	√	×	×
Tool Presetting Input Point	√	√	√	√	√	√
Lubrication Output	√	√	√	√	√	√
Bicolor Signal Light	√	√	×	×	×	×
Tricolor Signal Light	×	√	√	√	√	√
Cooling Output	√	√	√	×	√	√
5V DC Power Output	√	√	√	√	√	√
Spindle Alarm Input Point	×	×	×	√	√	×
Stroke Limit Point of 3 Axes	×	√	√	√	√	√
Spindle Override Signal Point	×	×	×	√	√	×
Z Axis Brake Output	×	√	√	√	√	√
I/O Terminal Board Power Supply	24V	24V	24V	24V	24V	24V
Output Mode	Optical-coupler Output	Relay Output	Relay Output	Relay Output	Relay Output	Relay Output
Input Ports	7	27	×	17	×	×
Output Ports	6	14	×	12	×	×

Configuration:

PM53C, equipped with terminal board 6B-EX1D7, is applied to CNC engraving and milling machines.

Accessories:
Connection Cables

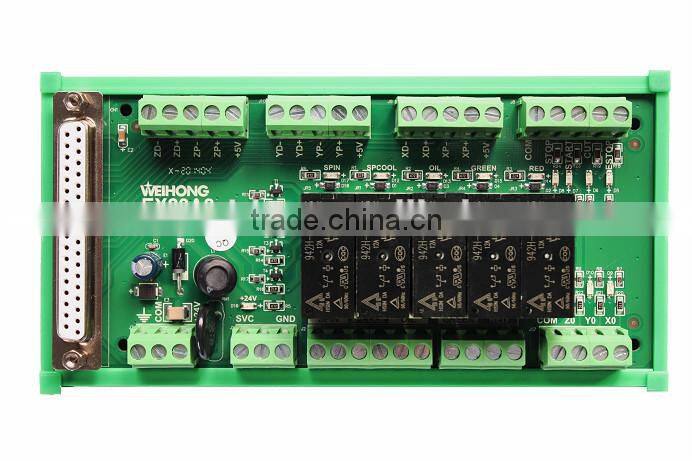

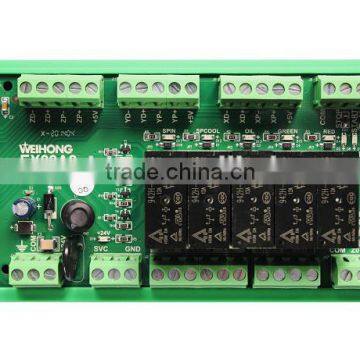

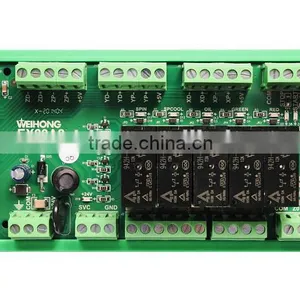

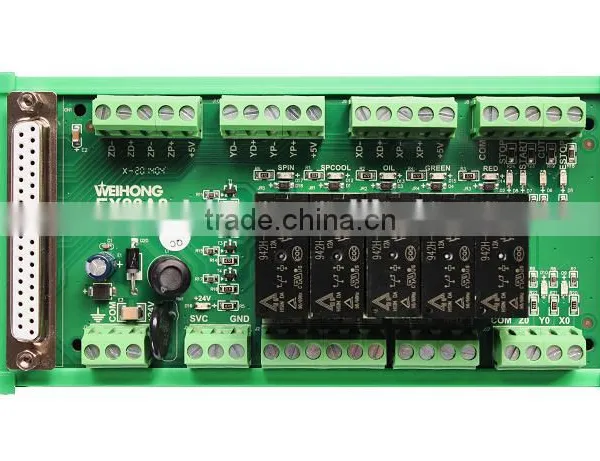

Terminal Board
