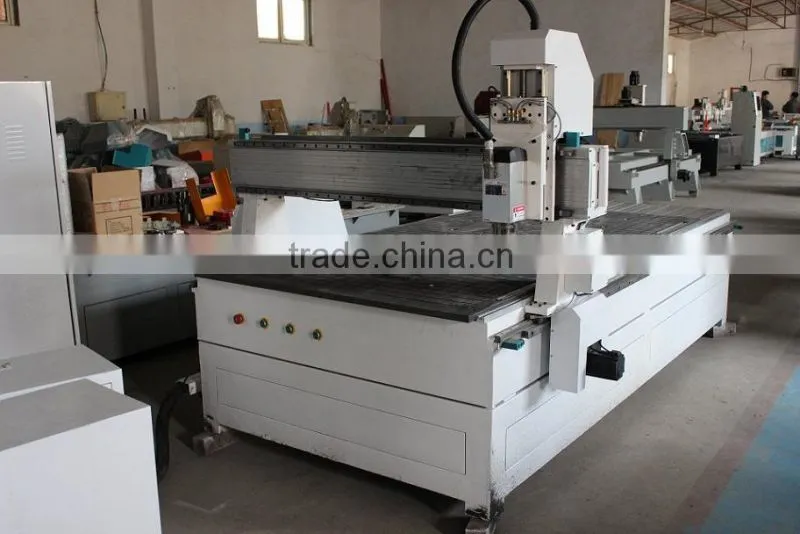

China cnc wood router with vacuum table machine
1.Application industry:
Classical mahogany furniture furniture industry, furniture decorate industry, woodworking decoration , wooden crafts, carving can be all kinds of shadow engraving, embossment, widely used in craft gifts industry
2.Products Description:
1. Machine body is industrial production model, heavy all steel welded structure, tempering aging treatment, strong Non-deformation.Durable in use.
2, Gantry mobile, guide bearing surface stability.Rack drive smoothly, ensure long time high-speed operation not deformation, not shake.
3, Adopts high speed drive and stepper motor drives, Y axis adopt double motor drive, speed can reach more than 18 meters.
4.With a vacuum cleaner, the working environment clean and tidy
5, Main configuration chooses import, joint venture brand components, stable and reliable performance
6, Have breakpoints,power failure continued carving function.
3.Technical Parameter:
| Model | TJ-1325 | |
| 1 | working area | 1300*2500*200mm |
| 2 | gantry | steel gantry |
| 3 | spindle |
3kw water cooling spindle(the spindle power is depand on the material and the thickness you want to process) |
| 4 | spindle speed | 24000r/min |
| 5 | rail | Taiwan TBI square rail |
| 6 | screw | Taiwan ball screw |
| 7 | transmission way | x/y gearwhell,z axis ballscrew |
| 8 | table structure | vacuum table or aluminum prifile table option |
| 9 | max moving speed | 32m/min |
| 10 | max working speed | 18m/min |
| 11 | control system | DSP control system or NC-studio option |
| 12 | drive motor | servo motor or stepper motor option |
| 13 | driving system | Yako 2811 driving system or Detal/panasonic driving system option |
| 14 | software | type3, ucancam v9 ,Artcam |
| 15 | working voltage | 380V 50Hz, 220V 50Hz |
| 16 | precision | +-0.05mm |
| 17 | net weight | 1500kgs |
| 18 | gross weight | 1650kgs |
| 19 | packing size | 325*205*190cm |
4.Parts detail:
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
