Product Application
A CNC router can be used in the production of many different items, such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture, and so on. In addition, the CNC router helps in the thermoforming of plastics by automating the trimming process. CNC routers can help ensure part repeatability and sufficient factory output.
Main Features
1) working area 1300x2500 mm , suit for most wood industry working area need
2) imported HSD 4.5KW air cooling spindle , long time use
3) whole machine structure adopt cast steel structure , more stable
4) Running in a high automatization and intellectualization,no pollution
Machine Parts
Name: 4.5KW air cooling spindle
Brand: HSD
Original: Italy
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right
Main Features
Name: DSP controller
Brand: Rich Auto
Original: China
CPU DSP
Internal Memory 512MB
Display Screen 128*64 Monochrome LCD
Communication Port U disk、USB cable
Controlled Axis Number 3 axes
Machine Parts
Name: inverter
Brand: Fuling
Original: China
◆ Input voltage：1AC220V±15% 3AC220V±15% 3AC380V±15%
◆Power range：220V level：0.5kW~90kW, 380V level: 0.75Kw~800Kw
◆Output frequency range：0~300Hz
◆Input frequency：47~63Hz，power factor≥95%
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

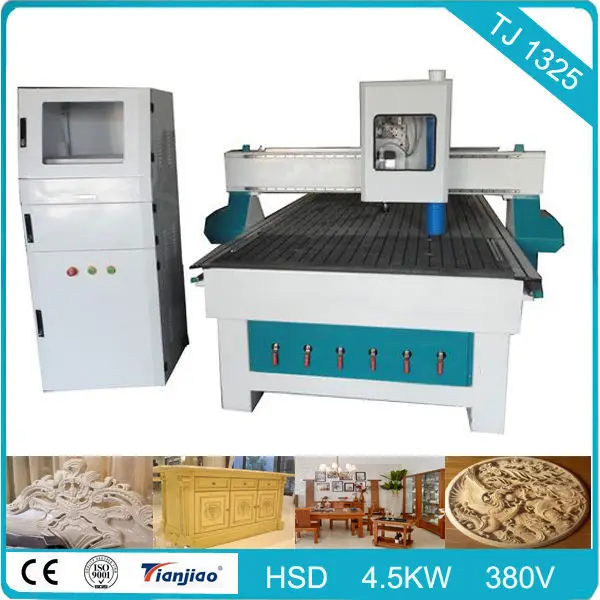

TJ 1325
91.8% Response Rate

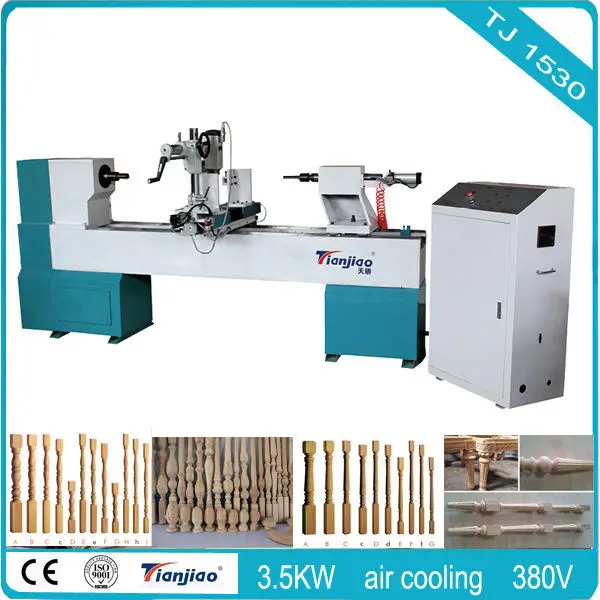

TJ 1530 with spindle
91.8% Response Rate

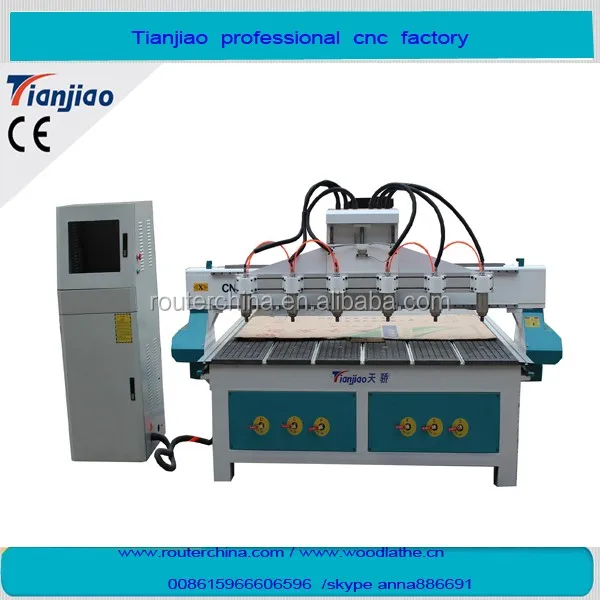

TJ 2530 multi spindle
