Hot sale ! China jinan CNC wood router 1325 independent two spindle
1. Main features:
1. Helical Racks and pinion:Compared with straight racks, helical racks run quieter , especially at high speeds, and increase higher load carrying capacity
2 Top brand guide rail from the world, HIWIN /PMI 20mm guide rail, with dust proof function and free of lubrication lifetime.
3 Delta or YASKAWA servo motors, high accuacry, long working life.
4 Taiwan Syntec control system with friendly operation interface, easy to learn.
5 Imported high precision ball screw with big lead.
6 T-slot table could use both vauum pump and clamps.
7 vacuum pump with big suction performance.
8 Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.

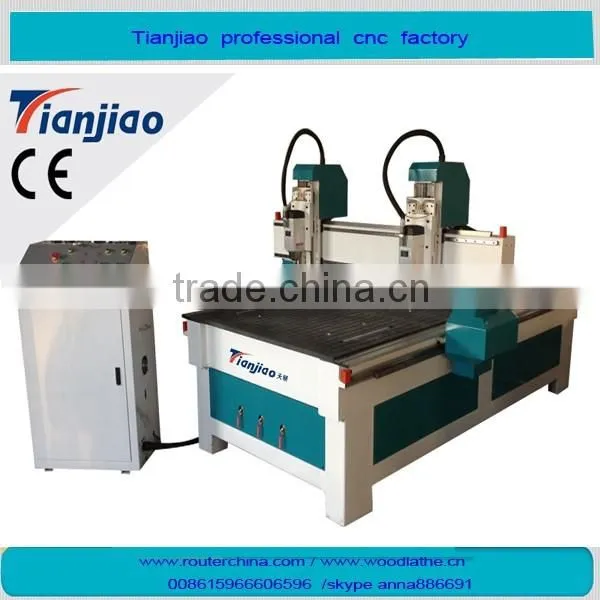

2. Picture of wood cnc router
3.Technical parameter
CNC Wood Router |
|
|
Configuration |
Parameter |
Option |
Model |
TJ 1325 |
6090/1212/1224/1390/2464/2475 etc. |
Working area |
1300*2500*200mm |
1300*2500*300 |
Spindle |
4.5KW |
6KW/9KW for option |
Lathe bed |
T slot heavy profile steel& Vacuum adsorption |
|
X-Y-Z Structure: |
X/Y axis:Rack and Pinion Z axis: Taiwan Ball screw |
|
Control system |
DSP |
NC-Studio,Mach3,Syntec for choose |
Cooling system |
Italy HSD Air cooling |
Domastic water cooling |
Cutting speed |
32000mm/min |
According to the material |
Engraving speed |
25000mm/min |
|
Rail |
Taiwan HIWIN/PMI square linear guide rail |
|
Drive motor |
japan servo motor /Step motor |
yaskawa /Leadshine860 /yako2811 |
Spindle speed |
0-18000rpm/min |
|
Software |
Type3/Artcam/Wentai/Ucancam/ |
|
Dust Collector Power |
3KW |
|
Vacuum pum |
5.5KW |
|
Inverter |
Delta inverter(5.5KW) |
FULING OR SIFANG |
Command |
G code |
|
Repositioning Accuracy |
0.05mm |
|
Voltage |
AC380V/3PH/50Hz |
|
Running Environment |
Temperature:0-45°C Humidity:5%-95% |
|
4.Suitable Materials and Industrial Applications
Furniture,Wood Products Processing,Musical Instrument Industry,Artwork,Electronic Industry

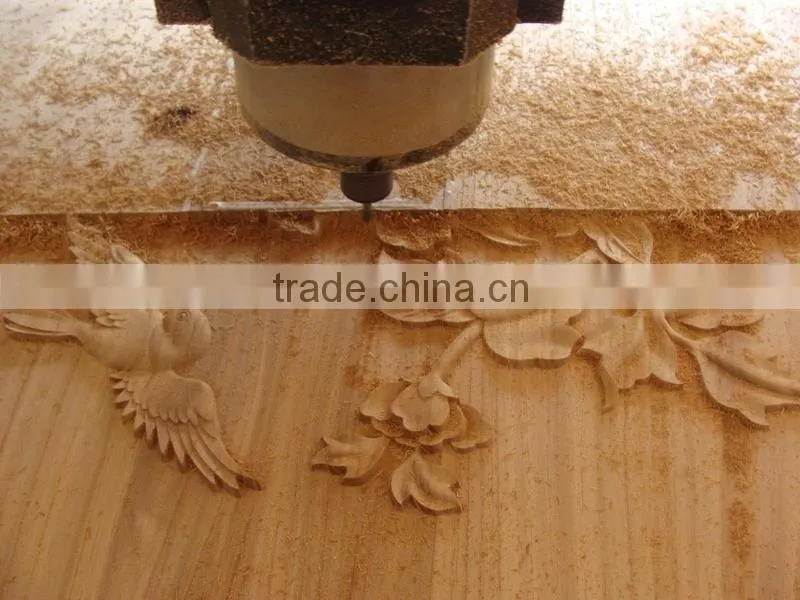

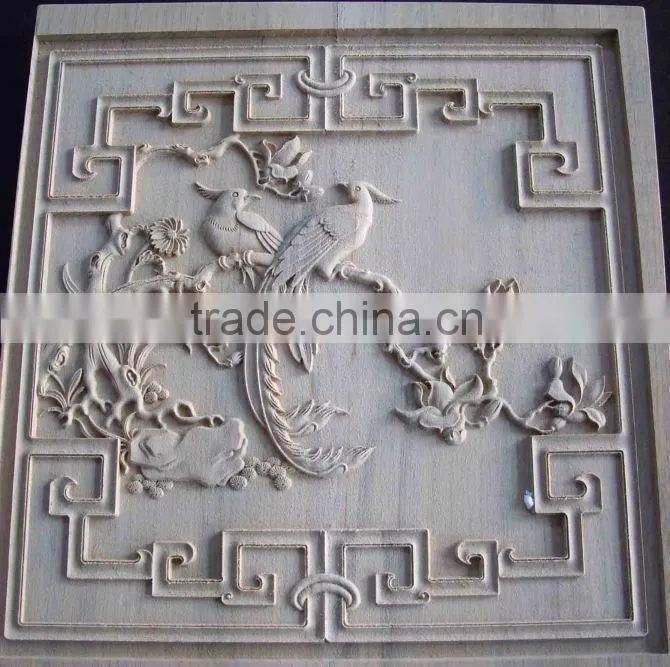

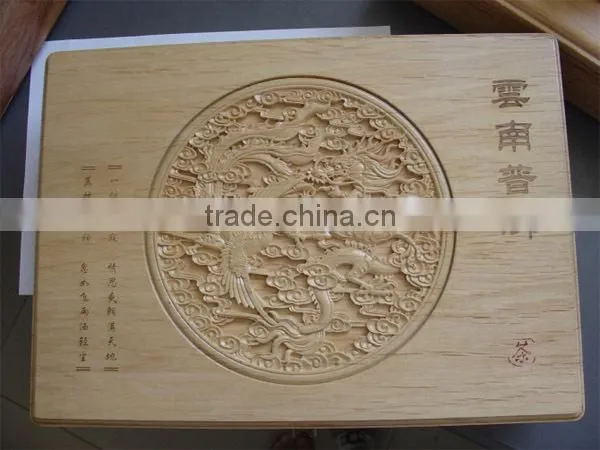

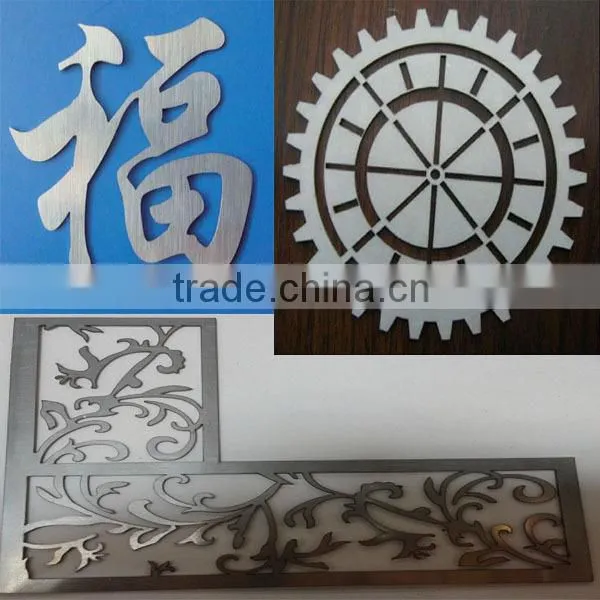

5.Sample Processing Show

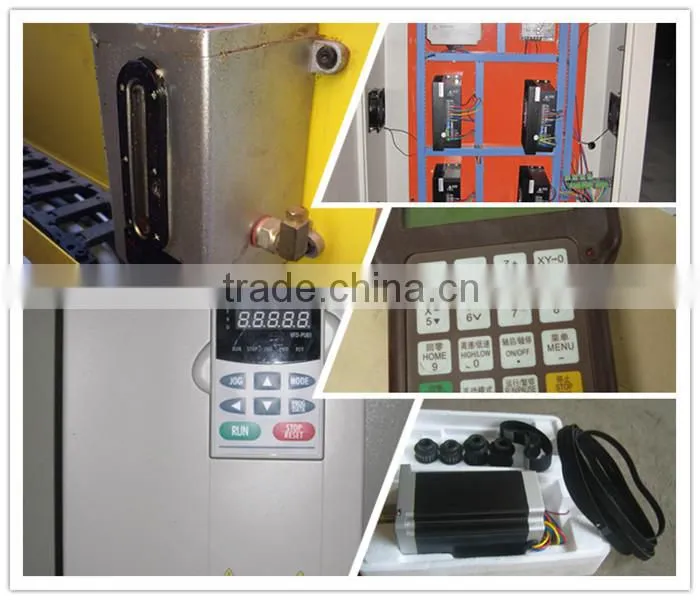

6 Main parts
7. Quality control
we pay more attention to all parts of all of machine producing .and every parts have remarks by everyone especially it will be test many many times before factory till it work well .we also can send you test video if you like .
8. after- sale service
one year for whole machine except for the cutter
24hours on line by phone or email
calling or door- door servic
