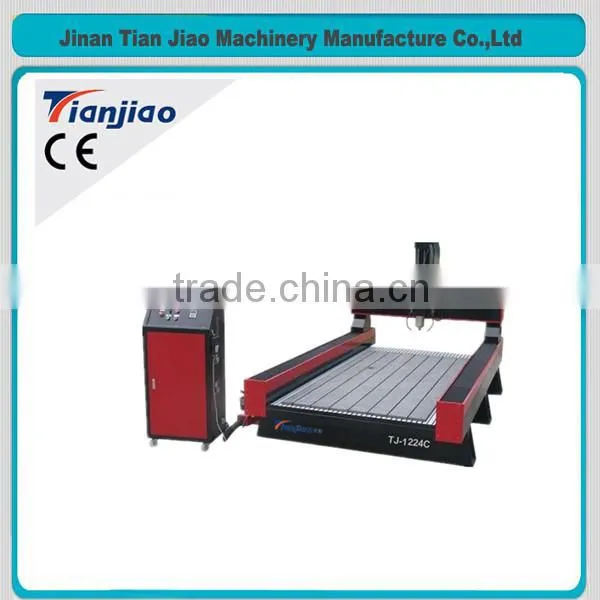

Stone engraving machine
1.Features:
1,X,Y,Z three-axis all the imported square orbits, heavy loading, stable working, long lifetime.
2,X,Y,Z three-axis all have the waterproof, dustproof system, can prolong the life time of orbit and balls crew.
3,Water cooling constant torque spindle with the imported bearings, high power and low noise.
4,Well compatibility, compatible with Type3/Artcam//Castmate/Wentai and many other software.
5,Double direction cutters cooling system can prolong the lifetime of cutters.
6,Full shielded, high flexility, uneasy distorted cable and imported electronic components the components guarantee the stability of operating the machines.
7,The transducer with stable output signals
8,Fully shield, bending circuitry, and imported electronic components
9, Adopt imported ballscrew
This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, glass engraving, metals engraving and so on.
2.Technical Parameter:
Performance parameter |
TJ-1224 |
X,Y Working area |
1200mm*2400mm |
Z Working area |
>120mm |
Resolution ratio |
0.03mm |
Reposition precision |
0.02mm |
Power(not including spindle) |
800W |
Max feeding height |
120mm |
Operation code |
G CODE |
Surrounding software |
Windows98/2000/xp |
Max carving speed |
6m/min |
Max speed |
8.8m/min |
Working voltage |
AC380V/50Hz |
Spindle power |
3KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper motor |
control system |
DSP |
drive system |
Yako driving system |
| inverter | Fuling inverter |
3.Main parts:
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
