Specifications
Tombstone making machine/gravestone manufacture machine14.5kw water cooling spindle
2thick steel structure
3CE in stock

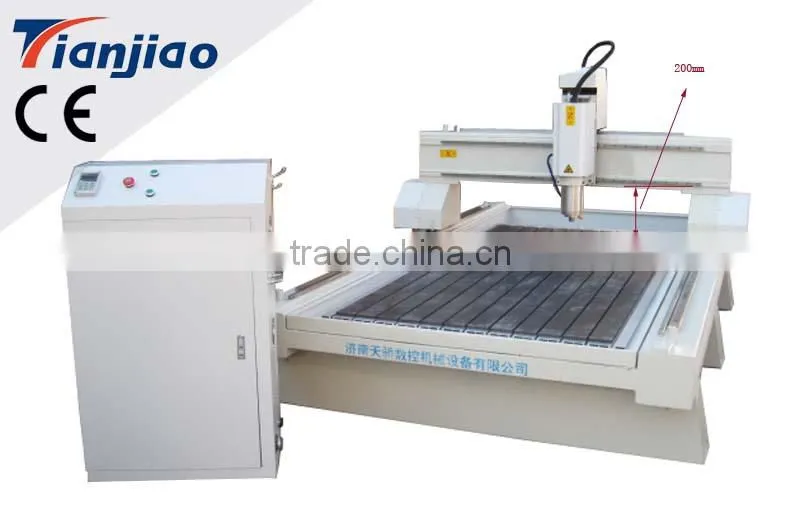

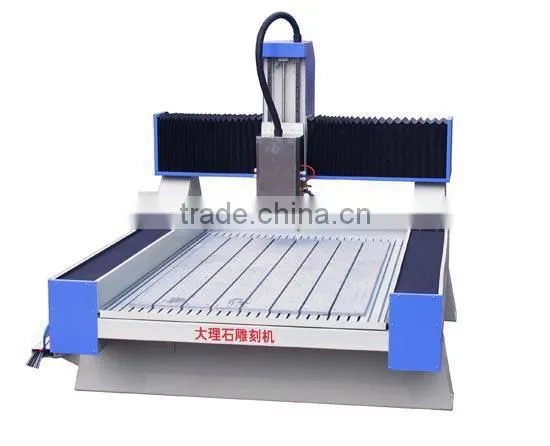

Tombstone making machine/gravestone manufacture machine

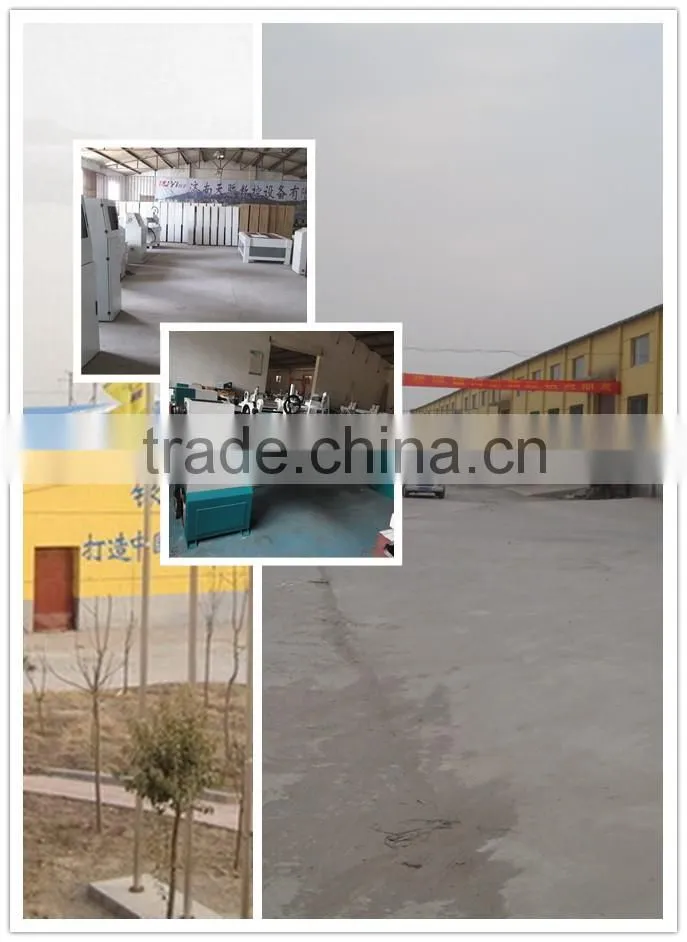

Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
1. Tombstone making machine/gravestone manufacture machine
Application
This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone, glass engraving, metals engraving and so on.
Appliable Fields:
1, stone crafts, make relief, scrupture, big statue, pottery and porcelain decration, etc.
2. Advertising industry: Advertising signs, acrylic brands, calligraphy, 3D characters, garden or wall decoration, logo, acrylic cutting, billboard, characters cutting, plate, LED/neon channel, literal-hole cut, Lightbox mold, stamp, mould.
3, die industry: Sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, others: Large-scale relief sculpture, video carving, craft and gift, widely used for gifts.
2. Jinan supplier for stone engraving machine
Configuration
1.4.5kw water cooling spindle
2.stepper motor 118
3. Taiwan Yako driver 2811
4.the whole steel structure
5.all axises imported Taiwan Hiwin Linear square orbit .
6.ballscrew transimssion
7.Original TYPE3 UCANCAM software
8.DSP Control system (NC studio control system)
3. Jinan supplier for stone engraving machine
Features
1.X,Y, Z three-axises all use imported square orbits .heavy loading, stable working, high precision and long lifetime .
2.It also equips with water groove and dustproof structure.It can protect the machine and make it long operating life
3.Water cooling constant torque spindle with the imported bearings, high power and low noise.
4.The transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg/
8.Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,UCANCAM ,Coredraw
4. Tombstone making machine/gravestone manufacture machine
Parameters
Performance parameter |
TJ1224 |
X,Y Working area |
1200mmx2400mm |
Z Working area |
250mm |
Table size |
1400mmx2900mm |
Processing precision |
0.03mm |
Reposition precision |
0.02mm |
Table structure |
aluminium |
X,Y,Z structure |
X,Y,Z ballscrew |
Command |
G CODE |
Machine power |
2KW |
Max processing speed |
6000mm/min |
Max speed |
8000mm/min |
Working voltage |
AC380V/50Hz |
Spindle power |
4.5KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper |
Operation system |
DSP control system |
5. Jinan supplier for stone engraving machine
Parts
Inventer
4.5 kw water cooling spindle

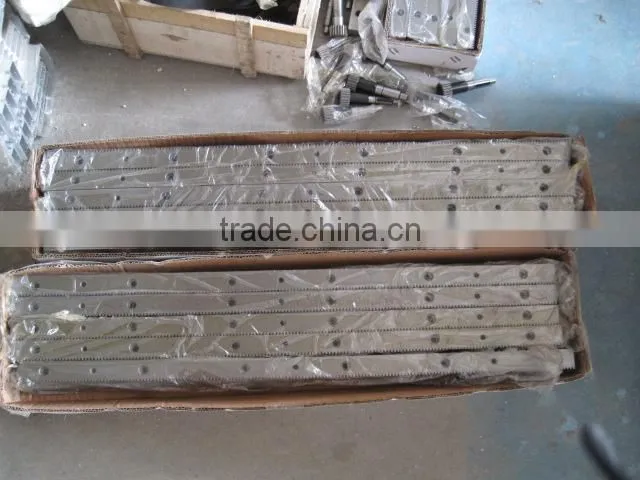

Helical gear
PMI square orbit and pinion
DSP controller
Drag chain
wirings in control box
6. Tombstone making machine/gravestone manufacture machine
Samples
