Specifications
China jinan balsalt multi heads stone core engraving machine stone cnc router1 4.5kw water cooled spindle
2.cheap price

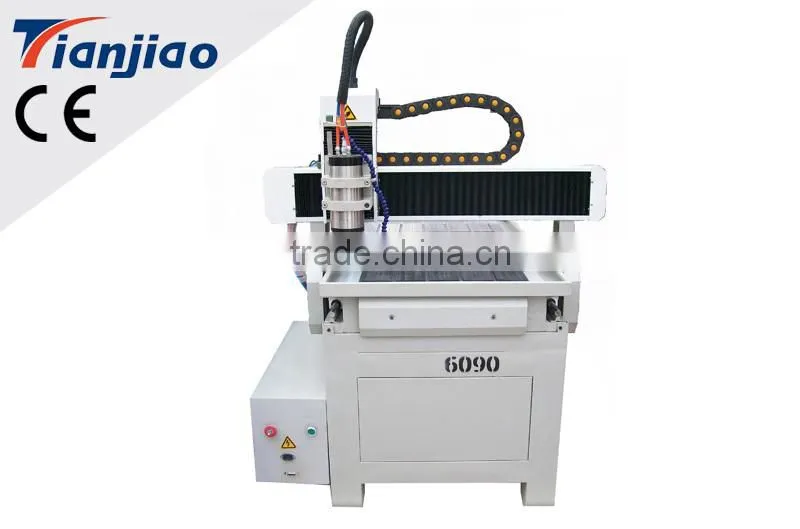

China jinan balsalt multi heads stone core engraving machine stone cnc router
Skype :anna886691
Tel :8615966606596
1. Main features:
1. Helical Racks and pinion
2 Top brand guide rail from the world, HIWIN /PMI 20mm guide rail, with dust proof function and free of lubrication lifetime.
3Taiwan Syntec control system with friendly operation interface, easy to learn.
4 Imported high precision ball screw with big lead.
5 Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.
2.Technical parameter
Description |
TJ1212 |
TJ1218 |
TJ1224 |
X,Y working area |
1200×1200mm |
1200×1800mm |
1200x2400mm |
Z working area |
>100mm |
>100mm |
>100mm |
Table Size |
1300×1420mm |
1300×2020mm |
1300x2680mm |
Max. Speed |
5m-6m/min |
6m-7m/min |
6m-7m/min |
Max. working speed |
2m-3m/min |
3m-3.5m/min |
3m-4.5m/min |
Max. feeding height |
110mm |
110mm |
110mm |
Working delicacy |
0.03mm |
0.03mm |
0.03mm |
Repositioning accuracy |
0.02mm |
0.02mm |
0.02mm |
Command |
G code*.u00*.mmg*.plt |
G code*.u00*.mmg*.plt |
G code*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
windows98/2000/xp |
windows98/2000/xp |
Power (spindle is not included) |
400W |
450W |
550W |
Working voltage |
AC220V/50Hz |
AC220V/50Hz |
AC220V/50Hz |
Spindle power |
1.5kw water cooling spindle |
1.5KW water cooling spindle |
1.5KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Drive motor |
Stepper |
Stepper |
Stepper |
3.Suitable Materials and Industrial Applications
Industry |
Products |
Function |
Wood Furniture making |
1)a large area flat plate engraving |
Milling Drilling Cutting Engraving Rough machining Finishing machining |
Mould making |
1)wooden mould 2)EPS/foam mould 3)Ship mould |
|
Musical Instrument |
1)instrument 3D surface engraving |
|
Stone product |
1)Marble/granite cutting/engraving 2)Stone furniture |
|
Advertising |
1)PVC cutting 2)Sign making |
4.Sample Processing Show

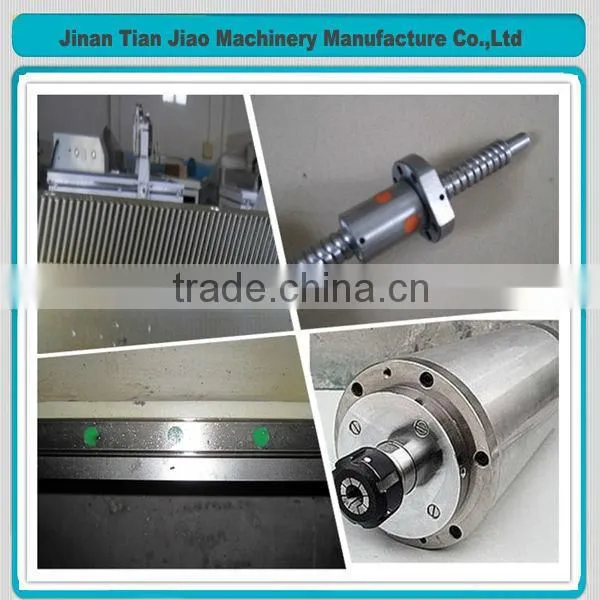

5. Main parts

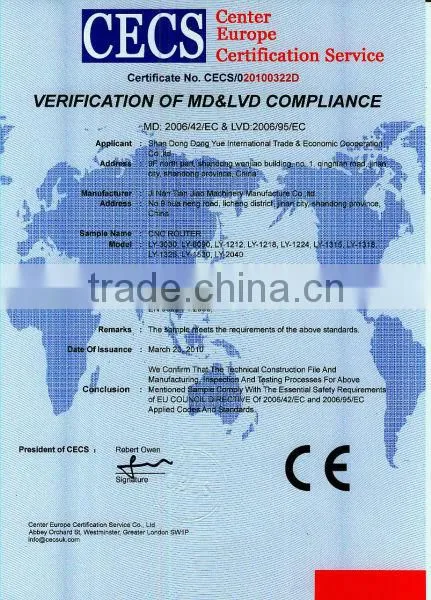

pany certificate
7.other products :
