Fast Speed Stainless Steel Plasma Cutting Machine TJ-1325

Name: Fast Speed Stainless Steel Plasma Cutting Machine TJ-1325
Brand: tianjiao
SKU: 124357895
Availability: InStock

US$ 6,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

tianjiao

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name tianjiao

Model Number TJ-1325

Rated Power 8.5KW

Certification CE/FDA

Warranty 1 YEAR

After-sales Service Provided No overseas service provided

Specifications

1.Hyptherm/Cutmaster/China made brand
2.easy-operating DSP controller
3.Working form:Untouched Arc Striking
4.free training

cnc steel cutting machine TJ-1325

Industrial plasma cutting machine:

Technical Parameters:

Power:8.5KW

Input Voltage:3-phase 380V

Cutting speed:0~8000mm/min

Cuttting thickness:0.5mm~12mm

Power frequency:50HZ

Plasma current: Hypertherm, Cutmaster (optional)

Manufacture Area:1325mm×2500mm

Document transmissing form:USBinterface

Working form:Untouched Arc Striking

Working metal sheets: stainless sheet,titanium sheet,aluminium sheet,Galvanized sheet ,etc.

Characters of equipment:

Industrial control system powerful can make many graphics cutting.
Especially suitable for advertising signs ,hard ward ,sheet metal ,decoration, etc.
Suit for:aluminum, galvanized sheet, stainless steel,iron plate, titanium sheet , etc.
With Hypertherm power from US, you could choose the different power current according to the different material.
Using Chinese leading automatically adjust the height of the technology, the auto/hand-switch may random switching, cutting speed up to 8m/min ,especially manual mode cutting thin plate speed up to 15m/min.
Rapid servo motor, foreign quadrate guide rail ,the ball screw, smoke exhaust system, impact-proof protection configuration humanized design.
equipment subject industrial design structure, adopt CNC precision cutting processing is reasonable.

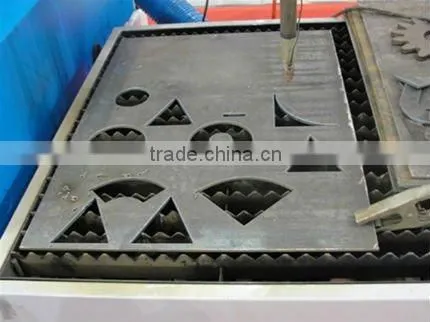

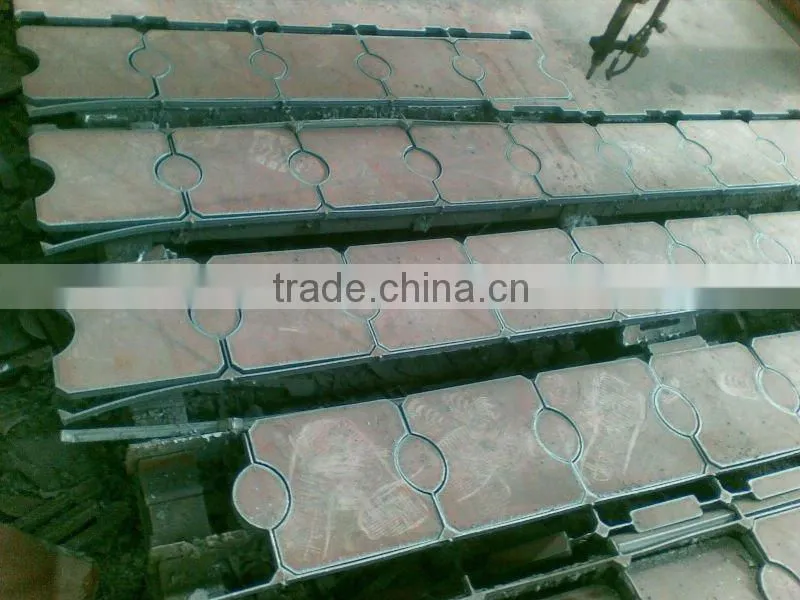

Cutting precision is high, can cut a different thickness of the plate, when cut thin plate have no drop broken bits phenomenon, won't be out of shape, when cut thick plate the incision verticality well.
