Specifications
cnc plasma cutting machine TJ15301.CE certificate
2.Beijing Start Control system
3.Hiwin square orbit
Desktop CNC plasma cutting machine/high quality cnc plasma cutting mahcine
1. Main features:
Powersupply: China domestic made power supply 200A
Control system: Beijing Start Control system
Sctucture: 3 axises Taiwan Hiwin square orbits, Gear-wheel
Software: UCANCAM software

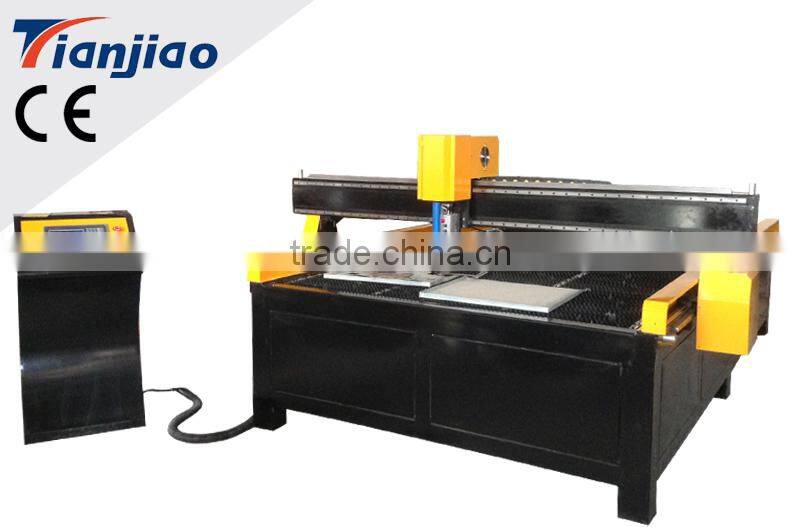

2.Machine photo
3.Configurations:
NO |
item |
quentity |
unit |
Note |
1 |
Gantry type TJ1550 |
1 |
set |
|
2 |
Driving system |
2 |
Sets |
X axis drive,Y double drive,Z axis lifting system |
3 |
Real cutting width |
1 |
mm |
1500mm |
4 |
Real cutting length |
1 |
mm |
3000mm |
5 |
Driving system |
3 |
sets |
China step motor |
6 |
Control system |
1 |
set |
Beijing Start |
7 |
RC height control system |
1 |
set |
China made |
8 |
Lifting structure |
1 |
set |
ARC height control structure |
9 |
Drving motor |
3 |
sets |
China step motor |
10 |
orbit |
2 |
set |
Taiwan Hiwin |
11 |
Slowing machine |
3 |
set |
Taiwan |
12 |
Gantry |
1 |
set |
8mm thick square pipe |
13 |
cable |
1 |
set |
High winding shielding line
|
14 |
Nest software |
1 |
set |
Austrilian Fastcam software |
15 |
Plasma powersupply |
1 |
set |
Chengdu Huayuan 200A powersupply |
4.Features and Parameters
1) Features:
Unique structure:Gantry structure, double motor driver of Y axis.
Light beam design, linear guide rail, high accuracy, stable transmission.
Untouched plasma head,small cutting edge,no cutting residue.
Water cooling system avoids the distortion of metal board.
High cutting speed, high accuracy, low cost.
Advanced numeral control system,stable performance.
Software: UCANCAM software
2)Parameters:
Working area:1500X3000mm
Cutting thickness: best cut 30mm
Cutting speed: 0-8000mm/min
Power: 5KW
Input voltage: 3-phase 380V
Frequency of power: 50Hz
Plasma Current: 40A 60A 120A 200A
Document transmission form; USB interface.
Working form: Untouched arc striking
Position precision 0.1mm
5.Main parts
Beijing Start control system Huayuan 200A power supply
control box water pump
dragchain torch
Taiwan Hiwin square orbit machine table
6.Samples
Service:
1. 24-hour online service for you
2.longlife time freely provide technical support
3.welcome to our factory,our technical staff teach you for free
Warranty:
Gurantee the whole machine for one year,offer lifelong repair,Offer 24 - hour technical support.
