ATC furniture making cnc router machine
- 150 Set / Sets per Month
- QINGDAO ; SHANGHAI ; GUANGZHOU
- T/T
You May Like
-
automatic 3d wood carving hsd spindle wood cnc router
-
3D wood cabinets furniture milling engraving atc cnc machine 1325
-
hot sale multi-spindle furniture making machine
-
CNC kit woodworking machine 2530
-
combination woodworking machines multi head cnc router
-
look for agent multi-spindle 3d cnc engraving machine TJ 2525
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Tian Jiao | |
| Model Number | TJ 1325MT-3D | Voltage | 380V | |
| Power(W) | 4.5KW x 3 | Dimension(L*W*H) | 3.1x2.2x1.7 m | |
| Weight | 1500KGS | Certification | CE | |
| Warranty | one year freely | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ATC furniture making cnc router machine

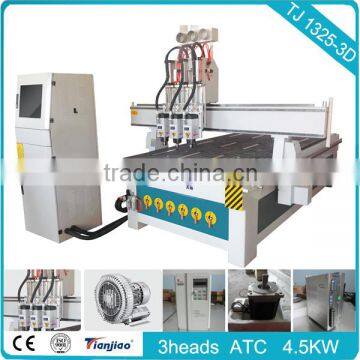

CNC router TJ 1325MT-3D with 3 pieces automatic tool change , same like atc machine . 3 pieces cutter can realiz automatic tool change . very suit for complicated wood work . like door making .
- Whole steel structure adopt 6mm steel tube .
- Imported 4.5KW air cooling spindle , 18000 rpm
- higher power 450C stepper motor or option servo motor
- Original Taiwan HIWIN square orbit 25#
- each electric wire use WEIPU to connect
Machine model | TJ 1325 MT-3D |
XY working area | 1300*2500 mm |
Z working area | 200 mm |
Table size | 3100*3100 mm |
Max. speed | 60 m/min |
Max. working speed | 30 m/min |
Working delicacy | 0.05 mm |
Table | vacuum table with suction |
Command | G code*u00* mmg*plt |
Surrounding for software | Windows98/2000/xp |
power | AC380 3 phases |
Spindle | 4.5KW air cooling atc spindle |
Speed of spindle | 0-18000 rpm/min |
Work mode | 450C motor , Y axis adopt double motor to driver |
Structure | Steel structure, square orbit |
X Y axis driver type | Helical rack&pinion |
Z axis driver type | Taiwan TBI ball screw |
Engraving software | Option |
Control software | original Ncstudio |
A wood CNC router can be used in the production of many different items, such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture, and so on. In addition, wood CNC router helps in the thermoforming of plastics by automating the trimming process. CNC routers can help ensure part repeatability and sufficient factory output
