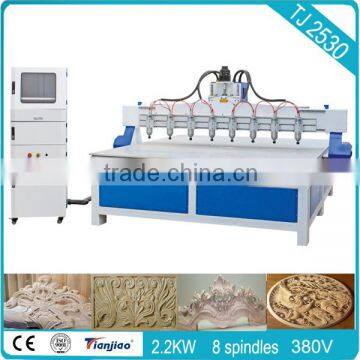

CNC kit woodworking machine 2530
mutli-spindle cnc router TJ 2525 with 8 pieces 2.2KW air cooling spindle , these spindle can work at the same time , thus one time is 8 times than single spindle . so higher working efficiency . suit for narrow wood 3d engraving decoration work .
- Whole steel structure adopt 6mm steel tube .
- Imported air cooling spindle , 18000 rpm
- Japan SERVO motor
- Original Taiwan HIWIN square orbit 20#
- each electric wire use WEIPU to connect
Machine model |
TJ 2525 |
XY working area |
2500*2500 mm |
Z working area |
200 mm |
Table size |
3100*3100 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
aluminum working table with PVC |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
2.2KW air cooling spindle X 8 |
Speed of spindle |
0-18000 rpm/min |
Work mode |
Servo motor , Y axis adopt double motor to driver |
Structure |
Steel structure, square orbit |
X Y axis driver type |
Helical rack&pinion |
Z axis driver type |
Taiwan TBI ball screw |
Engraving software |
Option |
Control software |
Original Ncstudio |
A wood CNC router can be used in the production of many different items, such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture, and so on. In addition, wood CNC router helps in the thermoforming of plastics by automating the trimming process. CNC routers can help ensure part repeatability and sufficient factory output
Application sample :
more information pls refer to :
