Multicam Aluminum Cnc Cutting Machine TJ 1325
Negotiable
/ Set
1 Set(Min. Order)
- QINGDAO ; SHANGHAI ; GUANGZHOU
- T/T Money Gram
You May Like
-
Wood Machine Atc Milling Motor Multi Use Cabinet Door Engraving Machine
-
Wood Door Carving Machine/3d Cnc Wood Design Machine Router/cnc Atc Router
-
ATC Furniture Making Cnc Router Machine
-
Automatic 3d Wood Carving Hsd Spindle Wood Cnc Router
-
3D Wood Cabinets Furniture Milling Engraving Atc Cnc Machine 1325
-
Hot Sale Multi-spindle Furniture Making Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Tian Jiao | |
| Model Number | TJ 1325 | Voltage | 380V | |
| Power(W) | 4.5KW X 2 | Dimension(L*W*H) | 3.1x1.1x1.7 m | |
| Weight | 1500KGS | Certification | CE | |
| Warranty | one year freely | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

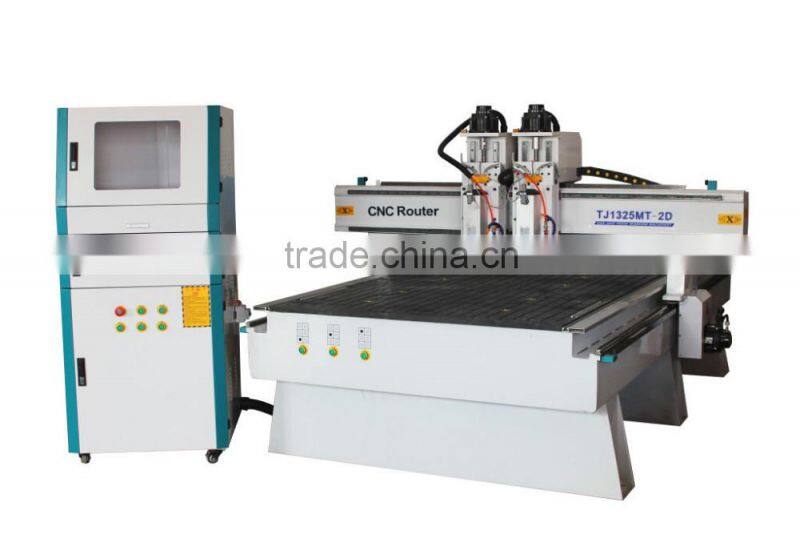

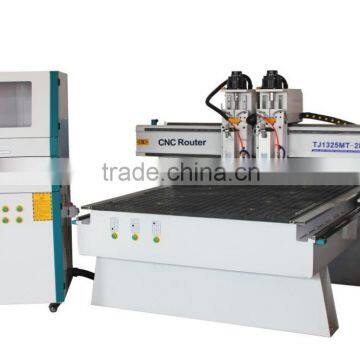

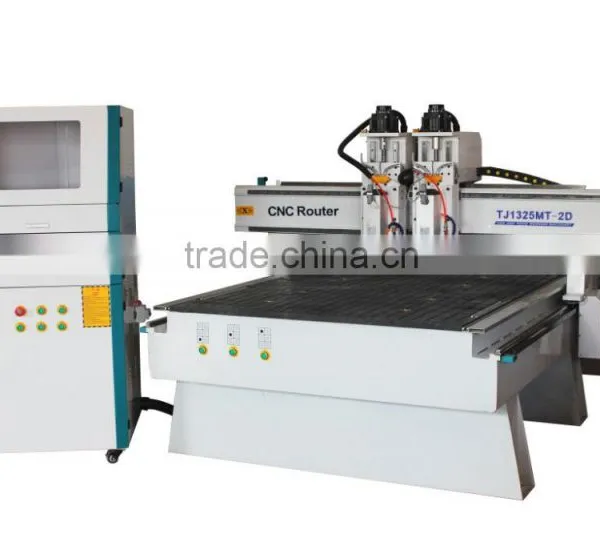

multicam aluminum cnc cutting machine TJ 1325
machine technical paraments :
this type machine is suit for aluminum plate cutting machine , thickness below 5 mm , cutting edge clear , have no burr . in machine equippment adopt constant power 4.5KW air cooling spindle , 750W YASKAWA servo motor . so machine working function is very stable .
Machine model | TJ 1325MT-2D |
XY working area | 1300*2500 mm |
Z working area | 200 mm |
Table size | 1600*3100 mm |
Max. speed | 60 m/min |
Max. working speed | 30 m/min |
Working delicacy | 0.05 mm |
Table | aluminum working table with water tank |
Command | G code*u00* mmg*plt |
Surrounding for software | Windows98/2000/xp |
power | AC380 3 phases |
Spindle | 4.5KW air cooling spindle |
Speed of spindle | 0-18000 rpm/min |
Work mode | YASKAWA servo motor , Y axis adopt double motor to driver |
Structure | Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software | Ucancam V9 |
Control software | Original Ncstudio controller |
Materials Cut
- Acrylic ACM
- Copper Brass
- Aluminum PVC
- Foam MDF
- Melamine Phenolic
- Plywood HDPE
- Solid Surface Solid Wood
