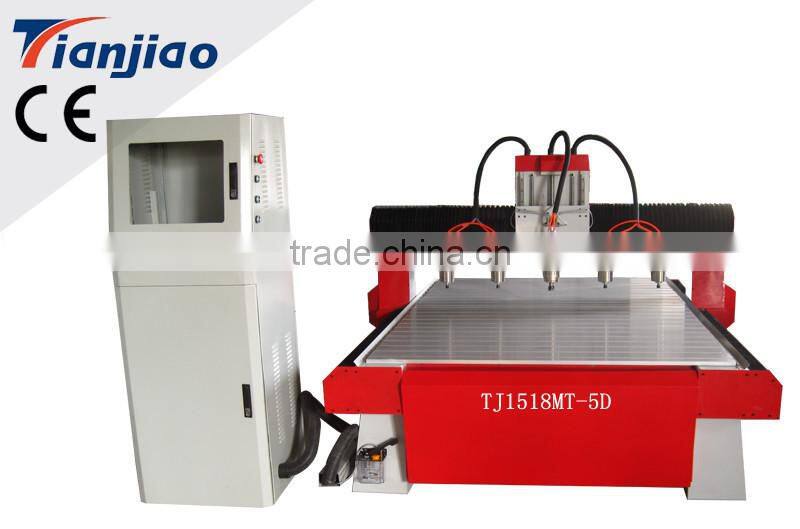

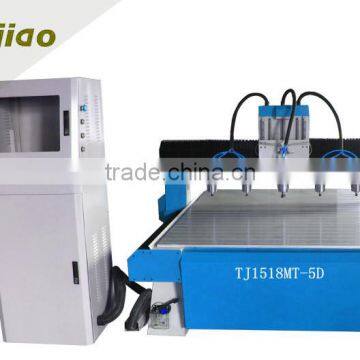

Wood CNC Router /Engraving machine TJ 1518-5D
Application:
1.Woodworking Applications: waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet, Ma-jiang Table, computer table and panel type funiture.
2.Advertising Applications: making advertising products made from Brand Board, Acrylic cutting, mould and some other
materials processing.
3.Mould Area: copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola,
sandstone, plastic board, PVC pipe, wood sheet etc.
4.Other Applications:
Art and craft fields, embossment, photo engraving and so on.
Features:
1. Whole steel structure, after high-temperature tempering, good rigidity and stability.
2. Multiple spindle, can working at the same time, high efficiency, suitable for large-scale standardization of batch processing .
3. Vertical bracket, removable gantry, imported rack gear and ball screw transmission, Taiwan
square linear orbit, can engrave 2mm-3mm little letter.
4. Adopt advanced CNC system (NC-studio or DSP control system), has break point memory mode to make sure continuous working
after electronic drop or other postpone situation.
5. Professional high flexibility anti-bending cable, the number of anti-
bending can be up to 70,000 times.
6. Automatic oil lubrication system is easy to operate by one key press, make the maintenance
operation easily.
Standard Technical parameters:
| 1 | Model | TJ 1518-5D |
| 2 | Machine Body | Whole Seamless Steel Structure |
| 3 | Work dimensions | 1500mm x 1800 mm x 110mm |
| 4 | Max. feeding height | 200mm or bigger |
| 5 | Working table | Aluminum T-slot |
| 6 | Driving mode | XY-axis rack pinion, z-axis ball screw |
| 7 | Guide way | Imported HINWIN square orbit from Taiwan |
| 8 | Transmission | X Y Rack Pinion, Z Ball Screw |
| 9 | Mechanical precision | 0.01mm |
| 10 | Repositioning Precision | 0.03mm |
| 11 | Max. Speed | 8m/min |
| 12 | Working speed | 0-6m/min |
| 13 | Driving motor | Stepper motor 450B |
| 14 | Power(spindle power is not included) | 1KW |
| 15 | Software | Type 3, Art cut, Art cam and Ucancam software |
| 16 | Surroundings for software | windows98/2000/xp |
| 17 | Voltage | AC 380/50Hz |
| 18 | Spindle | 3KW x 1 and 1.5kwx4 water-cooling spindle |
| 19 | Spindle speed | 0 - 24,000rpm/min |
| 20 | Control system | NC-Studio control system |
| 21 | Command | G code, u00, mmg, plt |

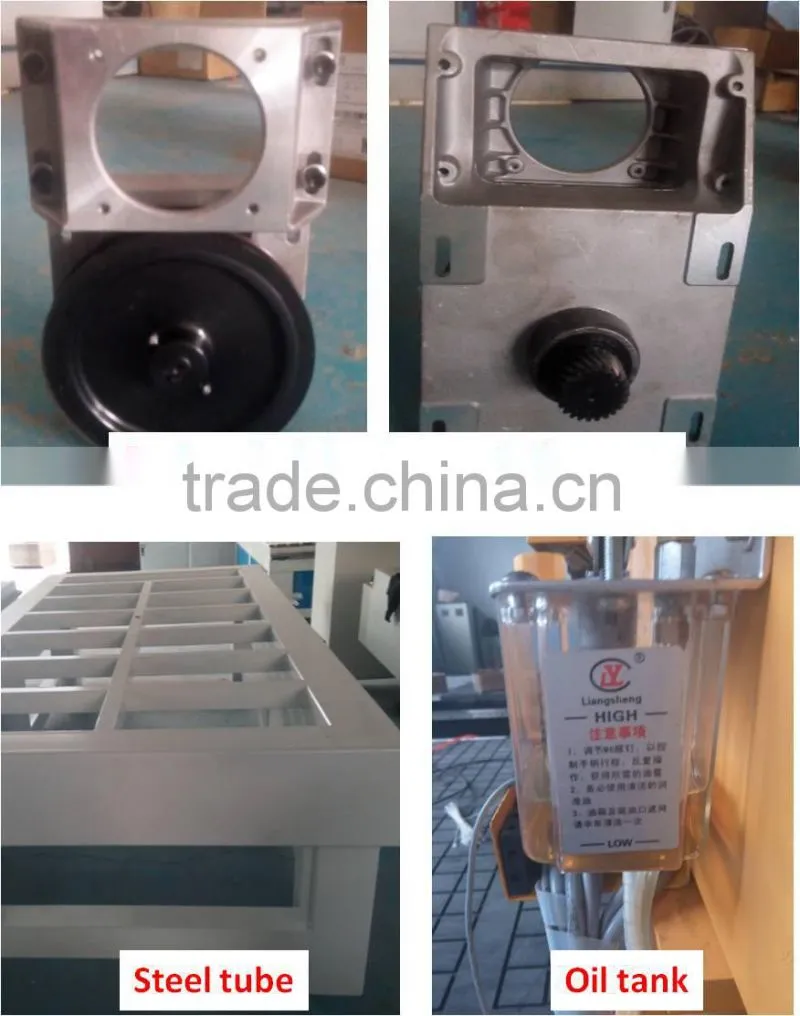

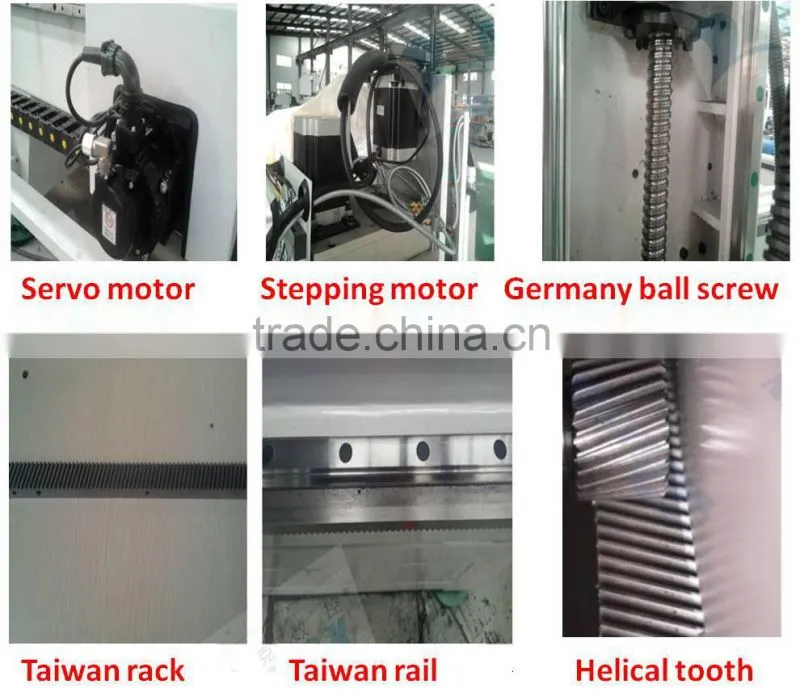

Details:

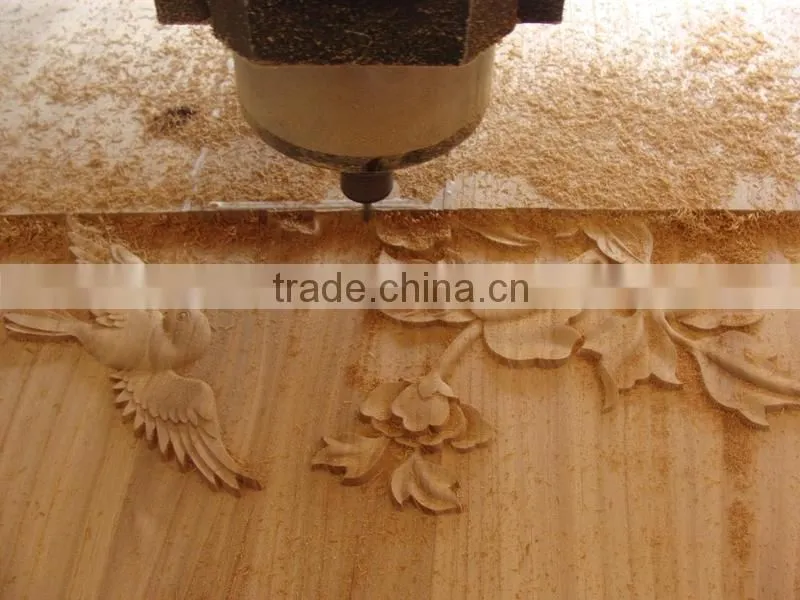

Samples
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
