Hot Sale Multi-function Metal and Nonmetal Laser Cutting Machine
US$ 4,900 - 8,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, MDF, Metal, plastic, Plexiglax, Plywood, Rubber, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hobby YAG Laser Metal Cutting Machine TJ6080US$ 1 - 39,999MOQ: 1 Set -
Hot Sale Mini Cnc Laser Engraving and Cutting MachineTJ 4030US$ 2,100 - 2,800MOQ: 1 Set
-
New High Quality Cnc Laser Engraving and Cutting Machine/laser Cutter TJ 4030US$ 2,100 - 2,800MOQ: 1 Set
-
Popular Mini Cnc Laser Engraving Machine/laser Cutter TJ 4030US$ 2,100 - 2,800MOQ: 1 Set
-
China Mini Laser Engraving and Cutting Machine/laser Cutter TJ-9060US$ 489 - 9,800MOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, MDF, Metal, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness
1.5mm for metal
Cutting Area
1300*2500mm
Cutting Speed
2500mm/min
CNC or Not
Yes
Cooling Mode
Air Cooling
Graphic Format Supported
AI, BMP, DWG, DXF, DXP
Place of Origin
Shandong, China
Brand Name
tianjiao
Model Number
TJ1325M
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Hot sale Multi-function Metal and Nonmetal laser cutting machinePanasonic servo motor
Industrial chiller
CE
instock
Hot sale Multi-function Metal and Nonmetal laser cutting machine
Introduction
TJ1325M is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
TJ1325M is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
Advantages:
High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min.
20mm acrylic with perfect cutting quality.
High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min.
20mm acrylic with perfect cutting quality.
TJ325M machine is matched with the Panasonic Servo System and high precision.
ball-screw system to ensure the high precision, running stable and long-operation.
The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality.
The laser beam is expanding, so the bigger the working area is, the more difficult the machine is to get the same cutting quality over the whole working area.
The fixed beam optical system can guarantees the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality.
High efficiency, high precision, stable performance and long life.
Low running cost about 5KVA/hour.
Features
Laser tube (150w)
High precision ball-screw system
Panasonic Servo System
Untouched following system
Fixed beam optical system
Industrial chiller
Off-computer controlling system
Application
Laser power |
150w |
|||
Material |
Acrylic |
MDF |
Stainless steel |
Carbon steel |
Cutting thickness |
30mm |
10mm |
1.5mm |
1.5mm |
150W Cutting speed
Material |
Cutting thickness |
Cutting speed (mm/min) |
|
Stainless steel |
0.5mm |
2700 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
|
Carbon steel
|
0.5mm |
3000 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
Acrylic |
10mm |
300 |
20mm |
90-120 |
|
MDF |
10mm |
300-400 |
Technology Parameter
Model |
TJ1325M |
Laser power |
150W |
Working area |
1250 × 2500 mm |
Positioning accuracy |
±0.05 mm |
Positioning speed |
20m/min |
Weight |
1000 kg |
Power supply |
220V±10%/10A |
Machine Details:

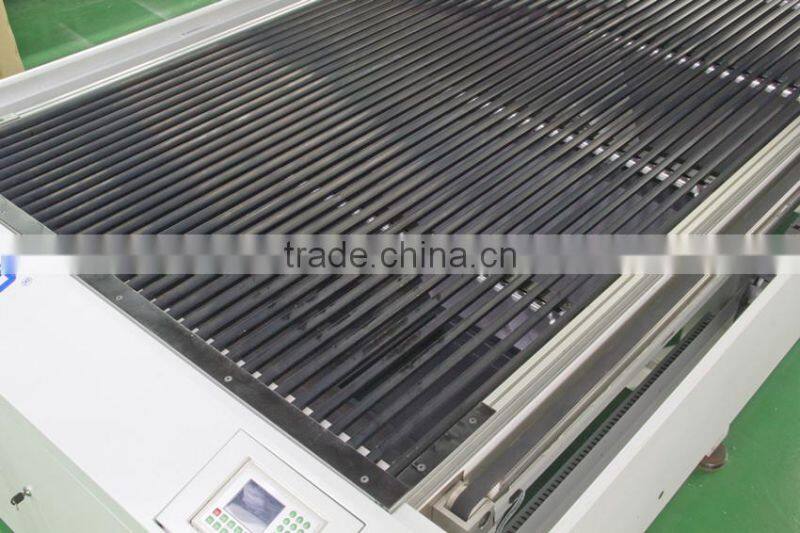

Knife table

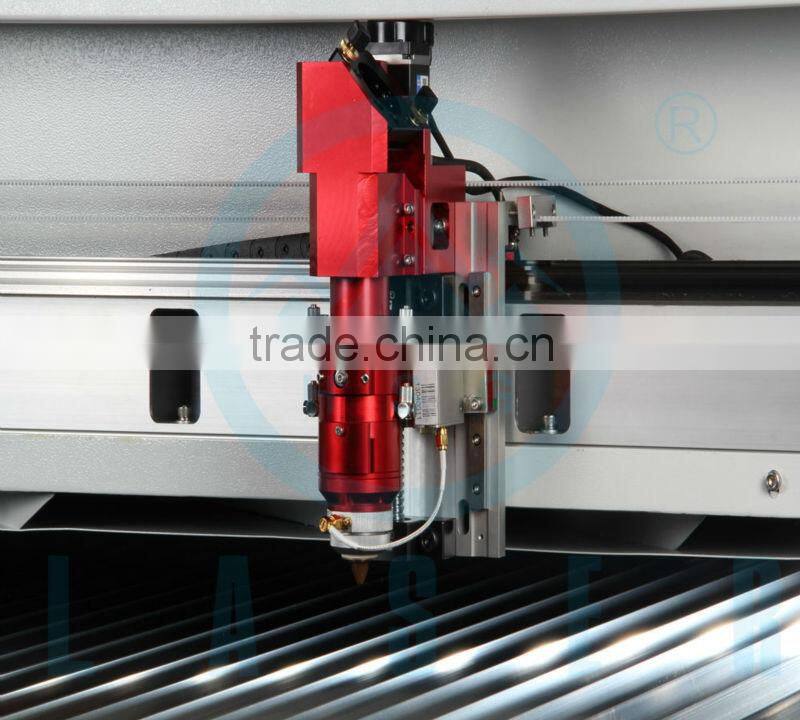

Laser head

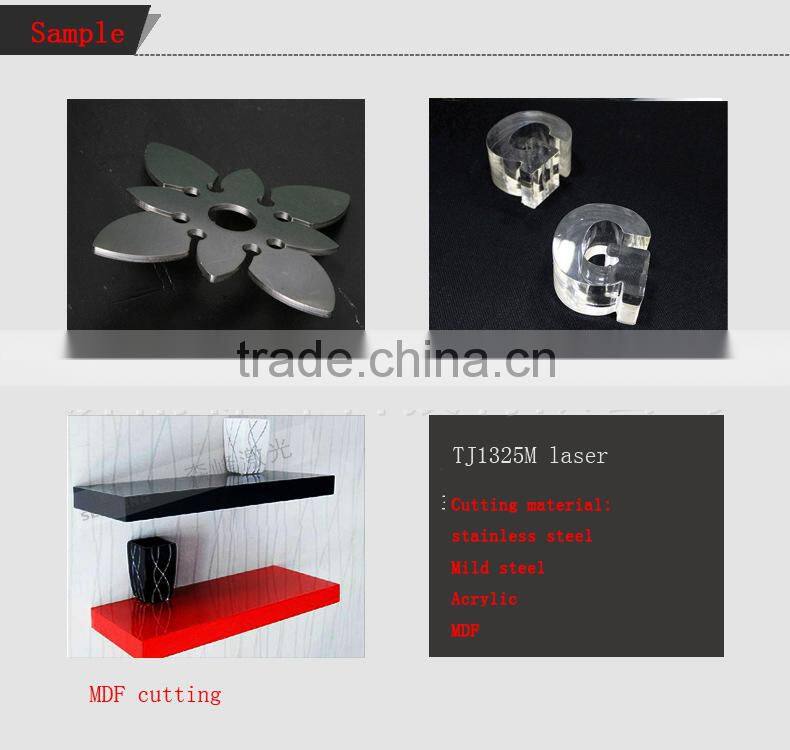

Sample
