medium size laser cutting machine for 20mm acrylic

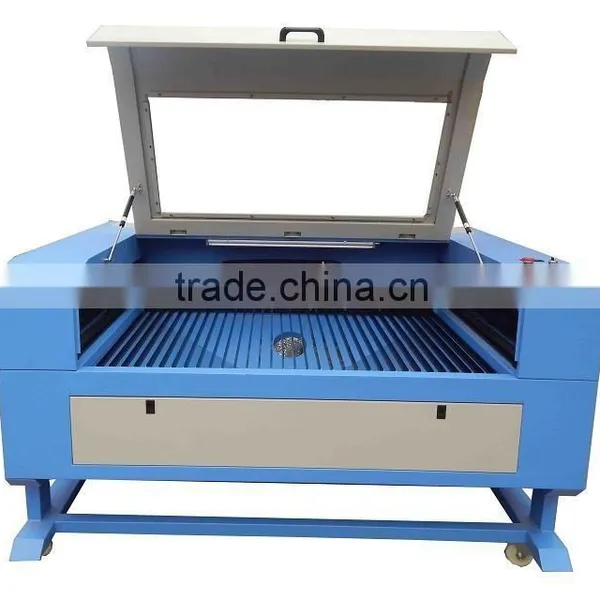

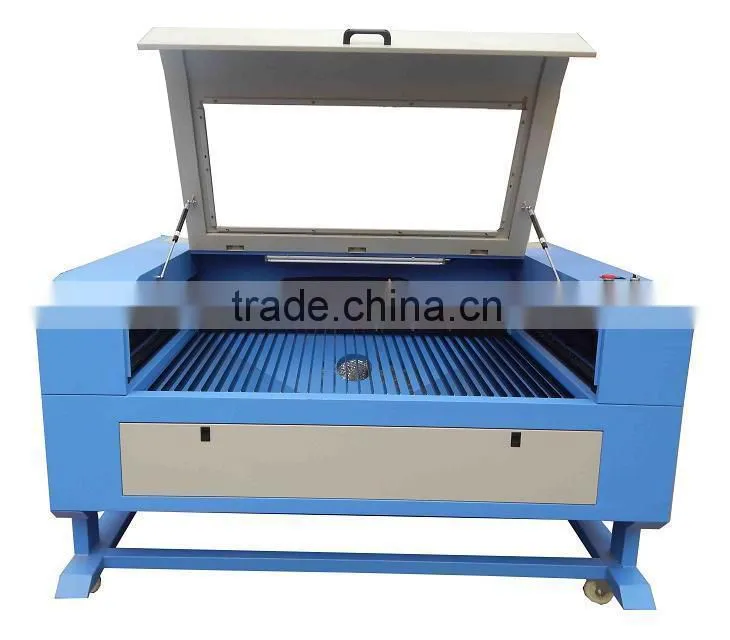

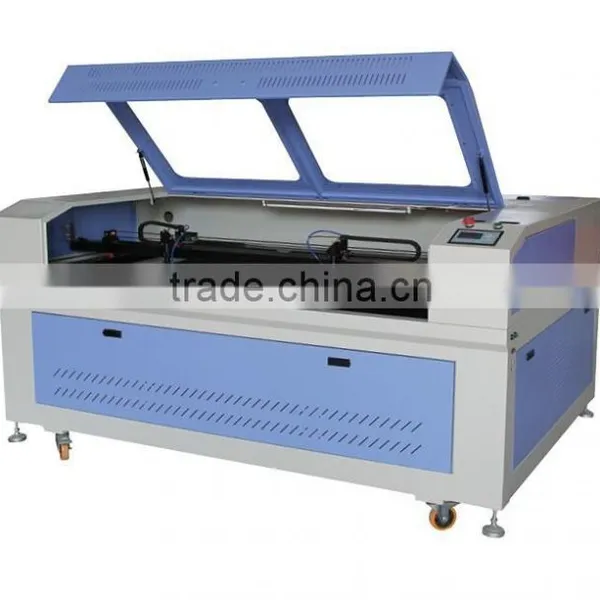

1. photos
2.Applications:
Arts and crafts, bamboo and wood products, advertisement and upholstery, cloth, leather, plate making, construction moulds Material: cloth, leather, rubber,
bamboo strip, crystal, organic glass, ceramic tile, marble, thin wood,
hardboard, bowlder, plastic and other non metal material.
3. medium size laser cutting machine for 20mm acrylic
configuration:
Item |
Data |
Note |
Laser tube power |
150w RECI *1 piece
|
good engraving and cutting profect in long time |
Working area |
1300*900mm |
|
Motor Drive |
stepper |
|
Speed control |
0-100% stepless control, |
can setup different powers according to different colors |
Max. speed |
1000MM/S |
|
Software |
WENTAI, CORELDRAW, PHOTOSHOP, CAD |
|
Laser tube cooling |
CW5000 chiller |
|
Min character |
Chinese: 2mm Letter:1mm |
|
Repositioning accuracy |
±0.01mm |
|
Power supply |
AC200V±10%50HZ |
|
Total power |
:<1000W |
|
Working temperature |
0-45 degree |
|
Working humidity |
5%-95%(without condensed water) |
|
Figure form |
BMP, PLT, DXF, DST,AI |
|
size |
255*193*130cm |
|
weight |
500kgs |
|
4. medium size laser cutting machine for 20mm acrylic
parts:
cooler CW5000 air pump blower control box
RECI laser tube software filter pipe
Optionals:
knife table or both auto moving table autolifting table rotary
5.sample
engrave on bamboo

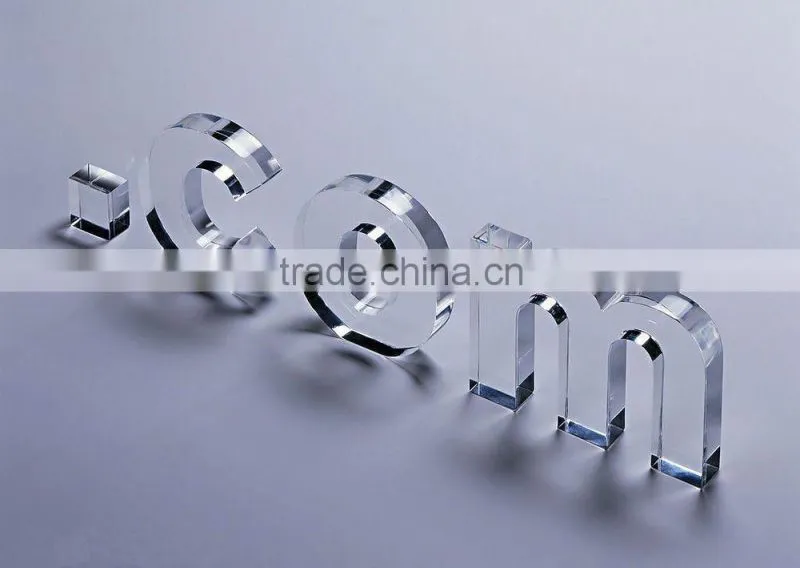

cut acrylic
6. service
One year free gurantee for the whole machine , lifelong technology support.
Customer response service time within 12 hours.
After gurantee term, we continue supply life-long maintenance services.
After gurantee term,still to provide a wide range of software and hardware support,enjoy
free lifelong upgrades . And supply the parts at agent price .
7. Questions:
Can I engrave all types of wood?
The laser works extremely well with all types of woods, from maple to exotic hardwoods. Each displays a different quality when engraved. While a maple
plaque may give you a lighter engraving, cherry can give you very rich, dark
colors where engraved. Trying out different woods can give you very different
effects with the same image.
What size of wood piece can I engrave?
Laser systems range in capacity from 16" x 12" (406 x 305 mm) to 40" x 28"
(1016x 711 mm). If you can fit your product in the engraving table, you can
engrave your item!
tell me your size, we can custom for you!
Is there a lot of programming involved?
Unlike CNC machines that require extensive programming, our CO2 lasers operate
more like printers. Use any graphic software you like, import your image, and
print it to the laser. It's incredibly easy to set up any custom job in minutes.
which model RECI laser tube use in this machine?
Z6, The product is featured as cutting of large power rate and long service time,
which is suitable for the cutting of knife mold machine and thick acrylic sheet.
the machine operation is easy?
operating system select RDC644XG control system and software.
can be compatible with Auto CAD and Coreldraw, you can seelct Coredraw laser or AutoCAD laser to directly run from this 2 edit software, or separately edit
drawing then import into laserwork software.
RDC644XG Core Technology Development System is the latest generation of laser e
ngraving / cutting control system ,the control system has better hardware
stability,better resistance to high pressure,static interference characteristics.

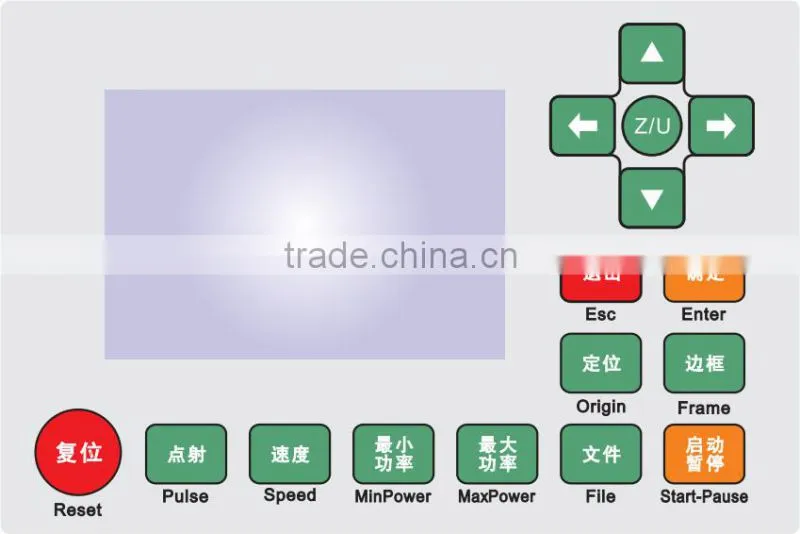

3.5-inch color screen based HMI operating system has a more friendly user interface and more powerful .
The controller includes better and more superior motion control functions ,
large file storage,compatibility stronger dual independently adjustable laser
power control interface,compatibility stronger U disk driver,multiple generic/private IO control,communication with PC supports Ethernet communications and automatic
optional USB communication and so on.
