china automatic 4th axis rotary 3d ATC wood carving cnc router 1530
working video:
https://youtu.be/v3Shj8Zi1Jk ATC
https://youtu.be/M9r2cS_d7NM 1530 Flat cutting
https://youtu.be/k6F_bmgey5M rotary carving

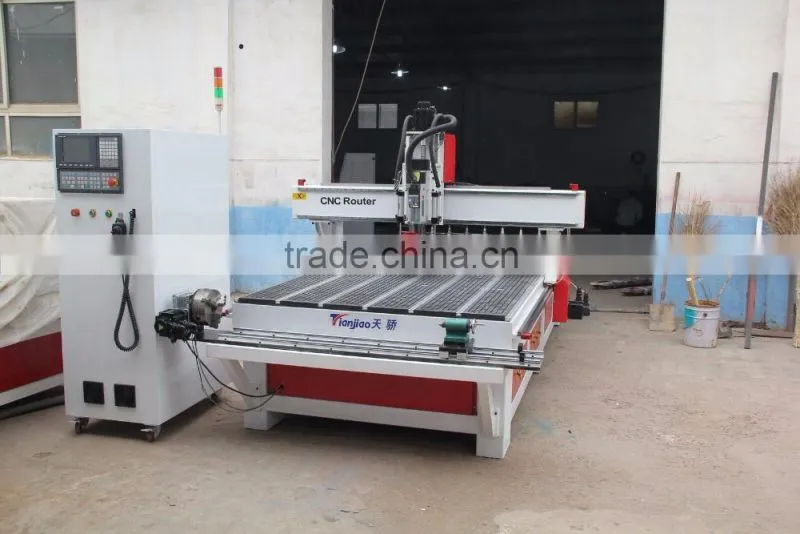

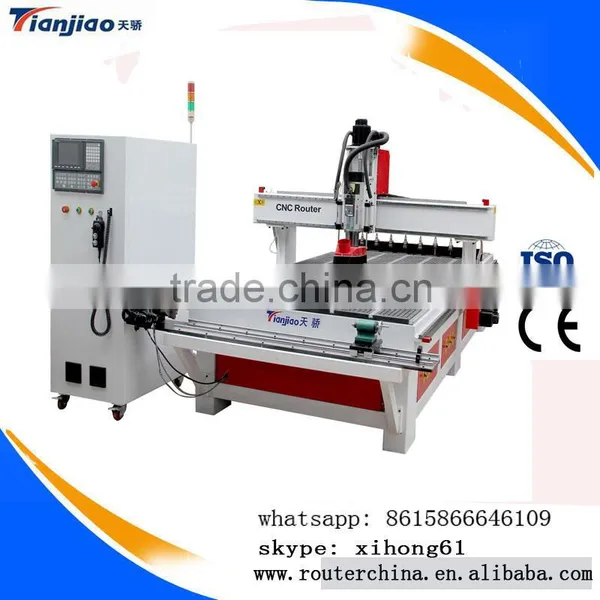

1. Picture of wood cnc router
3.Techinical paramerter:
CNC Wood Router |
|
|
Configuration |
Parameter |
Option |
Model |
TJ 1325-8 tools |
6090/1212/1224/1325 etc. |
Working area |
1500*3000*200mm |
1300*2500*300 |
Spindle |
9KW |
6KW/9KW for option |
Lathe bed |
Vacuum adsorption |
|
X-Y-Z Structure: |
X/Y axis:Rack and Pinion Z axis: Taiwan Ball screw |
|
Control system |
syntec |
NC-Studio,Mach3,Syntec for choose |
Cooling system |
China air cooling spindle 9KW | Italy HSD air cooling spindle |
Cutting speed |
32000mm/min |
According to the material |
Engraving speed |
25000mm/min |
|
Rail |
Taiwan HIWIN/PMI square linear guide rail |
|
Drive motor |
China servo motor | Yaskawa servo/yoko2811 |
Spindle speed |
0-18000rpm/min |
|
Software |
Type3/Artcam/Wentai/Ucancam/ |
|
Dust Collector Power |
3kw |
|
Vacuum pum |
7.5KW |
|
Inverter |
Delta inverter |
FULING OR SIFANG |
Command |
G code |
|
Repositioning Accuracy |
0.05mm |
|
Voltage |
AC380V/3PH/50Hz |
|
Running Environment |
Temperature:0-45°C Humidity:5%-95% |
|
4.Suitable Materials and Industrial Applications
Wood Products Processing,
Musical Instrument Industry,
Artwork
Electronic Industry
5.Sample Processing Show
6 Main parts
9kw air cooling spindle syntec contro with handwheel
8 tools atc rotary
servo motor linear guide
Contact:
whatsapp: 86 15866646109
skype: xihong61
qq: 2417071086
Google+: /u/0/+IsabellaYangcncwoodlathe/posts
YouTube: /channel/UCiXcW5MGmB6-l51P8KselUQ
Twintter: /86Yang
Facebook: /isabella.yang.1690
