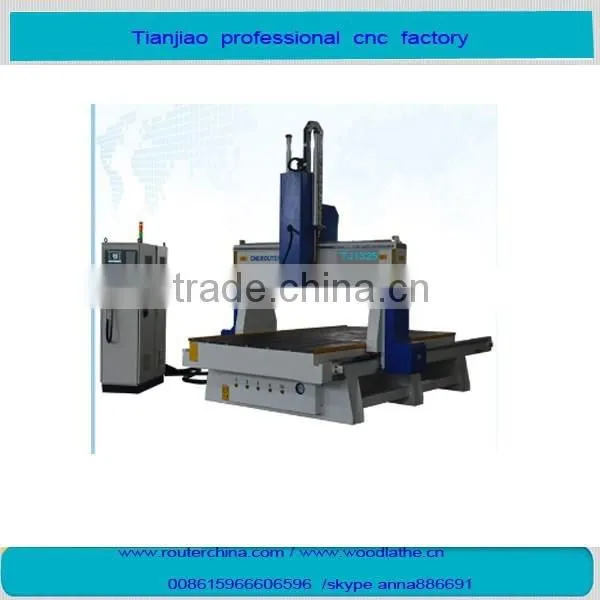

Made in China 4 Axis 3d Carving Spindle Rotary Wood Cnc Router

US$ 30,000 - 38,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name TJ

Model Number 1530

Voltage 380

Power(W) 9kw

Dimension(L*W*H) 3300*2500*1800

Weight 2300kgs

Certification ce

Warranty 2 year

After-sales Service Provided Engineers available to service machinery overseas

made in china 4 axis 3d carving spindle rotary wood cnc router

Main details

1. 9kw HSD air cooling spindle . you can choose 3/4.5/6kw the spindle can 3d drilling carving engraving .

can 90 degree rotary

2. japan yaskawa servo motor

3. syntec control systerm

4. working size we can according your requirement to make .

Number	Description	Parameter
1	X,Y,Z Working Area	1500x3000x450mm
2	Table Size	1550×3440mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
4	X,Y,Z Repositioning Accuracy:	±0.01mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings

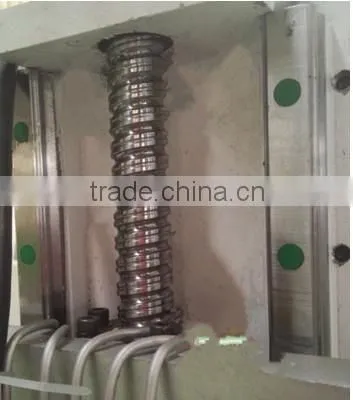

8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 4 Kw
10	Max. Rapid Travel Rate	50000mm/min
11	Max. Working Speed	40000mm/min
12	Spindle Power	3.0/4.5/6/7/9KWHSD air cooling
13	Spindle Speed	0-18000RPM
14	Drive Motors	1300W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3300X2100X2300mm
26	N.W.	2000KG
27	G.W.	2300KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle
