2015 HOT SALE HSD9kw 90 degree rotary syntec control 4 axis cnc router
Main details
T1. he spindle of the machine can be rotate for ±90 degree, can process on all kinds of curved surface, do some side work like side milling, drilling, engraving, carving and make lock slots. Widely used in European furniture industry.With HSD 9kw ATC spindle
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1500x3000x450mm |
2 |
Table Size |
1550×3440mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
4 |
X,Y,Z Repositioning Accuracy: |
±0.01mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Big Steel Tube Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4 Kw |
10 |
Max. Rapid Travel Rate |
40000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
3.0/4.5/6/7KW |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
850W Yaskawa Motors |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
512M |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300X2100X2300mm |
26 |
N.W. |
2000KG |
27 |
G.W. |
2300KG |
28 |
Optional Parts |
Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle |
2 main parts

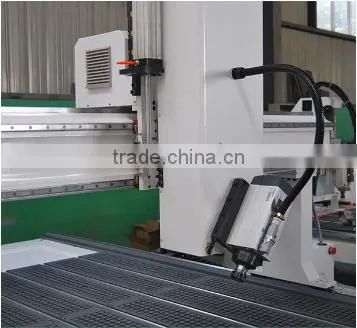

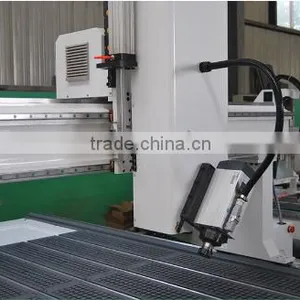

9kw HSD air cooling spindle 90 degree rotary Delta invertor
TBI ballscrew syntec control
Sample
