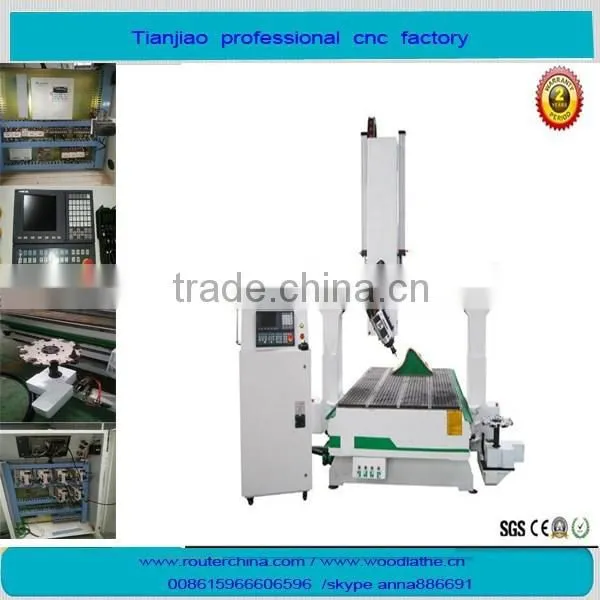

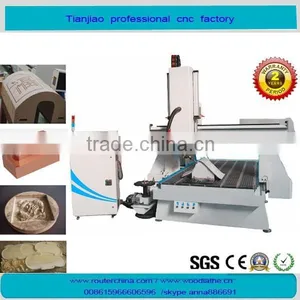

4 Axis Center HSD Spindle Automatic Tool Change for 3d Siding Drlling Cnc Router

US$ 30,000 - 38,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name TJ

Model Number 1530

Voltage 380

Power(W) 9kw

Dimension(L*W*H) 3300*2500*1800

Weight 2300kgs

Certification ce

Warranty 2 year

After-sales Service Provided Engineers available to service machinery overseas

4 axis center HSD spindle automatic tool change for 3d siding drlling cnc router

Main details

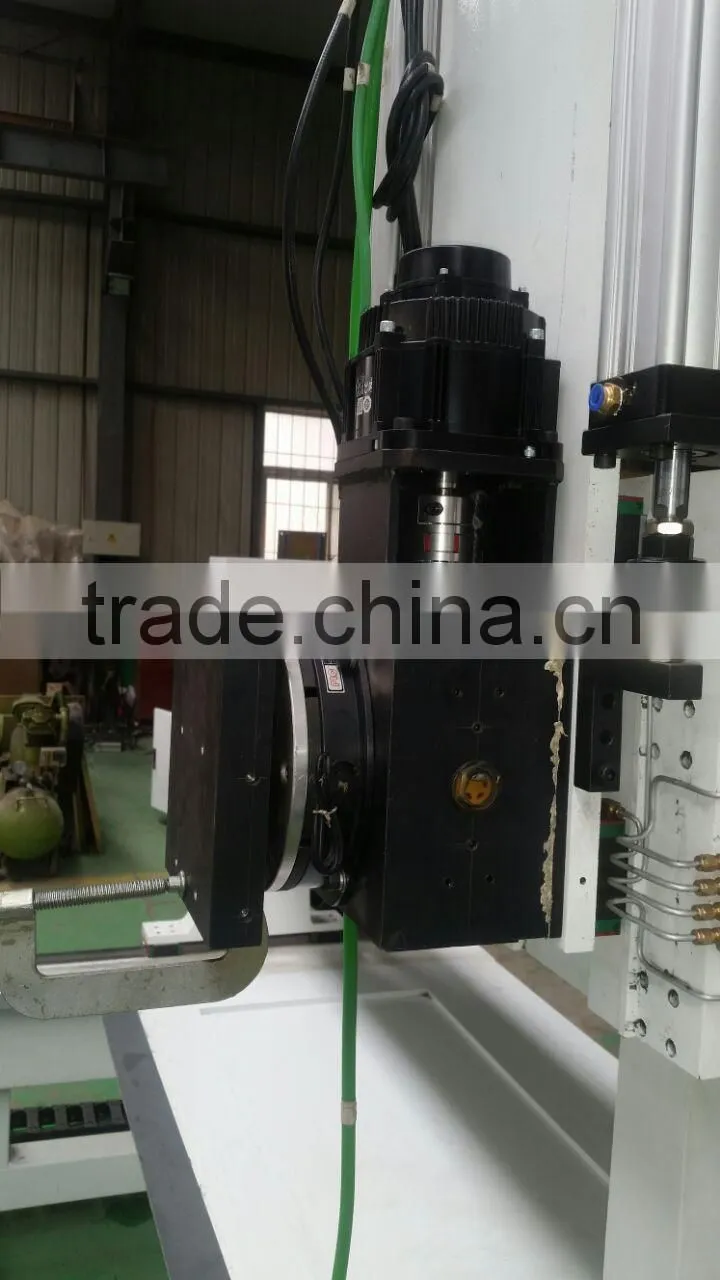

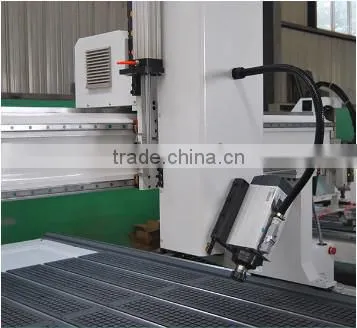

1. 9kw HSD air cooling spindle . you can choose 3/4.5/6kw the spindle can 3d drilling carving engraving .

can 90 degree rotary or 180 degree rotary

2. japan yaskawa servo motor

3. syntec control systerm

4. working size we can according your requirement to make .

Model	4 axis -1325HD		4 axis 1325-ATC
X,Y,Z Working Area	1300x2500x500mm*±90 degree (4' x8')		1300x2500x500mm*±90 degree (4' x8')
Spindle Power	4.5KW Italy HSD Spindle		9.0KW Italy HSD ATC Spindle
Tool Change Method	Manually		Auto Tool Changer 8pcs

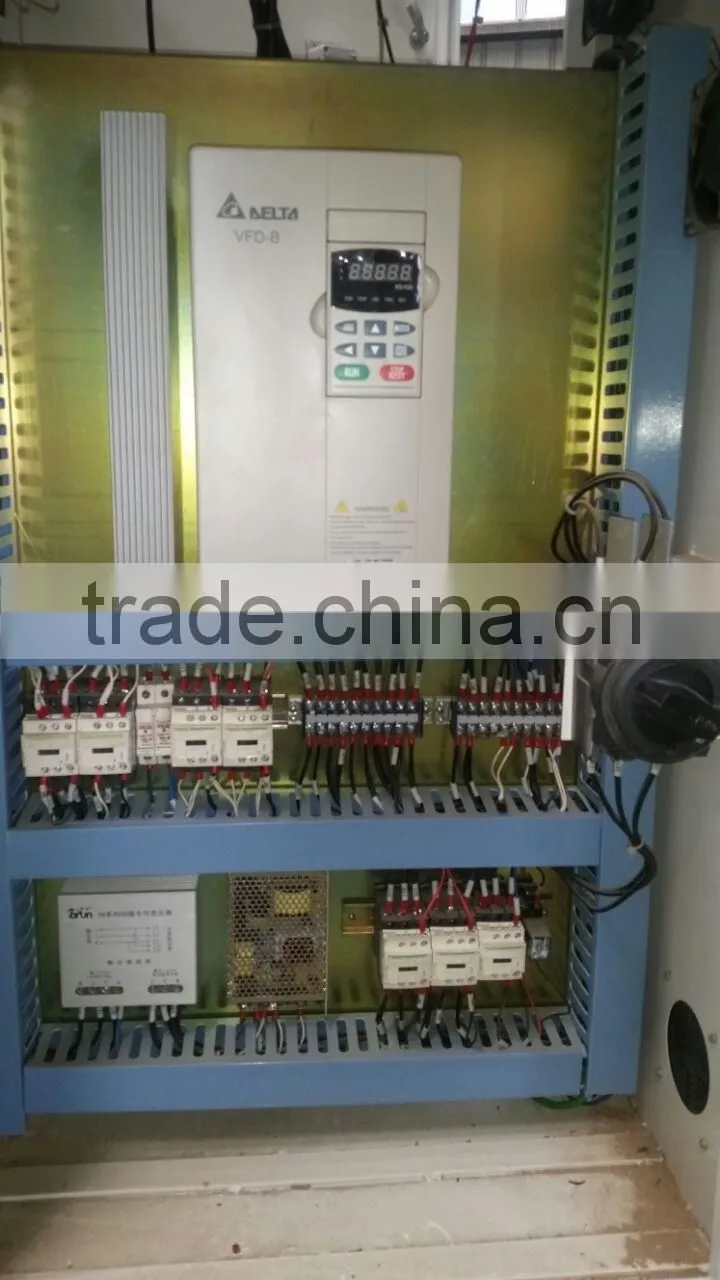

Inverter	5.5KW Delta Inverter		11KW Delta VFD-B Inverter
Driving Motors	XYZ 850W Yaskawa Motors		XYZ 850W Yaskawa Motors. XY axis use Taiwan reducer compatible with servo motor
Positioning Accuracy	±0.02/500mm

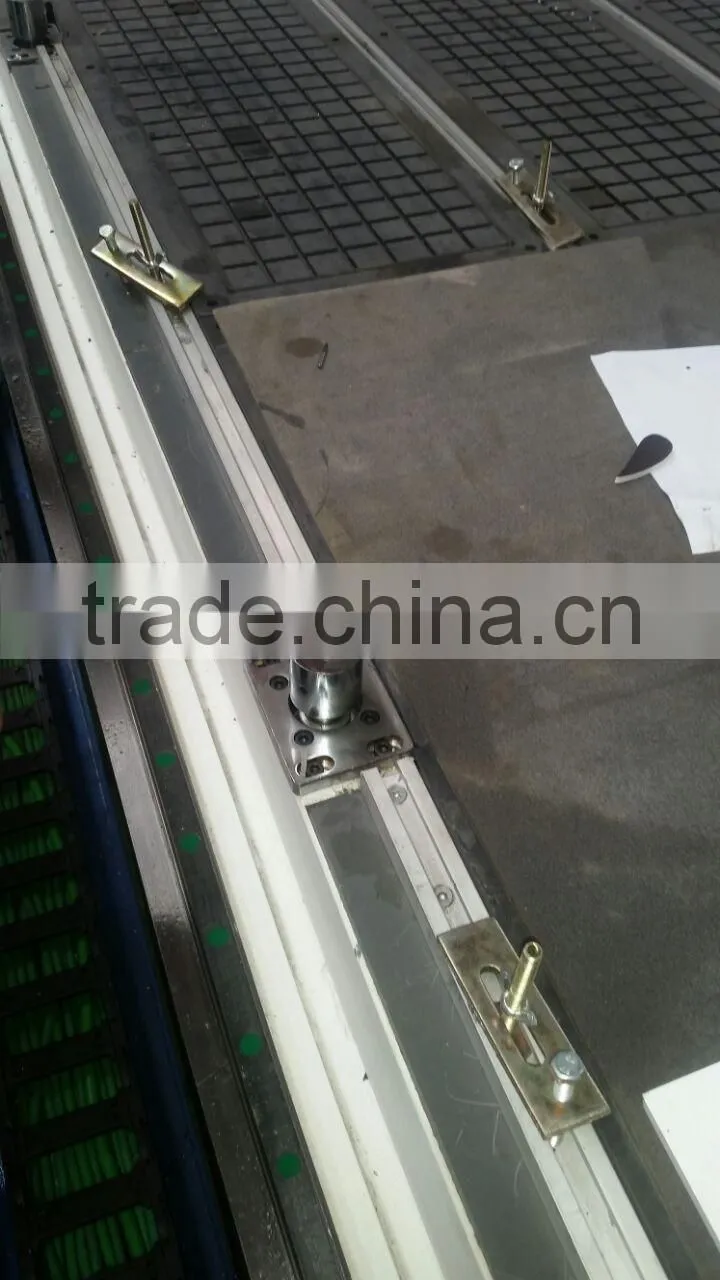

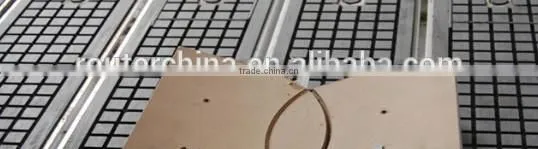

Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
Body Frame	Big Steel Tube Structure (8MM thickness wall)
X, Y Structure	Double Rack and Pinion Drive, Hiwin Rail Linear Bearings.
Z Structure	Original Taiwan Hiwin Rail Linear Bearings and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	30000mm/min
Working Voltage	AC380V/50/60Hz,3PH
Command Language	G Code
Operating System	Syntec Control System(Option: Siemens controller)
Computer Interface	Ethernet
Flash Memory	512M
Collet	ER32
X,Y Resolution	<0.03mm
Software Compatibility		Type3/UcancameV9 software (Option: Artcam software)
Packing Size		3300X2200X2200mm
Weight		N.W: 2000KG / G.W: 2200KG
