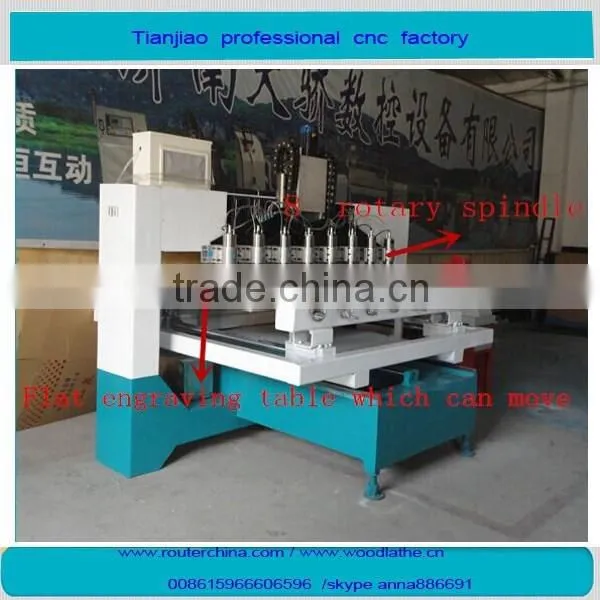

china 4 axis rotary cnc wood router machine /cnc engraver machine
skype :anna88669
Tel :8615966606596
1. Main features:
1. Helical Racks and pinion:Compared with straight racks, helical racks run quieter , especially at high speeds, and increase higher load carrying capacity
2 Top brand guide rail from the world, HIWIN /PMI 20mm guide rail, with dust proof function and free of lubrication lifetime.
3 Delta or YASKAWA servo motors, high accuacry, long working life.
4 Taiwan Syntec control system with friendly operation interface, easy to learn.
5 Imported high precision ball screw with big lead.
6 T-slot table could use both vauum pump and clamps.
7 vacuum pump with big suction performance.
8 Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.
2.Technical parameter
CNC Wood Router |
|
|
Configuration |
Parameter |
Option |
Model |

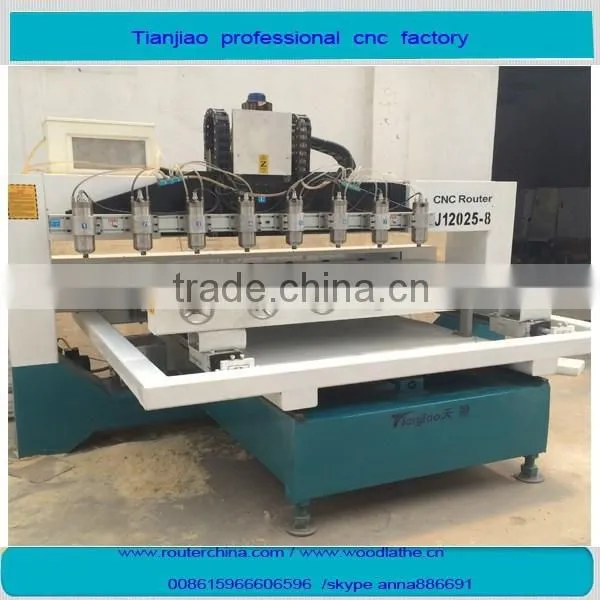

12028-8 |
6090/1212/1224/1390 etc. |
Working area |
2000*2500*200mm |
1300*2500*300 |
Spindle |
2.2KW |
6KW/9KW for option |
|
||
X-Y-Z Structure: |
X/Y Z axis: Taiwan Ball screw |
|
Control system |
DSP |
NC-Studio,Mach3,Syntec for choose |
Cooling system |
water cooling |
Domastic water cooling |
Cutting speed |
32000mm/min |
According to the material |
Engraving speed |
25000mm/min |
|
Rail |
Taiwan HIWIN/PMI square linear guide rail |
|
Drive motor |
Japan servo motor/Step motor |
Yaskawa/ Leadshine860 /yako2811 |
Spindle speed |
24000rpm/min |
|
Software |
Type3/Artcam/Wentai/Ucancam/ |
|
Dust Collector Power |
3KW |
|
|
|
|
Inverter |
Delta inverter(5.5KW) |
FULING OR SIFANG |
Command |
G code |
|
Repositioning Accuracy |
0.05mm |
|
Voltage |
AC380V/3PH/50Hz |
|
Running Environment |
Temperature:0-45°C Humidity:5%-95% |
|
3.Suitable Materials and Industrial Applications
Furniture Decoration Industry,Wood Products Processing,Musical Instrument Industry,Artwork,Electronic Industry

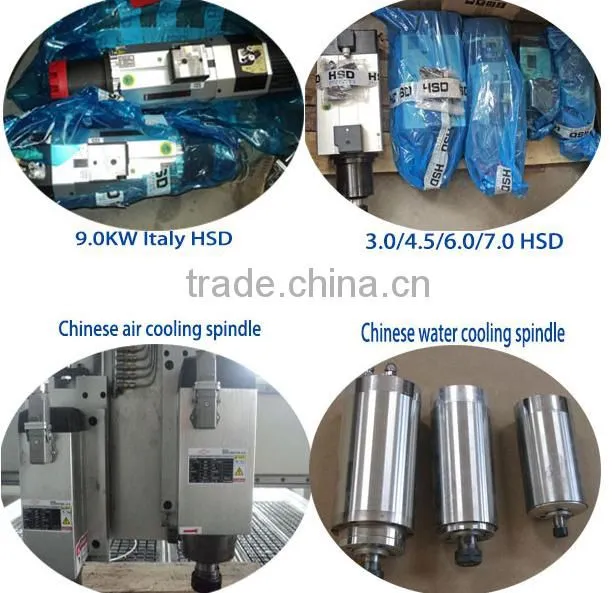

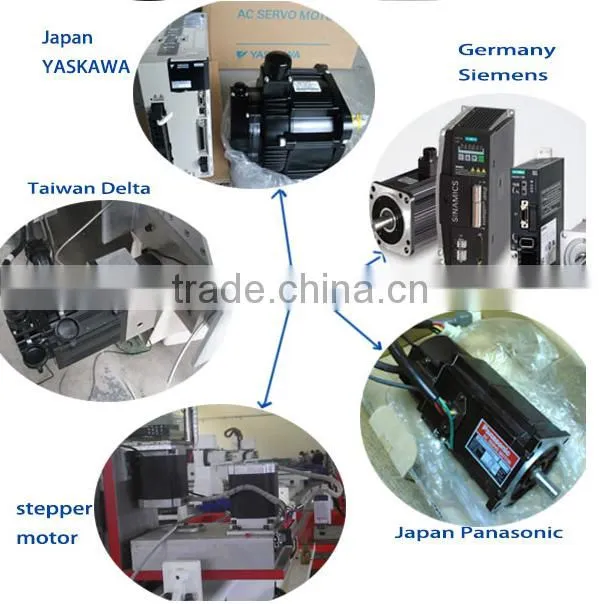

4. Main parts

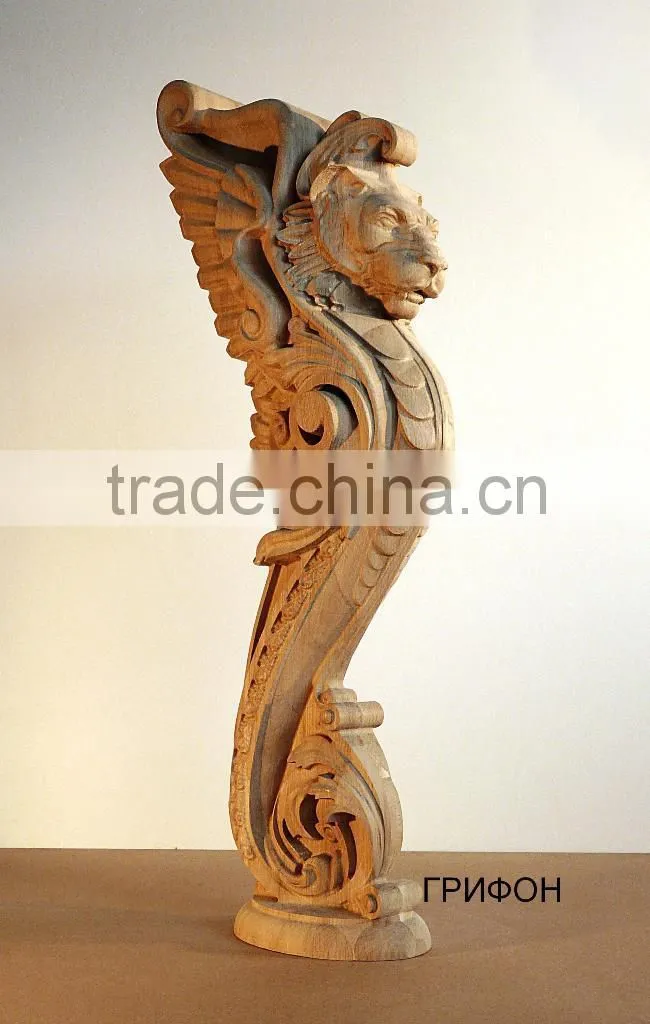

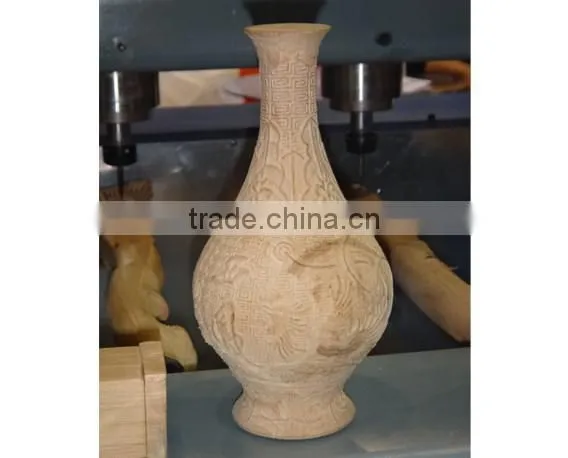

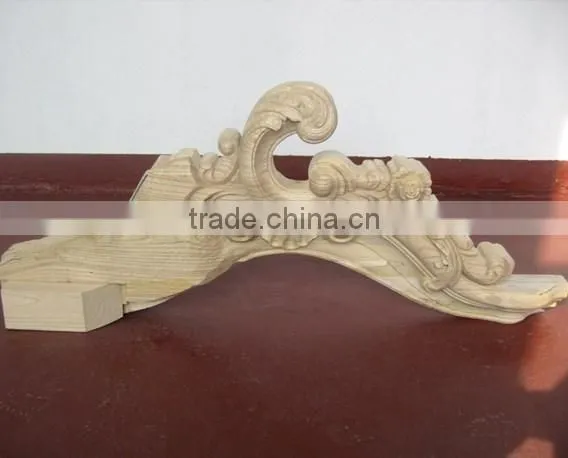

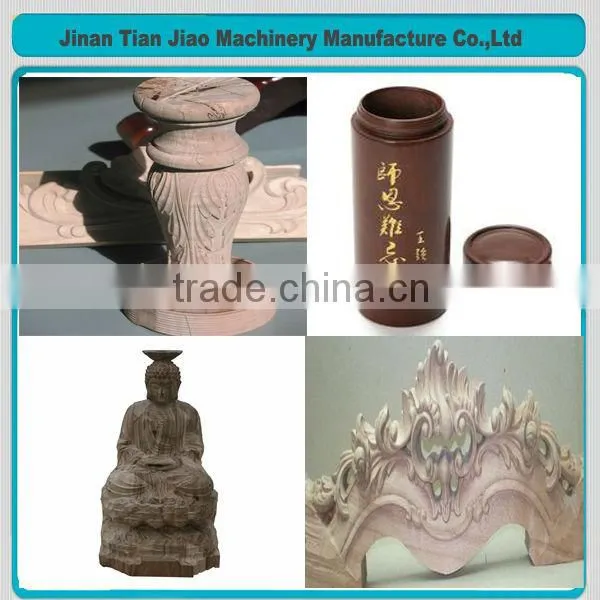

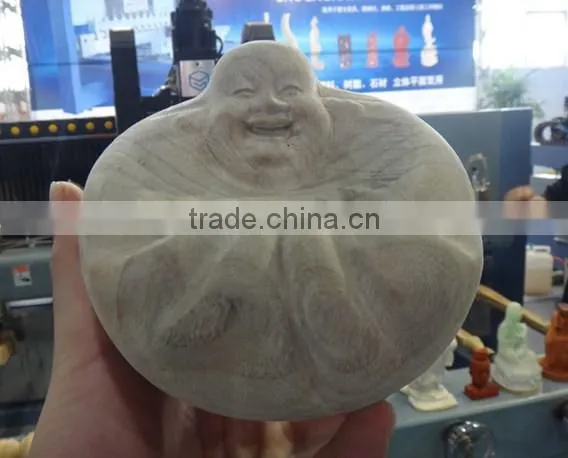

5.Sample Processing Show
6.company certificate
7.After-sale service
To provide clients with all aspects of after-sales service.
Our company promises:
One year free warranty for the whole machine , lifelong maintenance.
Customer response service time within 12 hours.
8. Contact
skype anna886691
whatsapp 008615966606596
wechat anna88669
