Specifications
cnc wood lathe/wood turning latheadvanced working efficiency
widely used in staircases,table legs
single axis,single blade

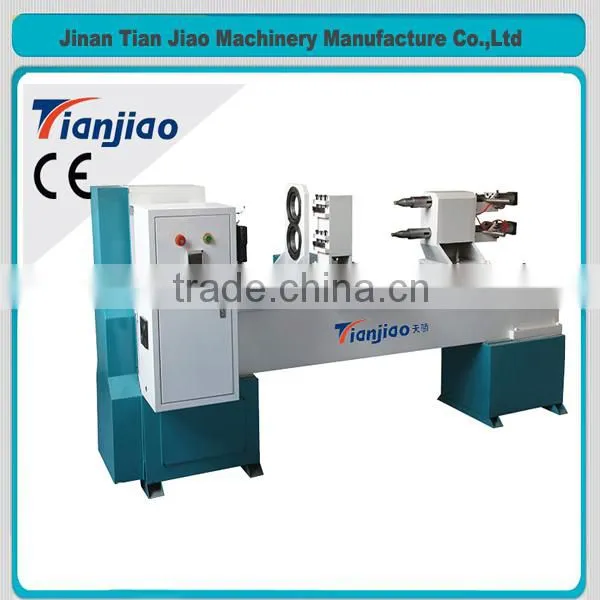

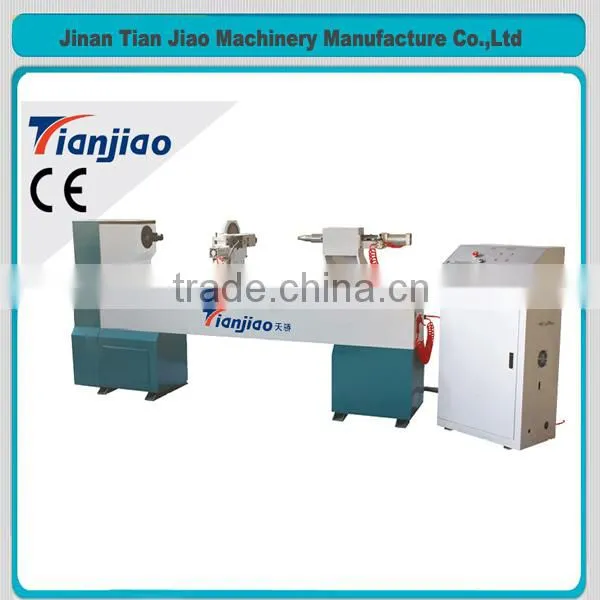

cnc wood lathe/wood turning lathe
1.Main features:
* is a very precise, efficient CNC wood turning lathe with first-class workmanship
* In heavy steel construction to avoid vibration, processed surface is smooth and precision
* Simple to use and practice-oriented operation. Workers just know Arabic numerals can operate it.
* Infinitely variable DC feed motor with feeding speed of 0 to 3600rpm.
* Single sided carbide blades for simple blade replacement
2.Applications
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar
stool legs;chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats and so on.
3.Features
Wood lathe is a device that can create items such as stairway posts,designs on wood,and more.
A CNC wood lathe is operated by a computer which is controlled by the user. The use of computers
on a lathe machine offers a wide range of benefits and features,while improving functionality.
Lathe machine is designed for cylindrical or conoid workpieces,for example pillar,banister,chair legs,
etc. All lathes work the same way.USB access device, turning garland, a molding.
4.Parameters
Model |
TJ1500 |
Max turning length |
1500mm |
Max turning diameter |
300mm |
Number of axis |
single axis,two blades |
Maximum feed rate |
200cm/min |
Minimum setting unit |
0.01cm |
Spindle motor power |
4kw |
Power supply |
AC380v/50hZ |
Overall dimensions |
300*100*150cm |
Spindle power |
3.5kw air cooling spindle |
Weight |
1600kgs |

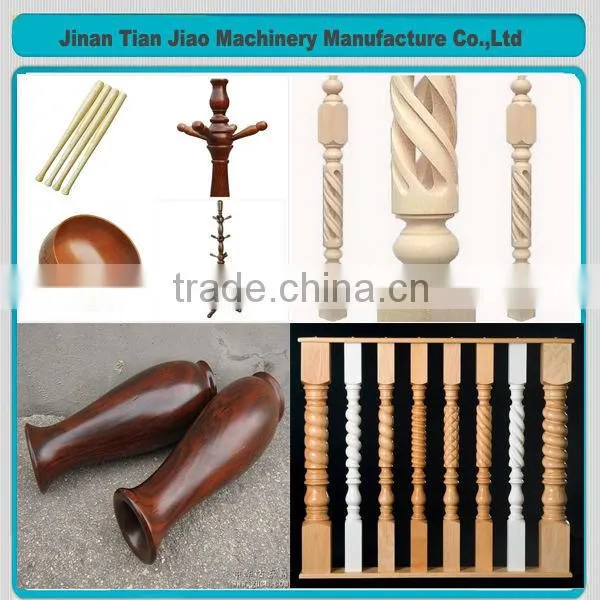

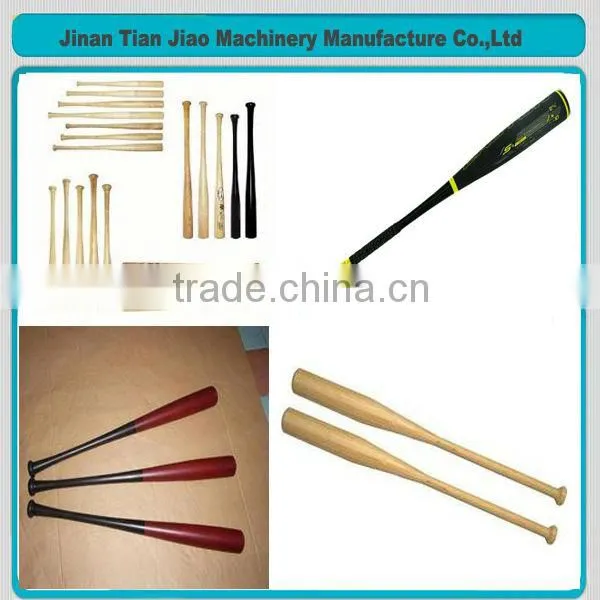

5.sample

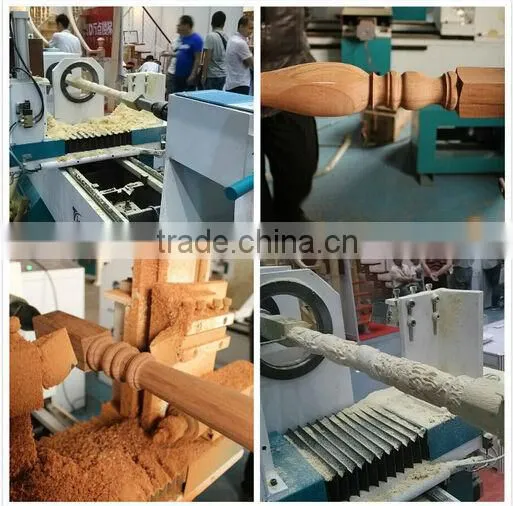

6.details
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
