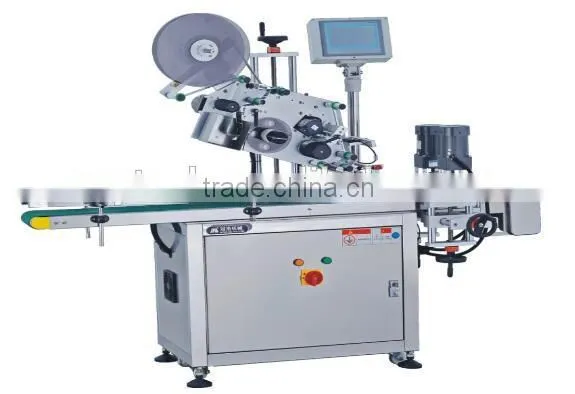

Help CenterAutomatic Horizontal Round Bottle Labeling Machine
Related Products
-
Good Labeling Machine Using PasteUS$ 10,000 - 50,000MOQ: 1 Set -
China Labeling Machine With PasteUS$ 10,000 - 50,000MOQ: 1 Set
-
China Label Sticking Machine With PasteUS$ 10,000 - 50,000MOQ: 1 Set
-
China Bottle Labeller With PasteUS$ 10,000 - 50,000MOQ: 1 Set
-
Automatic Double Sides Label Sticker ChinaUS$ 10,000 - 50,000MOQ: 1 Set
Product description
This automatic labeling machine is with human-machine interface and touch screen. It applies to unstable circular cylindrical objects, half the circumference of the labeling, adopts horizontal transmission, horizontal sides labeling method, increase the stability, improved labeling efficiency. It can be combined with automatic turntable unscramble bottle machine, connected directly to the front line, and also automatic inkjet printing machine or ribbon coding machine to print date of production, date of expiration, batch number and other information on bottles or labels. It is controlled by PLC and can preset 50 groups of labeling parameters with powerful memory function. The label output is controlled bymutual inductance stepping motor to ensure synchronization between label output speed and bottle rolling speed. Imported frequency converter is used to guarantee the stableness and reliableness of the whole machine.
Suitable bottle examples
Technical parameters
The following technical parameters are of standard model; other special requirement and function can be customized.
- applicable label length (mm): 20mm~100mm
- applicable length width (paper backing width/mm): 20mm~130mm
- applicable product diameter (for round bottle): external diameter: φ10mm~30mm
- applicable label external diameter (mm): φ280mm
- applicable inner diameter (mm): φ76mm
- labeling accuracy (mm): ±0.5mm (exclude packaging and label error)
- label sending speed (m/min): stepping: 5~19m/min servo: 5~25m/min
- labeling machine (pcs/min): stepping: 100~250pcs/min servo: 150~400pcs/min
- sending speed (pcs/min): 450pcs/min
- weight (kg): about 200kg
- frequency (HZ): 50HZ
- voltage (V): 220V
- power (W): 1020W (stepping) 1470W (servo)
- equipment external dimension (mm) (L×W×H): 2050mm×650mm×1450mm
Applicable scope
* Applicable label: the adhesive sticker label, adhesive sticker film, electronic supervision code, bar code, etc.
* Applicable products: labeling circumferential surface or small conical surface attached with a tag or membrane of small products.
* Application industry: widely used in medicine, cosmetics, electronics, metal, plastic and other industries.
Application example: solid glue bottle labeling, oral liquid bottle labeling, lipstick pen labeling, etc.
Our service
We take care of your demand and your investment. We offer caring service and also good communication. The machine can be custom make according to customer's bottle size and shape and speed requirement. We design suitable solution for your application.
Contact Us
Please feel free to consult me and your inquiry is welcome.
