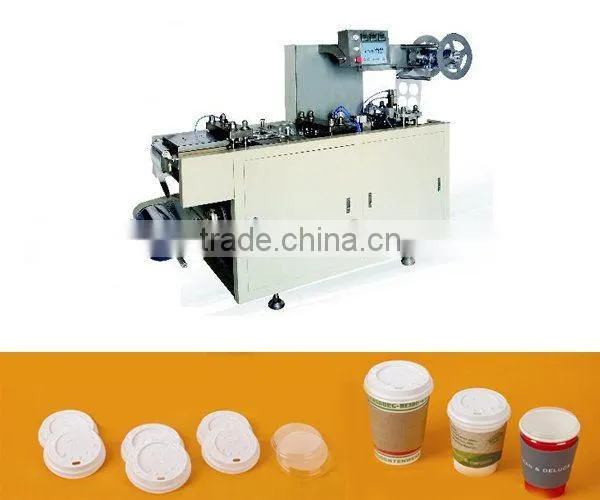

Plastic lid machine
Applications:
The machine is designed improved and created by our technicians with the feedback of customers who have using the machine for long time. It is widely used in the Ai-Plastic(AL/AL)s packing of each nub by object and liquid object of the vocation such as medicinefoodelectronhardware etc. It can be used to proof moisture and dust, improve products level and additional value. It can be also linked to product with pillow packing machine and boxing machine.
Main Features:
1. Compact Configuration, Calm Run, Easy Manipulation.
2. Sleeplessly Variable Frequency Speed Regulating, PC Circuit Control Panel.
3. Adjustable travel, convenient for replacing mould.
4. Can design any mould and feeder according to customers advice.
Main technical parameters
Punching Frequency |
20-45times/min |
Adjustable Scope of Travel |
60-150mm |
Max Forming Depth |
24mm |
Total Power |
3KW |
Air-Consumption |
≥0.2m3/min |
Pressure |
0.4-0.7Mpa |
Dimensions of forming |
1900×800×1600mm |
Weight |
650kg |
Send Inquiry to This Supplier
