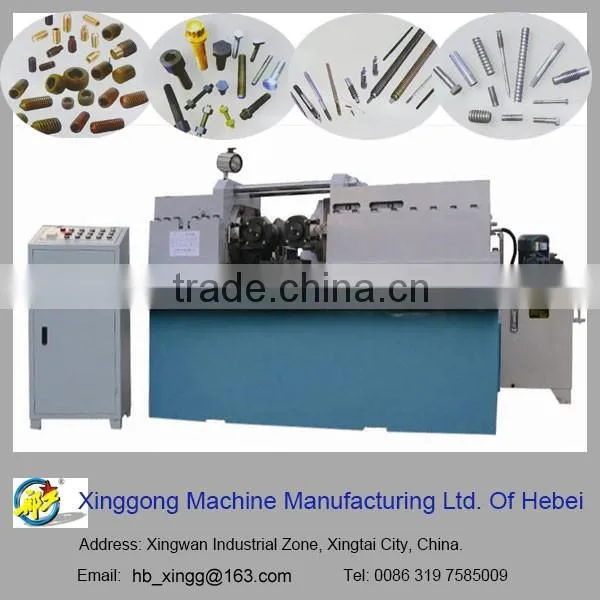

Steel rod threading machine
Reasonable structure, easy to manufacture, good stable work, convenient maintenance, reasonable price. Can be radial and axial processing, can processing various thread, worm, modulus spline, Straight grain parts, checkered parts, barreling cylinder and various curved body such as the rectangular arc grooves are very popular with users.
Specifications
| MAX PRESSURE | 250KN |
| MAX. PROCESSING DIAMETER | 80mm |
| MAX. PITCH | 8mm |
| BD OF ROLLER | 75mm |
| MAX. ROLLER WIDTH | 180mm |
| CENTER DISTANCE OF MAIN SHAFT | 120-300mm |
| ROTARY SPEED OF MAIN SHAFT | 20,26,32,42,52,65(r/min) |
| DIP ANGLE OF MAIN SHAFT | ±10° |
| THREAD LENGTH | No limits |
| MAIN POWER | 11KW |
| HYDRAULIC POWER | 5.5KW |
| WEIGHT | 3700kg |
| SIZE | 1960*1930*1460mm |
Company Information
Xinggong Machine Manufacturing Ltd. Of Hebei is located at Xingwan Industrial Zone, Xingtai City, Hebei Province, which has a long history of machinery manufacturing. As a member of China Association of Mechanical Parts Sectors, this company has got successive extension ever since 1984 and has trained numbers of qualified personnel on technology and management. Currently, threading machine is the leading product of this company, it has a series of 4 and covering more than 1200. Thanks to the perfect management, advanced technology, reliable quality and firstclass service, the company passed certification of ISO 9001 international quality control system in August, 2003. “Xinggong” has been conferred as a famous brand of Hebei Province. The thread rolling machine has been given the title of “High-Quality Product of Hebei Province”.
