Thread Rolling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Xinggong
Model Number:
Z28-40
Payment & Shipping
Payment Methods:
Port of Shipment:
Xin gang Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
Xinggong
Model Number
Z28-40
Certification
ISO9001:2000

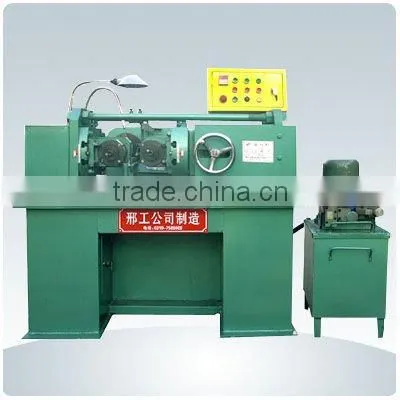

Thread rolling machine
This model is suitable for cold forming of straight thread, screw thread and twill thread with range of 4 to 36mm. The embossing roller is optional for processing clamping screw and through screw. The machine is made with welded steel plate, featuring rational structure, easy operation and reliable quality. It is an ideal machine to produce standard and non-standard parts.
Parameters:
| Pressure of roller max. | 80KN |
| Working diameter | 4-36mm |
| OD of Roller | 120-170mm |
| BD of Roller | 54mm |
| Roller width max. | 100mm |
| Dip angle of main shaft | +-5degree |
| Center distance of main shaft | 120-200mm |
| Rotary speed of main shaft | 36 47 60 78 |
| Feed speed of movable shaft | 5mm/s |
| Hydraulic stroke | 0-20mm |
| Main power | 4kw |
| Hydraulic power | 2.2kw |
| Weight | 800kg |
| Size | 1300*1250*1470mm |
