Thread Rolling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
xinggong
Model Number:
Z28-40
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
xinggong
Model Number
Z28-40

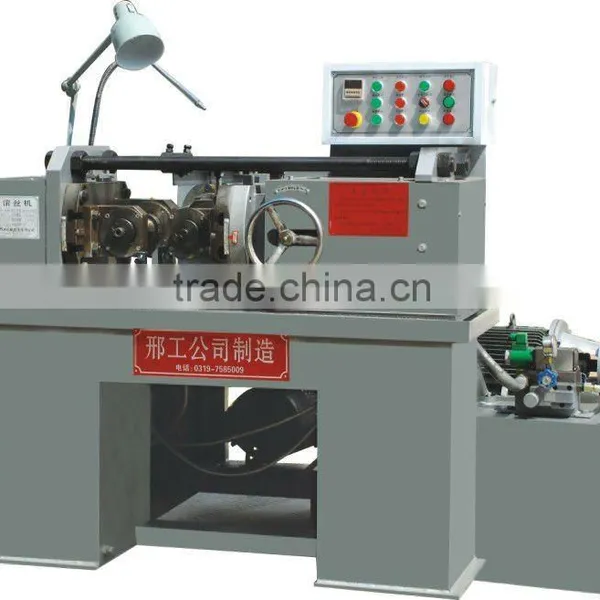

thread rolling machine
This model is suitable for cold forming of straight thread,thread and twill thread with range og 4-36mm.theembossing roller is optional for processing clamping screw and through screw.the mahcine is made with welded steel plate,featuring rational structure,easy opration and reliable quality,it is an idea machine to produce standard and non-standard parts.
parameters:
| Pressure of roller max. | 80KN | Rotary speed of main shaft | 36.47.60.78(r/min) |
| Working Dia | M4-M36 | Feed speed of movable shaft | 5mm/s |
| OD of roller | 120-170mm | Hydraulic stroke | 0-20mm |
| BD of roller | 54mm | Main power | 4kw |
| Roller width max | 100mm | Hydraulic power | 2.2kw |
| Dip angle of main shaft | ±5° |
Weight | 800kg |
| Center distance of main shaft | 120-200mm | Size | 1300*1250*1470mm |
