RPB7 Wet Guniting Machine for Concrete
US$ 18,000 - 28,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Consumption Shotcrete MachineUS$ 18,000 - 28,000MOQ: 1 Set -
Shotcrete Machine Diesel DrivenUS$ 2,000 - 9,000MOQ: 1 Set
-
PZ-3 Shotcrete Machine for PoolUS$ 2,000 - 9,000MOQ: 1 Set
-
RISEN PZ Series Dry Mix Shotcrete MachineUS$ 2,000 - 9,000MOQ: 1 Set
-
RISEN PZS3000 Wet Concrete Spray MachinesUS$ 1,000 - 8,000MOQ: 1 Set
Condition
New
Power Type
Electric
Place of Origin
Henan, China
Brand Name
RISEN
Model Number
RPB7 Wet Concrete Shotcrete Machine
Weight
1100kg
Dimension(L*W*H)
2530*1300*1300mm
Specifications
RPB7 Wet Guniting Machine for ConcreteWet Concrete Guniting Machine
Small Concrete Pump
Long Conveying distance
Durable

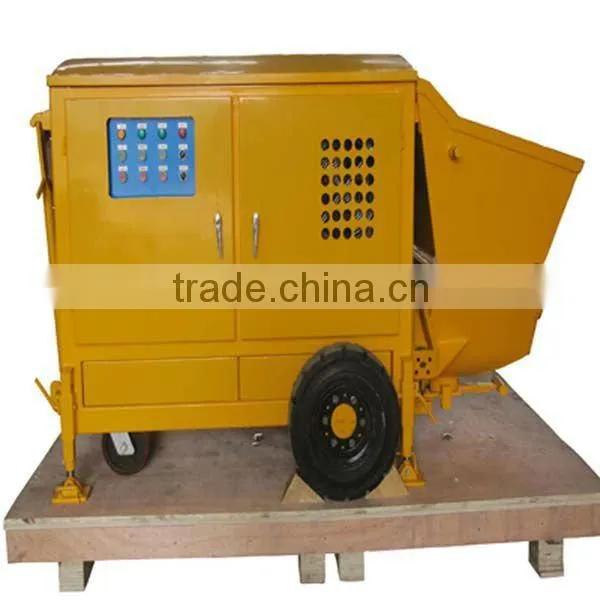

RPB7 Wet Guniting Machine for Concrete
Technical data:
Parameter |
Unit |
Value |
Output |
m 3/h |
7 |
Pressure |
MPa |
5 |
Hopper capacity |
L |
170 |
Loading Height |
mm |
1050 |
Suitable slump |
cm |
6-18 |
Max.grain size for spraying |
mm |
15 |
Pipe and hose size |
mm |
65/50 |
Horizontal converying distance |
m |
120 |
Vertical converying distance |
m |
50 |
Drop out |
% |
<8 |
Electric motor |
kW |
15 |
Air pressure |
MPa |
0.3 |
Use air value |
m3/min |
3 |
Dimensions |
mm |
2530×1300×1300 |
Weight |
kg |
1100 |
Aplication
RISEN RPB7 Wet Guniting Machine can be used for the conveying and spraying of wet-mix concrete. Typical applications include permanent and temporary rock support in tunnels and mines, or in fact wherever sprayed concrete is to be applied. It can also for pumping, grouting, repair work, artificial soil seeding, mortar spraying, and refractory material spraying.
Features
- Thick flow conveying method with hand-spraying make the concrete spraying is even, steady with less air consumption comparing to thin flow conveying method.
- RISEN RPB7 is a high efficiency machine with a longer conveying distance, horizontal 200m and vertical 70m.
- Simple CE standard electrical system controls provide fool-proof operation
- Soft-start protects electric system and motor.
- Two independent oil pressure circuits.
- Main oil is supplied by a high-pressure, variable-flow, axial piston pump. A gear pump provides separate circuit for the dosing pump.
- Setting of the desired dosing values by hand-wheel

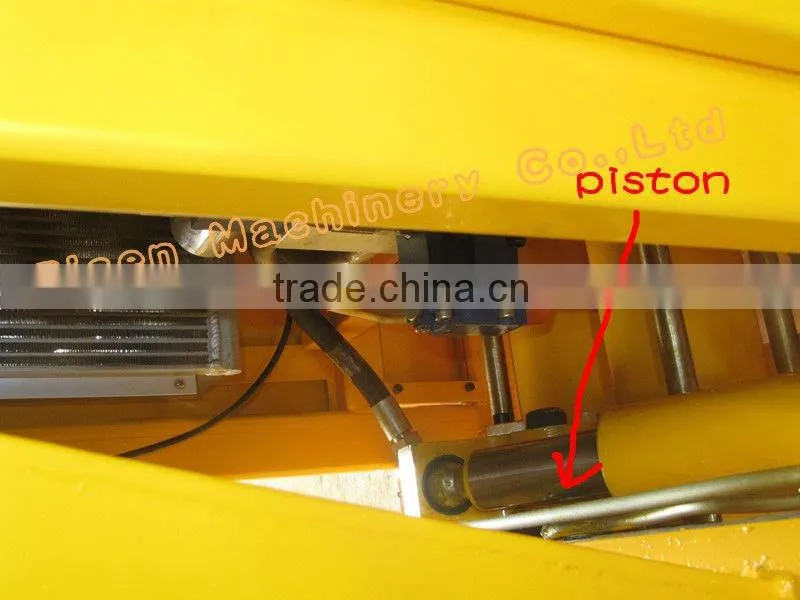

- Double piston pump with S-tube and change-over cylinders for a positive action.
- Self-sealing, superhard sealing ring and plate.
- Automatically reversing pistons relieve the conveying system when blocked.
- Tough hopper with vibrator and grill designed for work with steel fibres.
- Centrally positioned lubrication point for easy service.
- Low weight is an advantage for transport.
