Dry Mix Gunite Machine
- 1000 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T Credit Card
Product Details
Condition: | New | Max. Conveying Distance: | 200m | Max Aggregate Size: | 10mm |
Hose Inner Diameter: | 42 mm | Air Consumption: | 5~6CBM/min | Place of Origin: | Henan, China |
Brand Name: | RISEN | Model Number: | PZ-3(electric motor) | Power(W): | 3kw(4hp) |
Dimension(L*W*H): | 1130 x 450 x 1020 mm | Weight: | 430 Kg | Certification: | CE |
Product Description
Specifications
Dry Mix Gunite Machine1.Output:3m3/h
2.Air consumption:5-6m3/min
3.CE certification and hot sell
4.Steady, same as Aliva
Dry Mix Gunite Machine
Application:
- Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
- Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
- Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Features:
- Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
- Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
- Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
- Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
- Three drive models: by Electric motor, air motor or diesel engine.
- For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997.
Technical Data:
Output Capacity: | 3 cubic meter/hour |
Maximum Conveying Distance: | 200 m (660 ft) |
Desired Shotcrete Ingredient Ratio: | Cement/sand and gravel < 0.35 |
Maximum Aggregate Size: | 10 mm (2/5”) |
Inner Diameter of Conveying Hose: | 51 mm (2”) or 42mm (1 5/8”) |
Working Compressed Air Pressure: | 29 ~ 87 psi (0.2 ~ 0.6 MPa) |
Conveying Air Consumption: | 175 ~ 210 cfm (5 ~ 6 cubic meter / min) |
Ideal Rotor Speed: | 14 rpm |
E-Motor Power: | 3kW (4.1 hp) |
Dimensions: | 1130 x 450 x 1020 mm |
Net Weight: | 430 Kg |

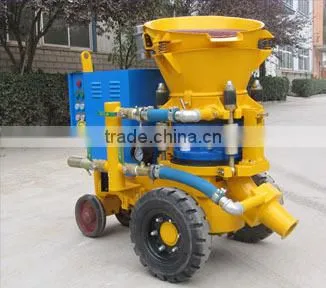

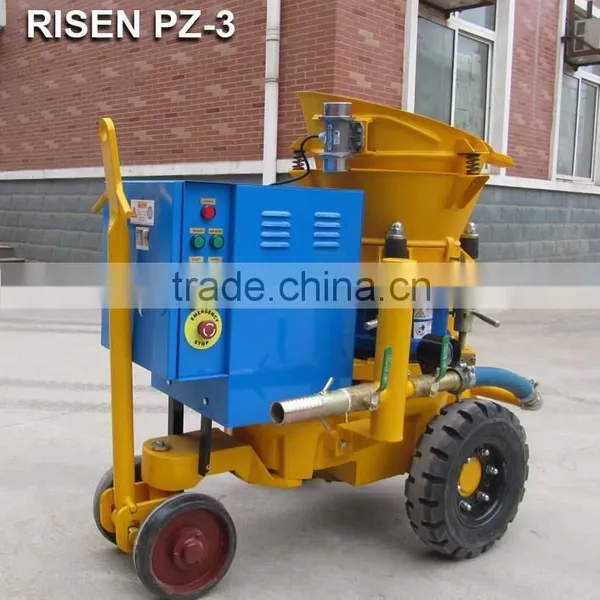

Pictures:
Spare parts:
CEcertificate:
