Hydraulic Piston Grouting Machine
US$ 4,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
RISEN
Model Number:
RG90
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cement Injection Grouting Pump MachineUS$ 1,000 - 9,000MOQ: 1 Set -
High Pressure Electric Hydraulic Grouting PumpUS$ 1,000 - 9,000MOQ: 1 Set
-
High Pressure Piston Grouting Pump for Cement MortarUS$ 1,000 - 9,000MOQ: 1 Set
-
Made In China Grouting Pump For Cement MortarUS$ 1,000 - 9,000MOQ: 1 Set
-
Efficiency Manual Ball Valve PumpUS$ 500 - 1,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
RISEN
Model Number
RG90
Condition
New
Specifications
Hydraulic Piston Grouting Machine;1. Hydraulic piston pump;
2. High pressure Max. 100bar;
3. Max. output 100L/min.

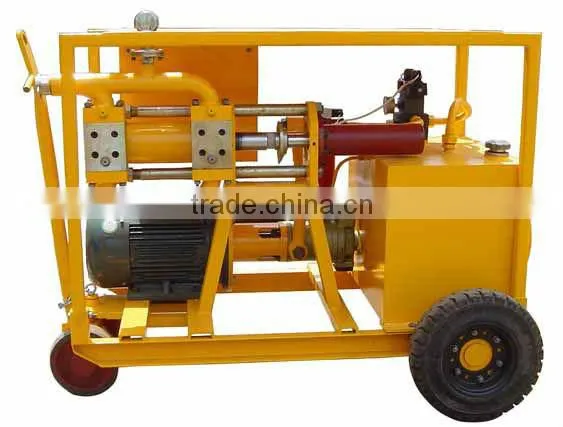

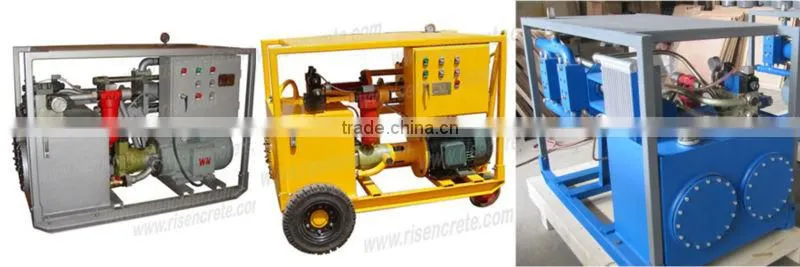

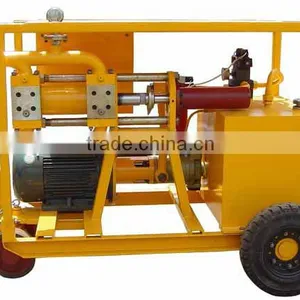

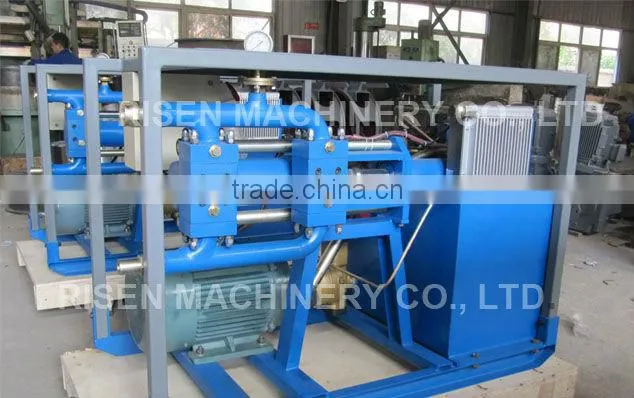

Hydraulic Piston Grouting Machine
RISEN RG90S is a hydraulic piston grouting machine with single cylinder and double acting, its main oil pump is a variable piston unit adjusted by hand, so the output of pump can be adjusted.
This pump has many advantaged characters of simple structure, higher working pressure. It has been using for sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc.
Recommended pumping material: Cement/water Slurry or similar Slurry
Technology description
| Type | Max. Output | Max. Pressure | Cylinder Dia | Power | Weight | Overall dimension | Chassis | ||
| L | W | H | |||||||
| mm | mm | mm | |||||||
| RG90S | 100L/min | 10MPa | 110mm | 11kW ,elec.motor | 580kg | 1505 | 770 | 1110 | Skid or tyre |
Features:
- Single piston double-acting
- Oil hydraulic drive
- Compact structure with reliable working
- Ball valve
- single inlet & outlet. If you need the doulbe inlet & outlet, please choose RG90D.
- Output can be automatically changed according to the grouting pressure. Lower output with high pressure and big output with lower pressure. Suit for the technics needs to keep grouting presure. If you need to adjust the pressure by hand, please contact us.
