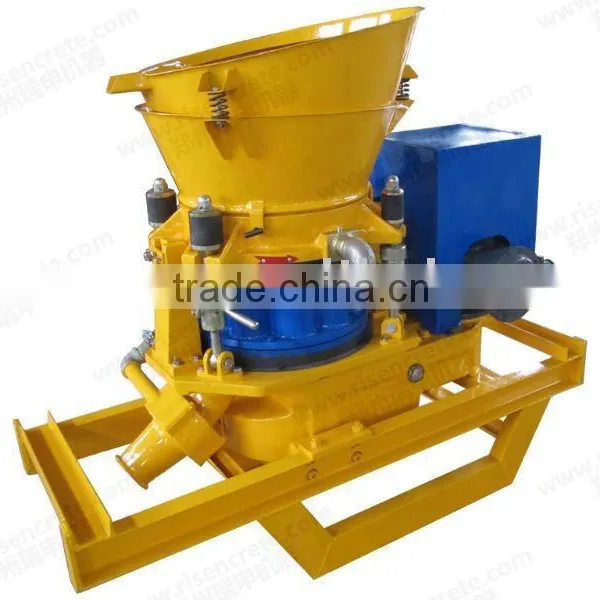

Durable Concrete Spraying Machine

Name: Durable Concrete Spraying Machine
Brand: RISEN
SKU: 124323025

US$ 2,000 - 9,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

RISEN

Risen Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai tianjin qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name RISEN

Model Number PZ-3(electric motor)

Dimension(L*W*H) 1130*450*1020 mm

Weight 430 Kg

Specifications

Durable Concrete Spraying Machine
1.20 years experience
2.Output:3m3/m
3.Air consumption 5-6m3/min
4.size 1150*1020*540mm

Durable Concrete Spraying Machine

Application:

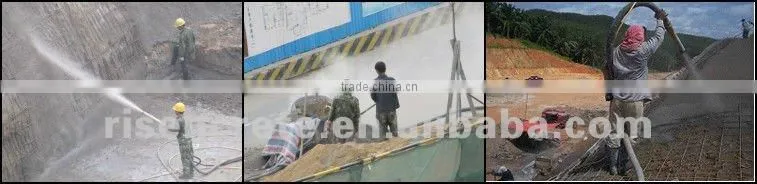

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Features:

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
Three drive models: by Electric motor, air motor or diesel engine.
For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997.

Technical Data:

Output Capacity:	3 cubic meter/hour
Maximum Conveying Distance:	200 m (660 ft)
Desired Shotcrete Ingredient Ratio:	Cement/sand and gravel < 0.35
Maximum Aggregate Size:	10 mm (2/5”)
Inner Diameter of Conveying Hose:	51 mm (2”) or 42mm (1 ⁵/₈”)
Working Compressed Air Pressure:	29 ~ 87 psi (0.2 ~ 0.6 MPa)
Conveying Air Consumption:	175 ~ 210 cfm (5 ~ 6 cubic meter / min)
Ideal Rotor Speed:	14 rpm
E-Motor Power:	3kW (4.1 hp)
Dimensions:	1130 x 450 x 1020 mm
Net Weight:	430 Kg
