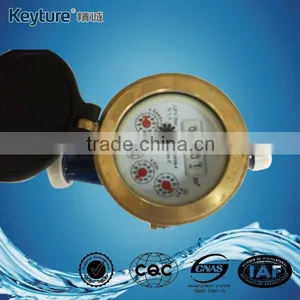

Volumetric Rotary Piston Wet Water Meter With Brass Body (LXH-15)

Volumetric Water Meter

Application:

This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit passing through the pipeline

Features:

1. Positive rotating piston type
2. Internal non return valve
3. Internal replaceable strainer
4. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in long-term service.

5. The meters conform to ISO4064 standard Class C

6. Magnetic drive and resistance to exterior magnet interference
7. Selected high quality materials for steady and reliable characteristic, Corrosion resistance and nice look
8. Optimum accuracy and performance at all times, in any position.
9. No location limitation for installation.

10. Durable tamperproof construction

Working condition:

1)   Water temperature: ≤ 50°C

2) Water pressure: ≤1.6 Mpa (PN:1.6 Mpa/16Bars)

MAXIMUM PERMISSIBLE ERROR:

a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%

b) In the upper zone from Q2 inclusive up to and including Q4 is ±2%
