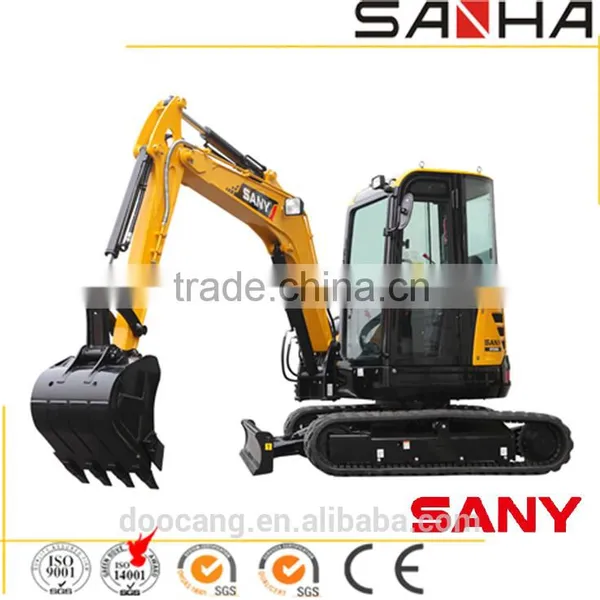

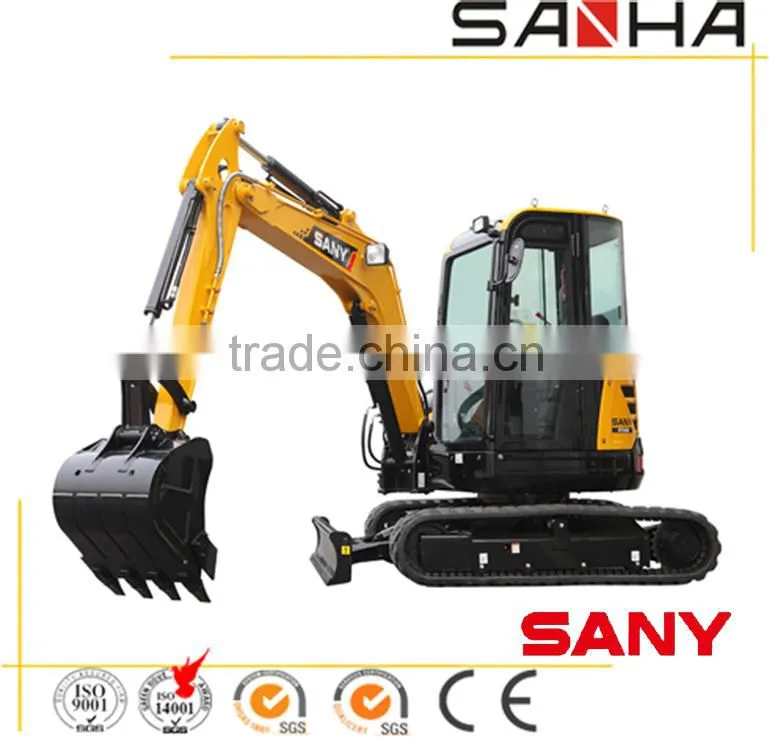

SANY Mini Excavator SY35U
ENERGY SAVING STAR, LEADING THE INDUSTRY
High Efficiency and Low Consumption
Quality Parts Providing Better Reliability,Durability and Longer Service Life
Safe and Comfortable Cab Environment
Easy Maintenance
SY35U EXCAVATOR SPECIFICATION
| MODEL | SY35U |
| Dimension(Unit:mm) | |
| A Length(During Transportation) | 4915 |
| B Width | 1720 |
| C Height (During Transportation) | 2515 |
| D Upper Body Width | 2490 |
| E Blade Height | 350 |
| F Std. Track Width | 300 |
| G Track Gauge | 1420 |
| H Min. Ground Clearance | 295 |
| I Tail Swing Radius | 860 |
| J Roller Gauge | 1670 |
| K Track Length | 2155 |

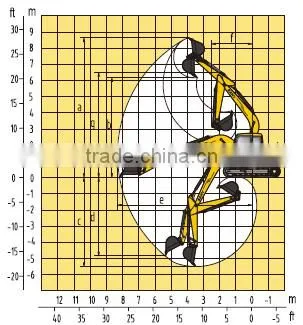

| OPERATION RANGE | |
| a Max. Digging Height | 4855 |
| b Max. Dumping Height | 3460 |
| c Max. Digging Depth | 3105 |
| d Max. Vertical Digging Depth | 2700 |
| e Max. Excavating Distance | 5465 |
| f Min. Swing Radius | 2475 |
| g Height at Min. Swing Radius | 3685 |
| TECHNICAL PARAMETERS | |
| Operating weight | 3780kg |
| Std.Bucket Capacity(m3) | 0.12m3 |
| Rated Power | 20.4kw/2200rpm |
| Travel Speed(Highest/Lowest) | 4.4/2.4km/h |
| Swing Speed | 19rpm |
| Gradeability | 58%/35° |
| Ground Pressure | 32kPa |
| Bucket Digging Force | 30.4kN |
| Arm Digging Force | 18.2kN |
1.Most of our shipment will go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc, either by container RoRo Bulk shipment.
2.For neighborhood countries of China, such as Russia , Mongolia ,Myanmar,Kazakhstan, Uzbekistan etc, we can by road or rail way.
3.For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, Fedex.
ISO9000 Quality System Certification
ISO14001Environment Management System Certification
OHSAS18001 Occupational Health Safety System Certification
German TUV Certification
1. WARRANTY
Twelve-month-period or 2000-hours warranty for any machine purchased from us
2. SPARE PARTS
Provide customers genuine spare parts with genuine quality, exact fitness and appropriate function
3. INSTALLATION & MAINTENANCE
Provide you with the overall installation of complicated machinery and equipment.After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installationand operation.
4. TRAINING &TECHNICAL ADVICE
Provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training
What are our advantages compared with manufacturer/factory?
1.Competitive Price. 2.Quick Response 3.Fast delivery
Which payment terms we do?
Normally we can work on T/T term or L/C term, sometime DP term.
1. On T/T term, 30% down payment as deposit after order confirmation, and 70% balance shall be settled before shipment, or against the copy of B/L for old customers.
2. On L/C term, a 100% irrevocable L/C. A L/C draft is necessary before you open the formal L/C from the bank.
