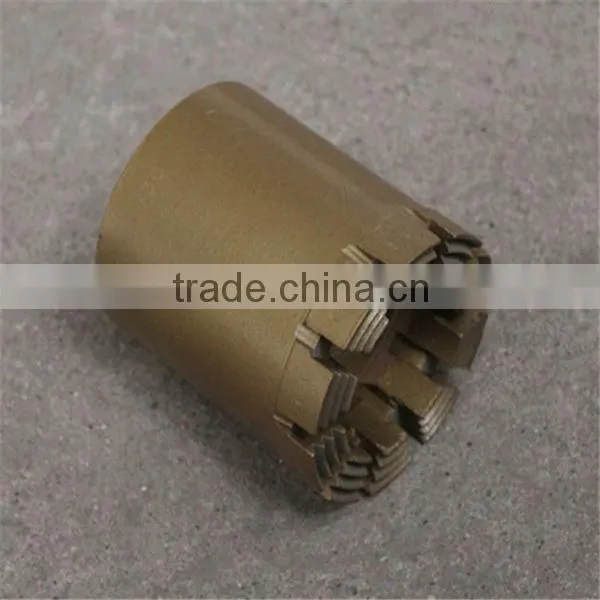

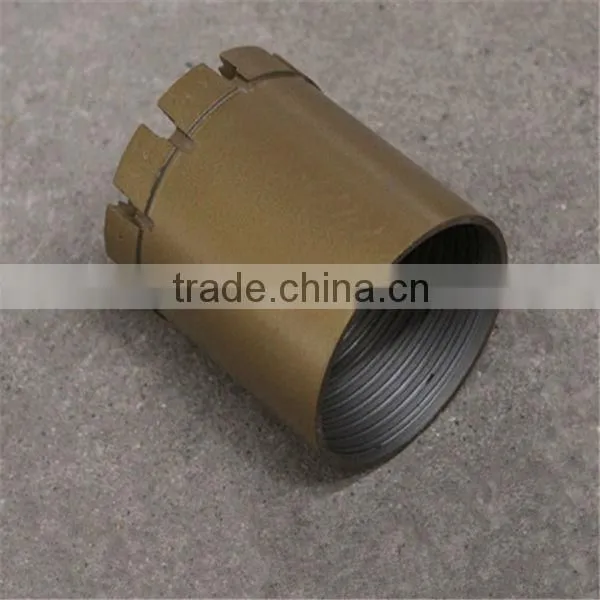

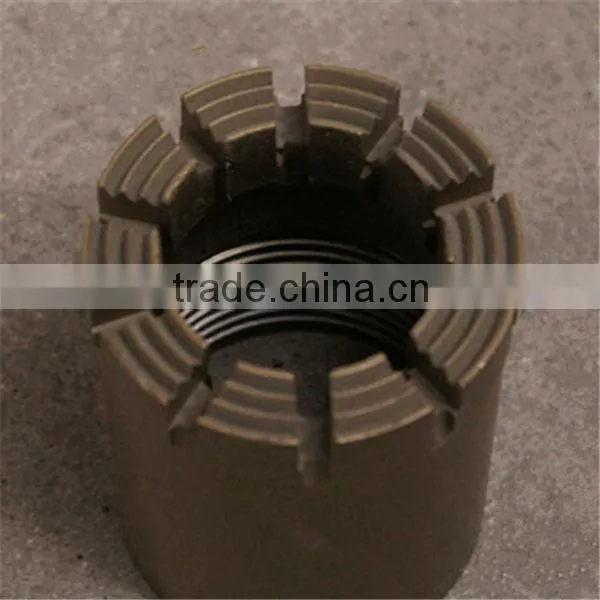

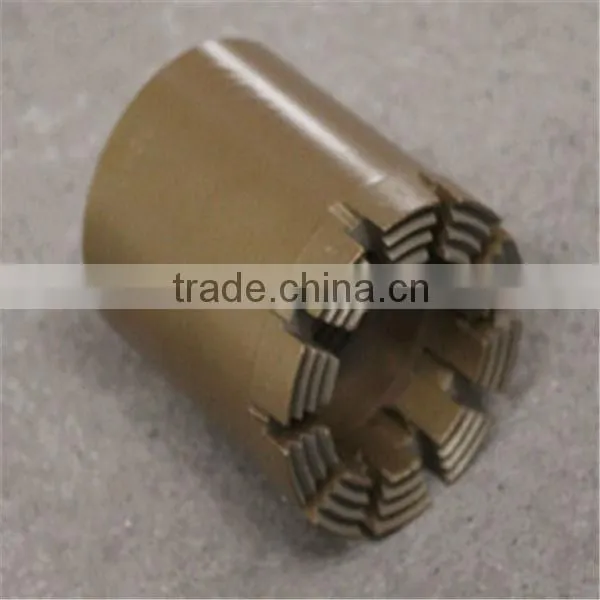

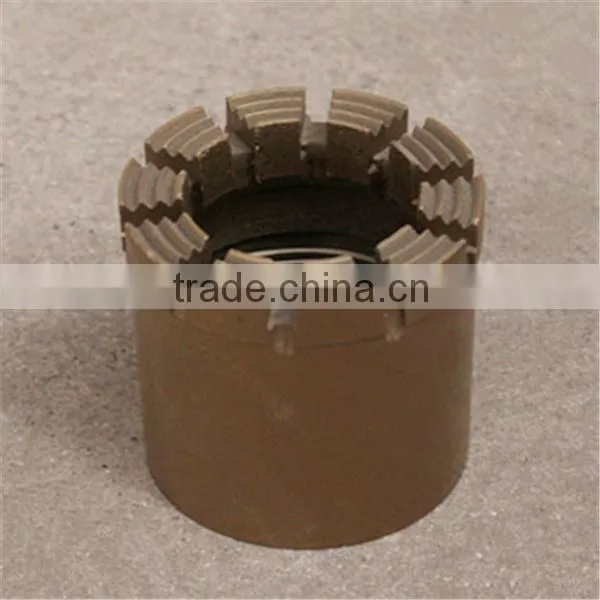

PCD reaming shell drilling rig tools

Specifications

1.customized product
2.ISO9001 certificate
3.Good stability
4.Long working life

 Advantages

1. one- shop shopping service
2. price are very competitive

3.customized product
4.ISO9001 certificate
5.Good stability
6.Long working life

Available type

impregnated diamond reaming shell

surface set diamond reaming shell

TC reaming shell

pcd reaming shell

electoplated diamond reaming shell

Available size of Q series reaming shell

Specification	inner diameter	outer diameter of thread	screw-depth	screw-depth
Φ89	Φ68	Φ82.5	0.75	4
Φ108	Φ86	Φ102	1	4
Φ127	Φ103	Φ121	1	6
Φ140	Φ118	Φ133	1	6
Φ146	Φ121	Φ140	1	6
Φ168	Φ139.5	Φ161	1	6
Φ178	Φ148.5	Φ169	1.5	6





Specification	outer diameter(mm)	inner diameter(mm)	weight	Length
Φ89	Φ 89	Φ80		1500mm
Φ108	Φ 108	Φ99	18	1500mm
Φ 127	Φ 127	Φ118	23.7	1500mm
Φ 140	Φ 140	Φ 124		1500mm
Φ 146	Φ 146	Φ 136	31.6	1500mm
Φ 168	Φ 168	Φ 152	47.6	1500mm
Φ 178	Φ 178	Φ 159		1500mm
