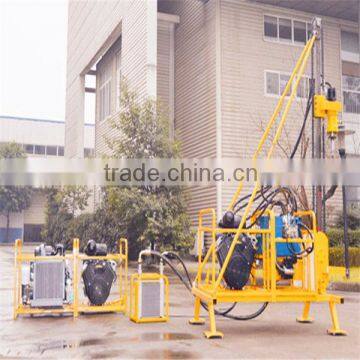

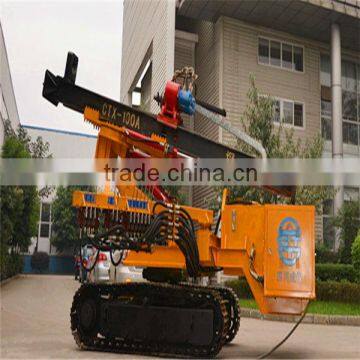

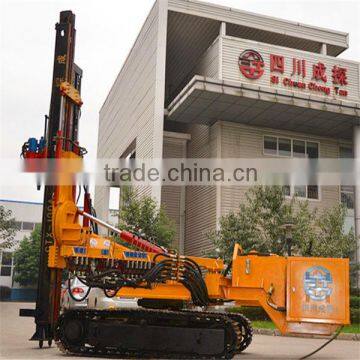

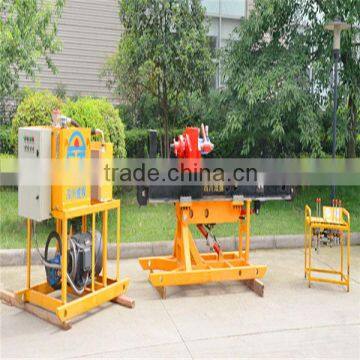

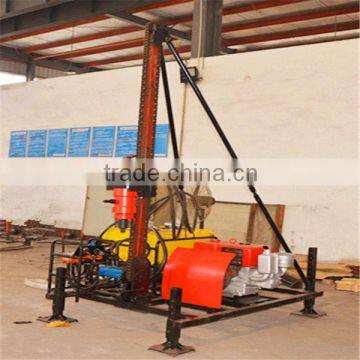

Help CenterCTS-100A Type Hydraulic Anchor Drilling Machine
Related Products
-
China High Wear-resistance Threaded Cross BitUS$ 10 - 83.4MOQ: 1 Piece -
Low Pressure Down-the-hole Drilling BitsUS$ 69 - 9,487.5MOQ: 1 Piece
-
Threaded Rock Bits T45US$ 6 - 231MOQ: 1 Piece
-
2014 Top Selling Top Effective Rock Drill Chisel BitUS$ 5.4 - 8.5MOQ: 50 Pieces
-
PDC Drill Bits for Mining and QuarryingUS$ 65 - 84MOQ: 1 Piece
Specifications
Specifications1.35-100m depth;90-230mm diameter
2.Full hydraulic control
3.Walking speed:2.0km/h
1) Hole Depth ..............................................................................................100~35m
2) Hole Diameter ......................................................................................... φ90-230 mm
3) Drill Rod Standard ................................................................................... φ73×1500 mm
... ...............................................................................φ89×1500
4) Power Head Rotation Speed (forward / reverse) ..........................................48rpm
5) Power Head Max Output Torque ............................................................... 6500Nm
6) Power Head Lifting Capability............................................................ 30kw
7) Mast Sliding Compensating Stroke ........................................................... 400 mm
8) Height range of horizontal hole ................................................................. 2100~3000mm
9) Turning Range of Platform ...............................................................left 90° / right 20°;
............................................................. or right 90° / left 20°
10) Climbing Ability ............................................................................... 20°
11) Engine Power (Either One)
Electromotor ................................................................................... 37 kW
iesel ............................................................................................. 71 kW
12) Overall Dimension (Reduce Type) .........................................About 6150×2000×2400mm
13) Total Weight .. ....................................................................About 6000kg
14) Optional Parts:
1) 1.1 Ton Hydraulic Winch / Tools Hoist (with Crown Pulley)
2) Wet Mode Dust Cleaner Device
3) Lineate Remote Moving Control Device
4) Safety Emergency Stop Switch
