Specifications
1.CE certificate2.Working in 3.8m width,200mm depth
3.Trailed by 120-160HP tractor
4.Disc no.32,dia.660mm in Mn65 steel

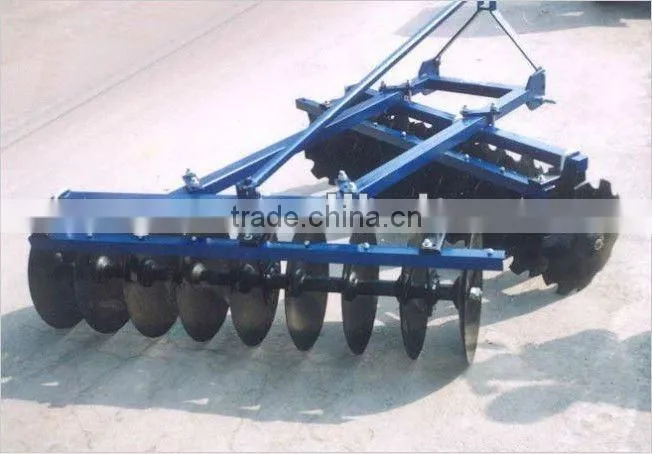

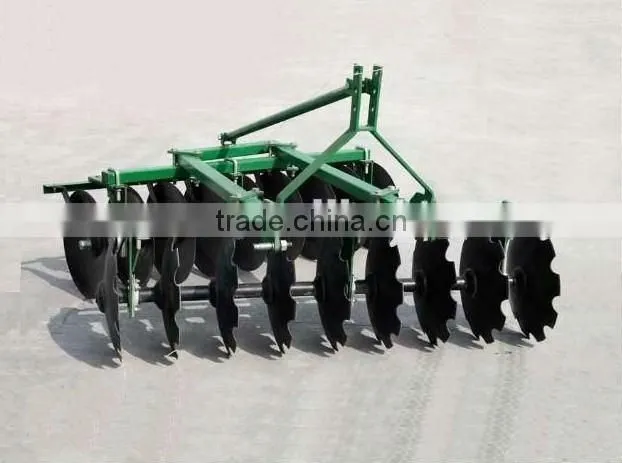

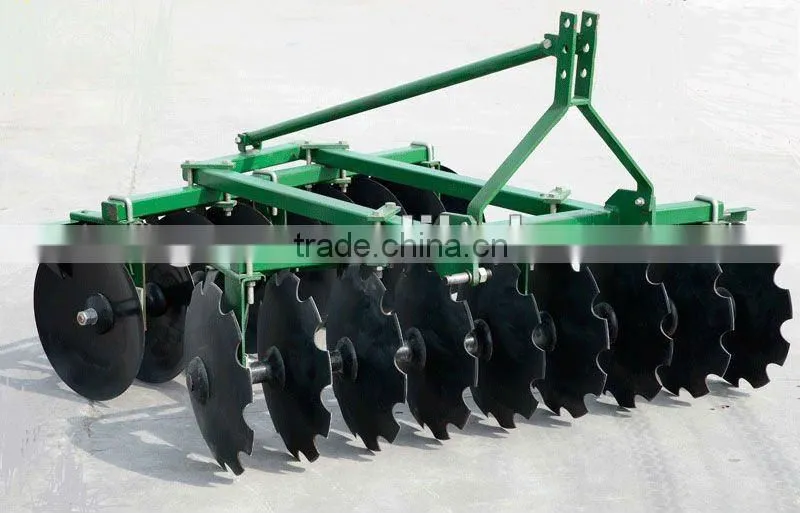

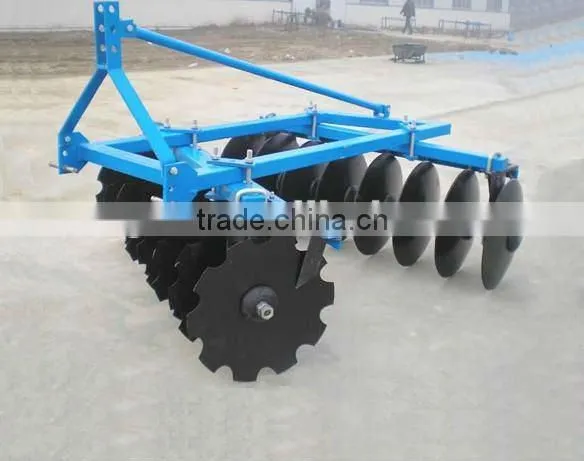

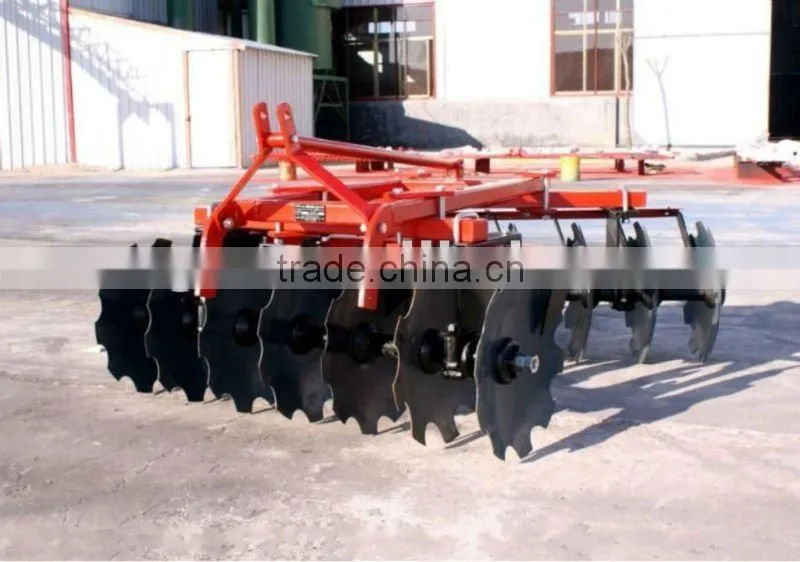

1BJX Mounted Medium Disc Harrow with CE certificate
Description:
1BJX medium mounted harrow is suitable for the operations such as soil crushing after plowing,presowing plowing, chessom,clay fertilizer blending, stubbing in the light soil, etc. The harrow has the advantages of reasonable structure,firmness and durability, convenient use, easy maintenance,great capacity of soil piercing and crushing, leveled field surface after plowing, etc.
Main Specifications:
Model |
unit |
1BJX-1.8 |
1BJX-2.0 |
1BJX-2.2 |
1BJX-2.4 |
1BJX-2.5 |
|
Working width |
M |
1.8 |
2.0 |
2.2 |
2.4 |
2.5 |
|
Working depth |
mm |
140 |
140 |
140 |
140 |
140 |
|
Q’ty of disc |
|
16 |
18 |
20 |
22 |
24 |
|
Disc diameter |
mm |
560(610) |
560(610) |
560(610) |
560(610) |
560(610) |
|
Total weight |
kg |
390 |
434 |
463 |
604 |
760 |
|
Matched power |
hp |
45 |
50 |
55~65 |
65~75 |
80 |
|
Linkage |
Standard three-point mounted |
||||||
