Belt Screw-type Compressor

Name: Belt Screw-type Compressor
Brand: Shengyi
SKU: 124307145
Availability: InStock

Shanghai Shengyi Air Compressor Company Limited

US$ 4,000 - 4,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Shanghai, China

Brand Name Shengyi

Model Number GRF-30DYC

Voltage Customer's Requirement)

Dimension(L*W*H) 1100*880*1300

Weight 740kg

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

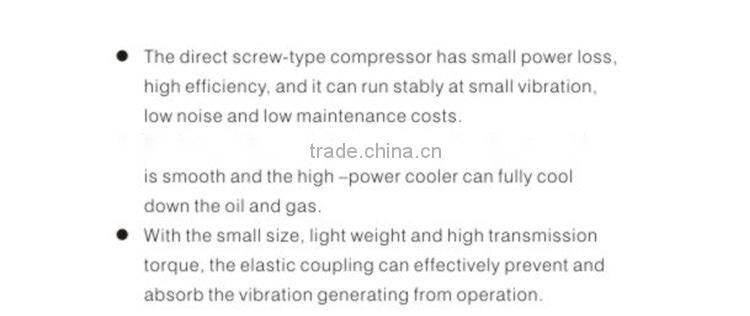

Characteristics

Parameter List

Model	Displacement/Exhaust pressure (m³/min/bar)	power (kw)	Weight (kg)	Outlet diameter	db (A)	Dimension(mm)LWH
7.5	1.2-7 1.1-8 1.0-10 0.8-13	7.5	242	G3-4	62±2	800625815
7.5	1.2-7 1.14-8 1.0-10 0.8-13	7.5	350	G3-4	62±2	11206001420
11	1.7-7 1.6-8 1.4-10 1.1-13	11	360	G3-4	63±2	800625810
11	1.7-7 1.6-8 1.4-10 1.1-13	11	360	G3-4	63±2	112060014200
15	2.6-7 2.4-8 2.1-10 1.6-13	15	550	G3-4	63±2	10507751050
18.5	3.0-7 2.8-8 2.6-10 1.9-13	18.5	550	G3-4	63±2	10507751050
22	3.6-7 3.4-8 3.1-10 2.7-13	22	676	G1	65±2	110010001250
30	5.2-7 5.0-8 4.5-10 3.7-13	30	736	G1	65±2	110010001250
37	6.6-7 6.4-8 5.6-10 4.6-13	37	940	G1 1-2	65±2	130010001470
45	8.0-7 7.6-8 7.0-10 5.8-13	45	1089	G1 1-2	68±2	130010001470
55	10.3-7 10.0-8 8.5-10 7.5-13	55	1397	G2	68±2	170014001550
75	13.6-7 12.4-8 11.1-10 10.0-13	75	1600	G2	72±2	170014001550
