High Quality Dry, Oil-free Screw Compressor System Class

Name: High Quality Dry, Oil-free Screw Compressor System Class
Brand: Shengyi
SKU: 124306947
Availability: InStock

US$ 4,000 - 4,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

Shanghai Shengyi Air Compressor Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Shanghai, China

Brand Name Shengyi

Model Number GRF-30DYC

Voltage Customer's Requirement)

Dimension(L*W*H) 1100*880*1300

Weight 740kg

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

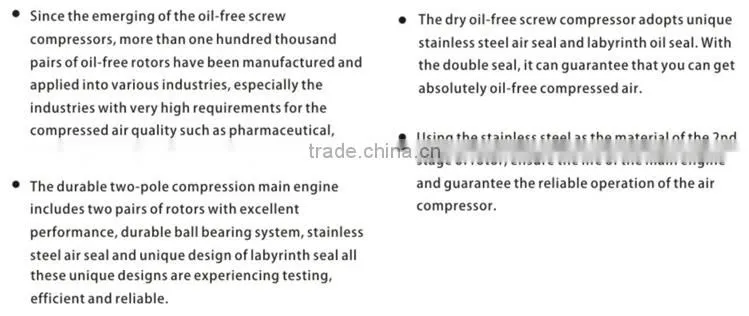

Characteristics

Parameter List

Model	Displacement/Exhaust pressure (m³/min/bar)	power (kw)	Weight (kg)	Outlet diameter	Dimension (mm)LWH
GRF-50GS	6.15-7 5.3-8 5.1-10 4.5-11.5	37	1800	G1 1/2″	220016001880
GRF-75GS	10-7 8.95-8 7.9-10 707-11.5	55	2200	G2″	251018801880
GRF-100GS	13-7 12.1-8 11-10 10.4-11.5	75	2500	G2″	251018801880
GRF-120GS	16-7 15.6-8 13-10 12.8-11.5	90	2800	DN65	290019601860
GRF-150GS	20-7 19.3-8 18.1-10 15.8-11.5	110	3200	DN65	290019601860
GRF-175GS	24.5-7 22.8-8 20-10 18.5-11.5	132	3500	DN80	290019601860
GRF-220GS	28.9-7 26-8 24.7-10 22.8-11.5	160	3800	DN80	290019601860
GRF-300GS	41.3-7 37-8 34.6-10 32-11.5	220	4200	DN100	290019601860
GRF-350GS	45-7 44.5-8 37-10 34-11.5	250	4800	DN125	320020002100
