Home > Industrial Equipment & Components > Compressor > Compressor Unit > Inverter Compressor With Higher the Speed

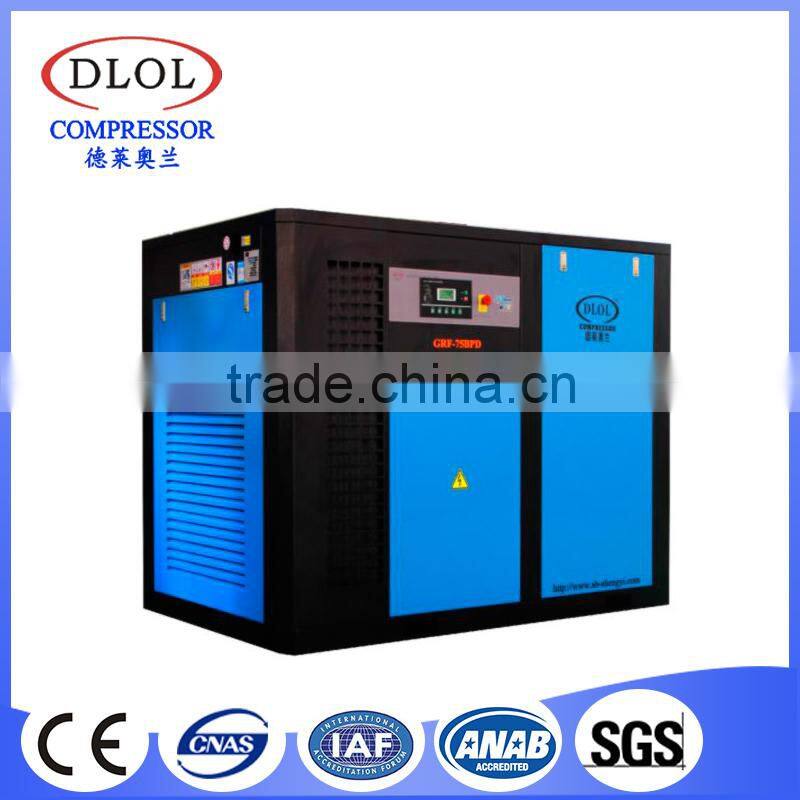

Inverter Compressor With Higher the Speed

Name: Inverter Compressor With Higher the Speed
Brand: Shengyi
SKU: 124306145
Availability: InStock

US$ 3,500 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

Shanghai Shengyi Air Compressor Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Shanghai, China

Brand Name Shengyi

Model Number GRF-30DYC

Voltage Customer's Requirement)

Dimension(L*W*H) 1100*880*1300

Weight 740kg

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

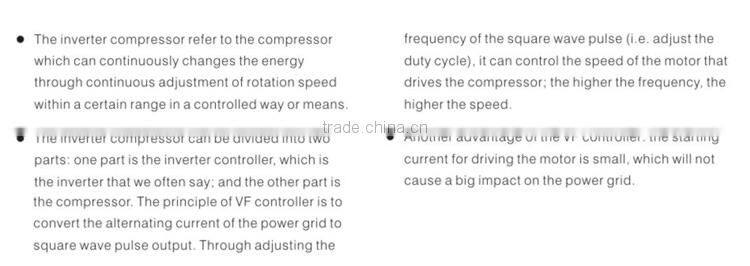

Characteristics

Parameter List

Model	Displacement/Exhaust pressure (m³/min/bar)	power (kw)	Weight (kg)	Outlet diameter	db (A)	Dimension (mm)LWH
GRF-30BPD	3.6-7 3.4-8 3.1-10 2.7-13	22	820	G1	63±2	128010001100
GRF-50BPD	6.6-7 6.4-8 5.6-10 4.6-13	37	1100	G1-2	63±2	158011001300
GRF-75BPD	10.3-7 10.0-8 8.5-10 7.5-13	55	1600	G2	65±2	200012801600
GRF-100BPD	13.6-7 12.4-8 11.1-10 10.0-13	75	1850	G2	68±2	200012801600
GRF-120BPD	16.1-7 15.3-8 14.0-10 11.0-13	90	2300	G2	68±2	225013301650
GRF-150BPD	20.0-7 19.6-8 17.5-10 13.5-13	110	3000	G2	72±2	225013301650
GRF-175BPD	23.5-7 22.5-8 21.0-10 17.0-13	132	3300	DN65	72±2	270016001800
GRF-220BPD	27.7-7 26.7-8 24.7-10 20.3-13	160	3600	DN80	72±2	270016001800
GRF-250BPD	32.0-7 30.0-8 28.8-10 23.6-13	185	3900	DN80	72±2	270016001800
