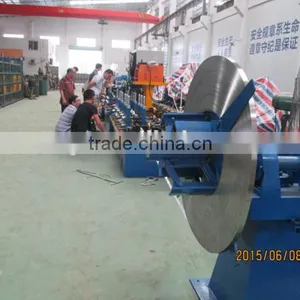

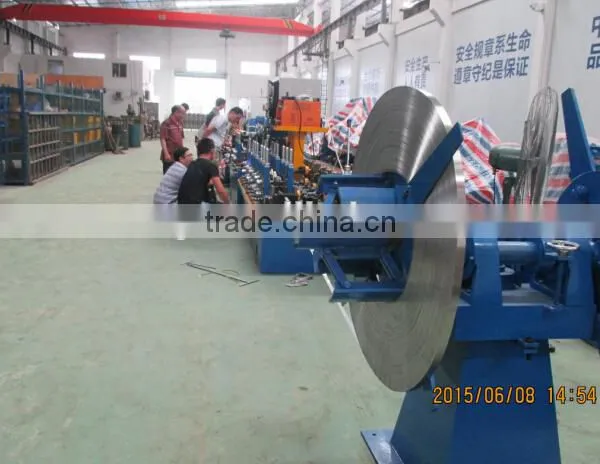

Help CenterZG60 Pipe Mill
Related Products
Item I.Components of the tube making machine:
1. Single-way uncoiler, can loading weight 3T.
2. Forming unit:
(1) Feeding holder, 2 sets.
(2) Double column type vertical holders, 7 sets. The main axle uses the 40Cr, and with tempering, high frequency quench, accurate grinding, rust prevention. The holders are use HT200 material.
(3) Horizontal type holder, 7 sets. The main axle uses the 40Cr, and with tempering, high frequency quench, accurate grinding, rust prevention. The holders are use HT200 material.
(4)ZP-60: Horizontal axis is OD 60mm, vertical axis is OD 30mm, straightener frame axis isOD 30mm.
(5) Spiral gear box drive system, 1 set.
(6) Base, 1 set:
(7) 212 universal drive shaft connecting for cars.
3. Welding system:
(1) TIG welder, 1set .
(2) Welding device, the thickness is below 2.5mm.
4. Rubbing equipment for the outside welding line
(1) Rubbing heads, 3 sets
(2) Base, 1 set
(3) Vertical holders, 2 sets
5. Cleaning Equipment for pipe:
(1) Water cycle pipe, 1 set.
6. Sizing and straightening machine:
(1) Vertical holders, 4 sets.
(2) Horizontal type holders, 4 sets.
(3) Straightening head, 1 set
(4) Spiral gear box drive system, 1 set.
(5) Drive motor, 1 set
7. Automatic set feed and cut off system, 1 set.
(1) Atmospheric control system, 1 set.
(2) Metal saw cutting head, 1 set.
(3) Cutting barrow, 1set.
(4) Box cutting unit.
8. Finished frame, 1 set.
9. Electrical control system:
(1) Electrical control system for the pipe machine, 1 set.
(2) Stop button.
10. Rank for the machines:
VHVHVHVVVHVHVHVVH QVQVQ HVHVHVH(TH1 TH2)V
V: vertical H: horizontal Q: rubbing head TH: straightening frame
Item II. Delivery place: Tianjin port of China.
Item III. Terms of payment: 30% TT in deposit, 70% TT before shipment.
Item IV. Delivery time: After receiving deposit, the production will begin and delivery time is 50 days.
Item V. Warranty: Seller provides one year limited warranty on equipment.
Item VI. Terms of acceptance and the Installation and debugging.
1. Installation place: all over the world. .
2. The seller will be in charge of installation, the buyer should bear the costs of lodging and food and round-trip expenses for the seller.
3. Labor charge for 80USD/Person/day.
