Commodity: ERW pipe production line
I. Brief introduction:
60mm welded pipe production line is designed to produce welded pipes of 20mm-60mm in OD and 0.8mm-3.5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 20mm-60mm Thickness: 0.8mm-3.5mm
Square tube: 20mm×20mm 50mm×50mm, Thickness: 0.8mm-2.5mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
Direction :
left to right or right to left from operator`s side decided by customers.

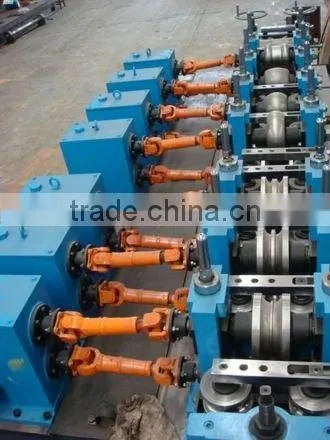

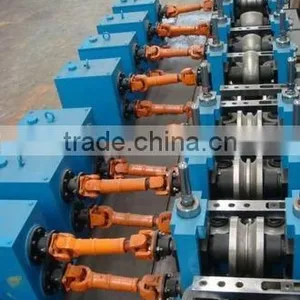

III. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
