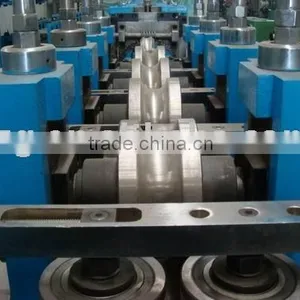

Help CenterERW89 Pipe Mill
Related Products
-
ERW Pipe Production LineUS$ 130,000 - 150,000MOQ: 1 Set -
HG50 ERW Tube MillUS$ 120,000 - 130,000MOQ: 1 Set
-
ERW Steel Tube Making MachineUS$ 500,000 - 600,000MOQ: 1 Set
-
ERW Tube Mill for 355mmUS$ 500,000 - 600,000MOQ: 1 Set
-
HG219 ERW Steel Tube Making MachineUS$ 1,150,000 - 1,450,000MOQ: 1 Set
Commodity: ERW pipe mill
I. Brief introduction:
89mm welded pipe production line is designed to produce welded pipes of 42mm-89mm in OD and 1.5mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
Circular Pipe Size |
42mm - 89mm |
Pipe Thickness |
1.5mm-4.5 mm |
Square Pipe Size |
32mm*32mm-70mm*70mm |
Pipe Thickness |
1.5mm-3.5 mm |
Material |
Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80 |
Pipe Length |
6-12m |
Length Tolerance |
±3mm |
Mill Speed |
20-70 m/min |
Direction |
From left to right or decide by your side. |
Electricity Input Power |
Belong to confidential information,detail parameters will be known in the quotation list. |
Workshop Area | |
Tube Bottom Passline |
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
