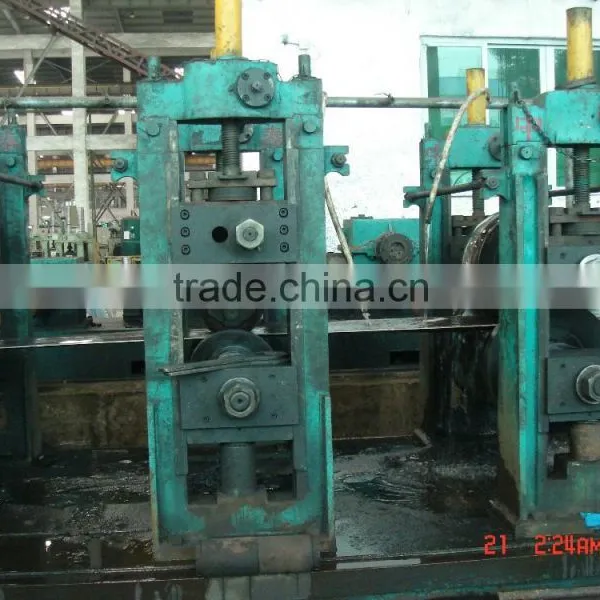

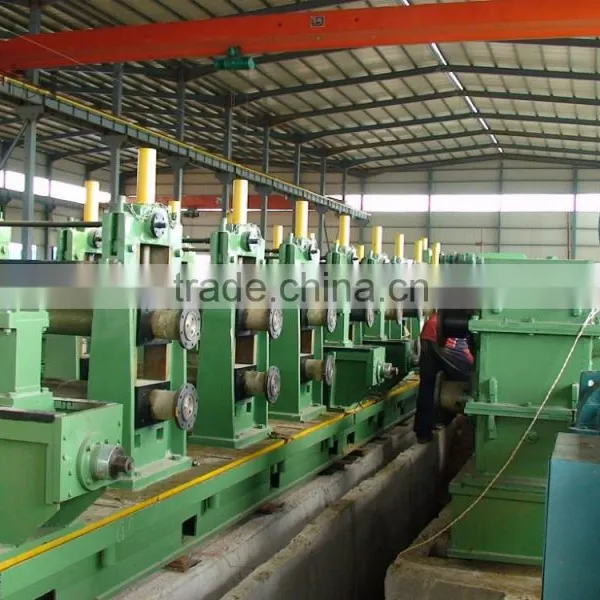

Help CenterERW273 Pipe Making Machine
Related Products
ERW273mm welded pipe production line is designed to produce welded pipes of 89mm-273mm in OD and 3mm-10mm in wall thickness, as well as corresponding square and rectangle tube.
Basic Technical Information:
Pipe OD |
89mm-273mm |
Thickness |
3mm-10mm |
Square & rectangle tube |
70mm*70mm-200mm*200mm |
Thickness |
3.0mm-8.0mm |
Length |
6 -12m |
Length Tolerance |
±3mm |
Material |
HR & CR Carbon steel coil(GB Q195∼Q345 / API∼X80) |
Width |
265mm-750mm |
Thickness |
3mm-10mm |
Coil ID |
600-800mm |
Coil OD |
Max 2000mm |
Coil Weight |
8t |
Production Speed |
10-40 m/min |
Capacity |
30,000ton/year |
Direction |
left to right or right to left from operator`s side decided by customers. |
Motor |
Forming 185KW*2; Sizing 185KW |
Diameter of horizontal roll shaft |
170mm |
Diameter of Vertical roll shaft |
120mm |
Reducer ratio |
Spiral gear m=11; Cylindrical gear, m=10; |
Electricity Input Power |
2600 kw |
Line Area |
130m(length)*21m (width) |
Tube Bottom Passline (Above floor level) |
950 mm |
Weight |
about 100t |
