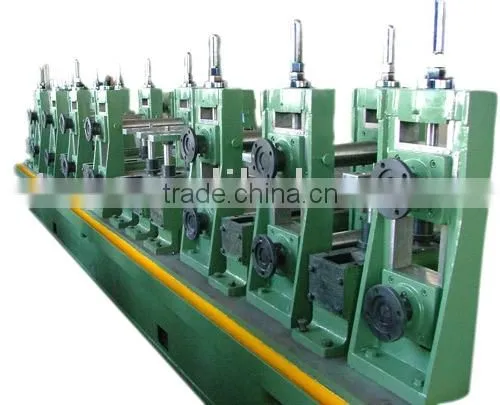

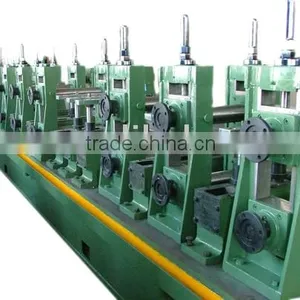

Help CenterHG 508 ERW Steel Pipe Mill
Related Products
Commodity: ERW Steel Pipe Mill For HG508
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: Φ219mm-Φ508mm
wall thickness :3mm-8mm
II. Square and rectangle tube : 175*175mm-400*400mm
wall thickness range 4-14mm
III .Tube and pipe length: 6-12m
2. Material Specifications:
Low carbon steel and low alloy steel:
δb≤550Mpa
δs≤235Mpa
3 Line specification
production speed:0-25m/min
Line Direction: right to left(frome operator' s side)
Remark:
To protect confidential information, Here only show basic parameters. Detailed parameter will be known in the quotation list or negotiate with customer.
