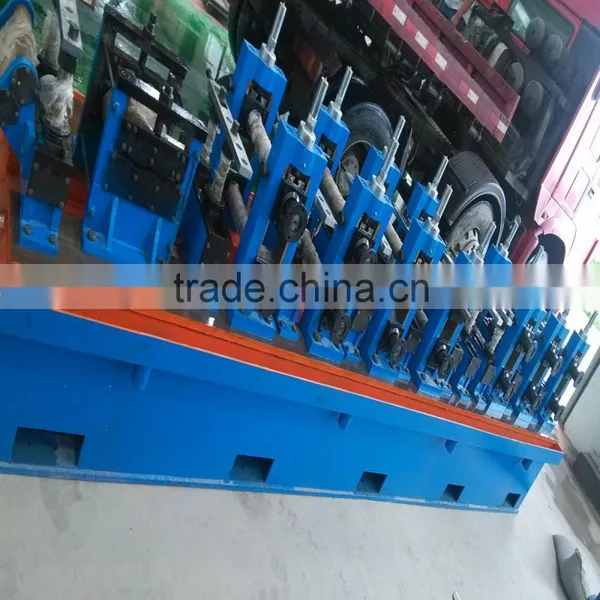

Help CenterERW165 Pipe Making Machine
Related Products

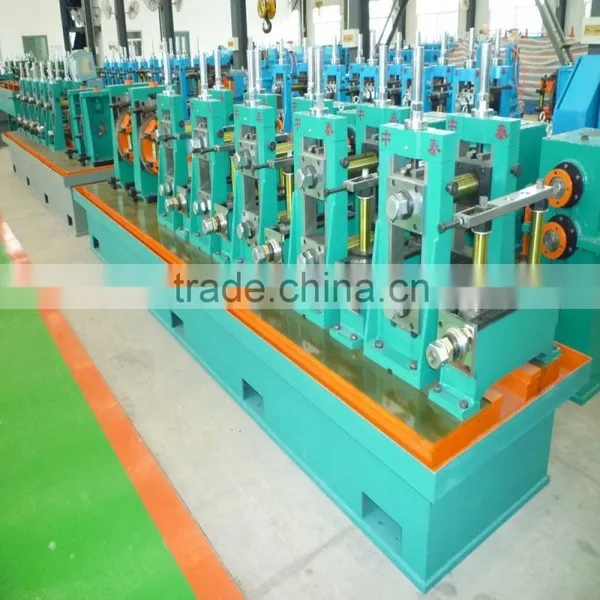

ERW165mm welded pipe production line is designed to produce welded pipes of 76mm-165mm in OD and 2.0mm-6.0mm in wall thickness, as well as corresponding square and rectangular tube. II. Basic Technical Information:
Specification of pipes
Pipe OD |
76mm-165mm |
Thickness |
2.0mm-6.0mm |
Square tube |
60mm×60mm 130mm×130mm |
Thickness |
2.0mm-5.0mm |
Length |
6 -12m |
Length Tolerance |
±3mm |
Material |
Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80 |
Width |
65mm-520mm |
Thickness |
2.0-6.0mm |
Coil ID |
580-700mm |
Coil OD |
Max 1800mm |
Coil Weight |
6t |
Production Speed |
10-50 m/min |
Direction |
left to right or right to left from operator`s side decided by customers. |
Capacity |
30,000ton/year |
Electricity Input Power |
1800 kw |
Line Area |
90m(length) ×10m (width) |
Tube Bottom Passline (Above floor level) |
850 mm |
Weight |
about 54t |
