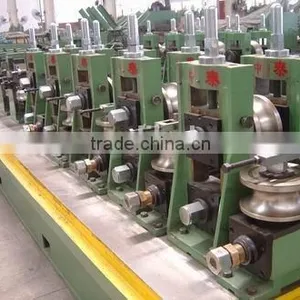

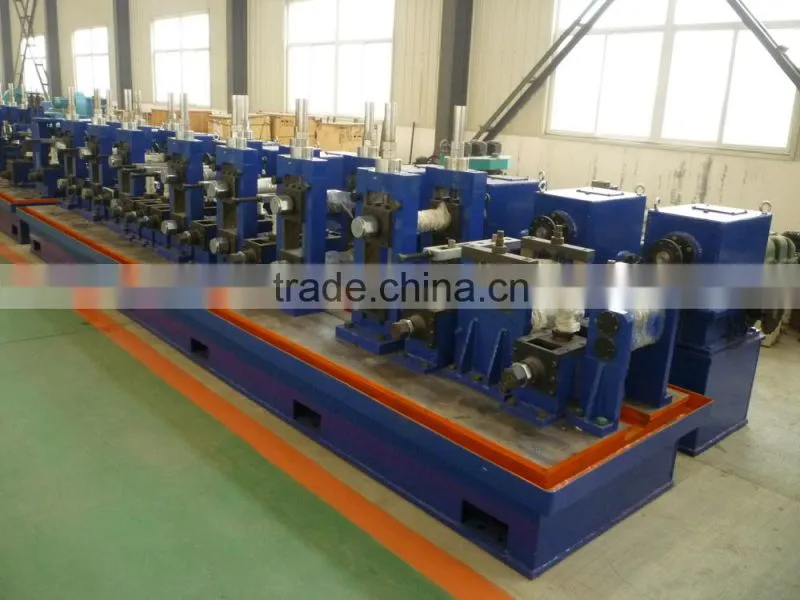

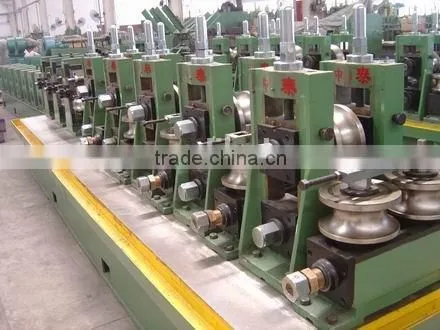

ERW76 Pipe Making Machine
US$ 100,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Mill
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Pipe Mill
Pipe Material
Carbon Steel
Application
Other
Place of Origin
Hebei, China
Brand Name
ZTZG
Model Number
ERW76x4
Power(W)
500kw
Dimension(L*W*H)
70x5m
Weight
25t
Certification
ISO9001
Warranty
1 year after commissioning
After-sales Service Provided
Engineers available to service machinery overseas
ERW76 welded pipe making machine is used to manufacture welded steel pipes of Φ20mm-Φ76mm with 1.5mm-4.0mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes.
Specifications
Round pipe diameter range |
20-76mm |
wall thickness |
1.5mm-4.0mm |
Square and rectangle tube |
25*25mm-60*60mm |
wall thickness range |
1.5-3.0mm |
Tube and pipe length |
6--12m |
Material Specifications |
Low carbon steel and low alloy steel: δb≤500Mpa δs≤235Mpa |
Strip width |
65 - 240 mm |
strip thickness |
1.5-4.0mm |
inner diameter |
Φ480-600mm |
outer diameter |
900-1300mm |
Coil weight max |
2.5t |
production speed |
0-70m/min |
Line Power |
800kW |
Line Direction |
right to left(from operator' s side) |
