ERW32 Pipe Making Machine

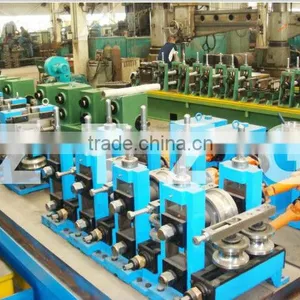

ERW32 Pipe Making Machine thumbnail-1

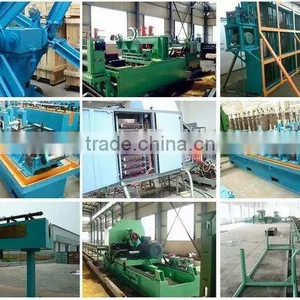

ERW32 Pipe Making Machine thumbnail-2

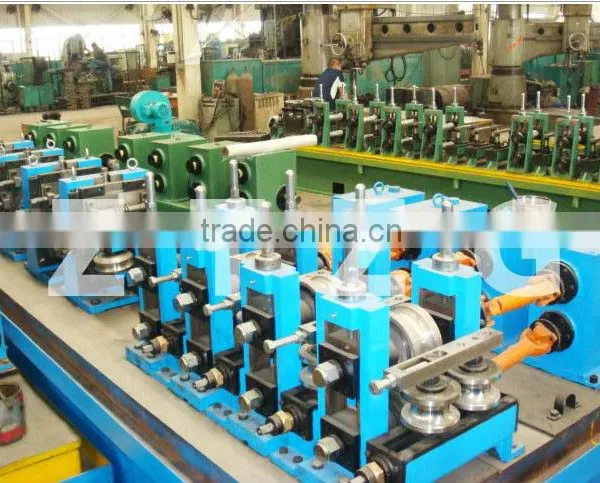

ERW32 Pipe Making Machine photo-1

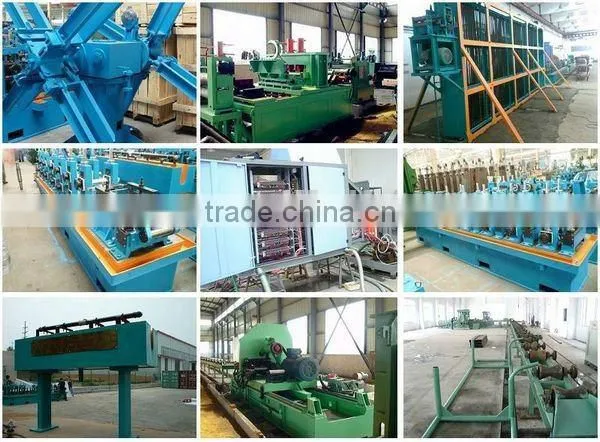

ERW32 Pipe Making Machine photo-2
US$ 100,000 - 130,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Mill
Pipe Material:
Carbon Steel
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Pipe Mill
Pipe Material Carbon Steel
Application Other
Place of Origin Hebei, China
Brand Name ZTZG
Model Number ERW32x2
Power(W) 240kw
Dimension(L*W*H) 45*4m
Weight 20t
Certification ISO9001
Warranty 1 year after commissioning
After-sales Service Provided Engineers available to service machinery overseas

ERW32mm  welded pipe making machine is designed to produce welded pipes of 10mm-32mm in OD and 0.6mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.



Its  Basic Technical Information:



Pipe OD: 10mm-32mm

 Thickness: 0.6mm-2.0mm

Square tube: 10mm×10mm -25mm×25mm

Thickness: 0.6mm-1.5mm

Length: 6 -12m

Length Tolerance: ±3mm

Material

Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

Width

36mm-150mm

Thickness

0.6-2.0mm

Coil ID: 450-520mm

Coil OD: Max 1200mm

Coil Weight

1t

Production Speed

20-80 m/min

Direction

left to right or right to left from operator`s side decided by customers.

Electricity Input Power

270 kw

Line Area

40m(length) ×3.8m (width)

Weight

about 8t

The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing

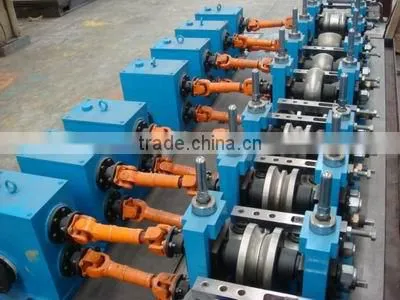

ERW32 pipe making machine
