Specifications
Commodity:HG140 HF welded tube millIt can produce round square rectangular and profiled pipe with OD 60-140mm thickness 2-5mm
Commodity:HG140 HF welded tube mill

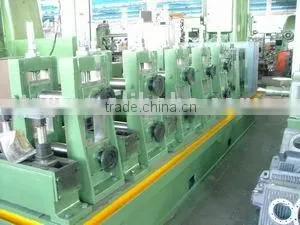

HGΦ140 high frequency longitudinally welded tube mill line is used to manufacture welded steel pipes of Φ60mm-Φ140mm with 2mm-5mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production lines are both economical and practical.
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: 60-140mm
wall thickness :2mm-5.0mm
II. Square and rectangle tube : 50*50mm-130*130mm
wall thickness range 1.5-4.0mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3 Line specification
production speed:0-60m/min
Line Direction: right to left(from operator' s side)
