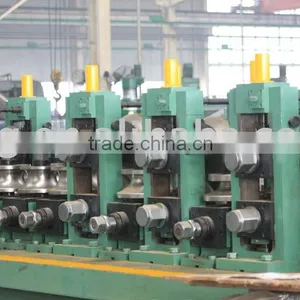

Help CenterHG89 Tube Making Machine
Related Products
Specifications
HG89 Tube Making machine1) Pipe Thickness:1.5mm-4.5mm
2) Size:42mm - 89mm
3) Pipe Length:6-12m
Commodity: Tube Making Machine
I. Brief introduction:
89mm welded pipe production line is designed to produce welded pipes of 32mm-89mm in OD and 1mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
Circular Pipe Size |
42mm - 89mm |
Pipe Thickness |
1.5mm-4.5mm |
Square Pipe Size |
25mm*25mm-70mm*70mm |
Pipe Thickness |
1.5mm-3.5mm |
Material |
Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80 |
Pipe Length |
6-12m |
Length Tolerance |
±3mm |
Mill Speed |
20-70 m/min |
Direction |
From left to right or decide by your side. |
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)

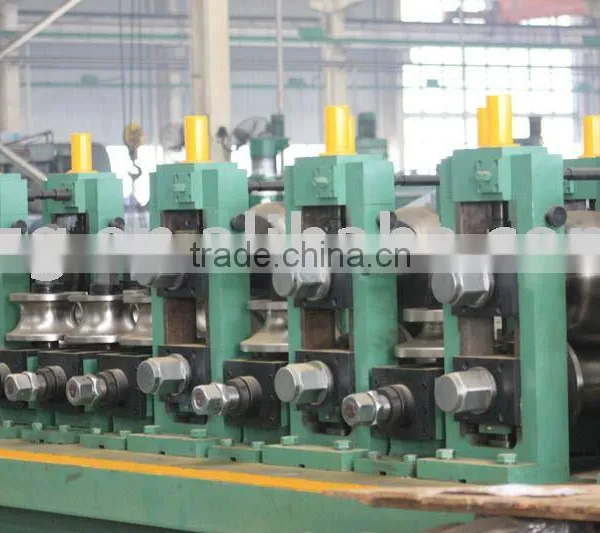

4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
