Specifications
Production: ERW165 carbon steel tube mill1. O.D: 60~165mm
2. Square&rectangular pipe: 45x45~130x130mm
3. Thickness:2~6mm
Product: ERW165 pipe making machines
I Description:
ERW165 welded pipe production line is designed to produce welded pipes of 60mm-
165mm in OD and 2.0mm-6.0mm in thickness, as well as corresponding square and rectangular tube.
II. Basic Technical Information:
Specification | |
Round Pipe |
O.D:60~165mm |
Thickness:2.0~6.0mm | |
Square&Rectangular pipe |
45X45~130X130mm |
Thickness: 2.0~5.0mm | |
Length |
Length: 6 -12m Length Tolerance: ±3mm |
2.Raw Material: Low carbon steel and low alloy steel
3. Tube mill
Production Speed : Max 60m/min
III. The technical flow of the production line
Scroll up - Uncoil - Shear&welder - Accumulator-Forming-High-frequency welder -Removing external burr - Cooling -Sizing - Cutting - Checking & Collecting - Binding -
Weighing - Marking - Accessing Warehouse
IV Make up
1. Uncoiler
2. Shear & Butt Welder
3. Accumulator

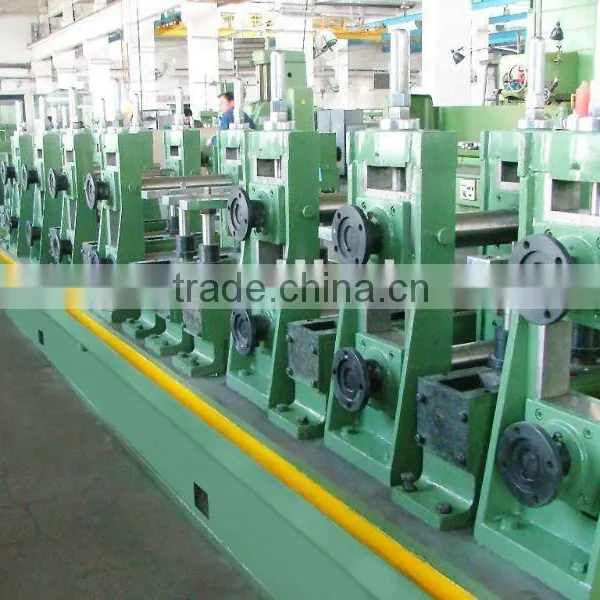

4. Tube mill
5. 500KW Solid State H.F. welder
6. CNC Flying Saw
7. Output Roll way
8. Rollers
Remark:
To protect confidential information, Here only show basic parameters. Detailed parameter will be
known in the quotation list or negotiate with customer.

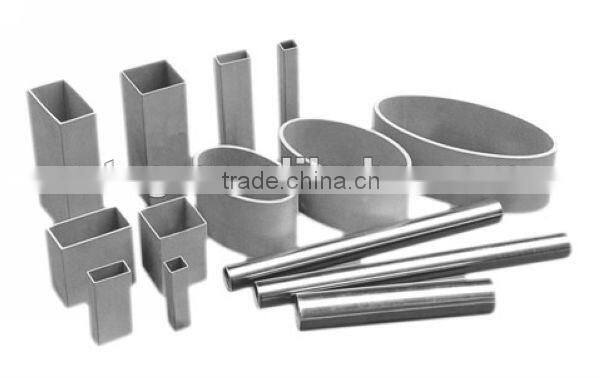

2 Finished product:
3 Company strength:
